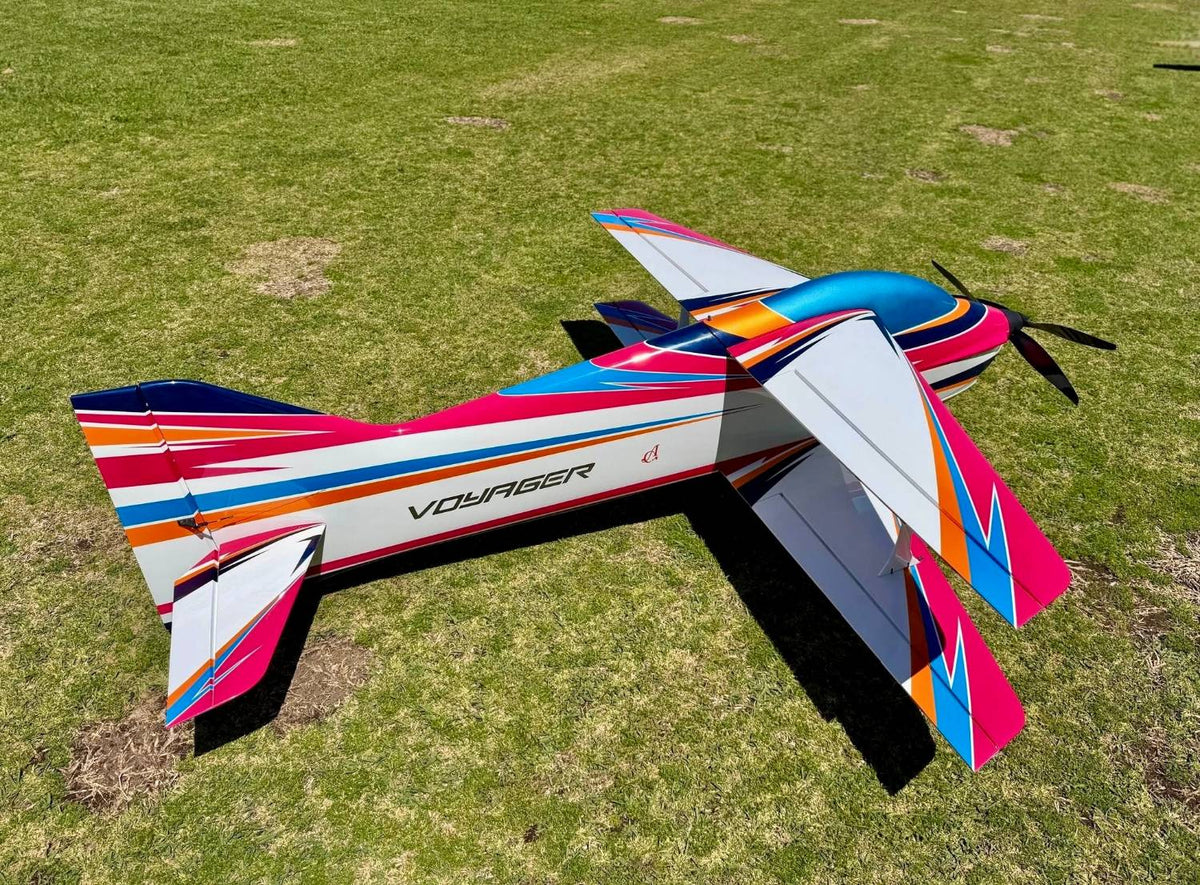

CA Model Voyager Bipe ARF in the standard scheme, side view

CA Model Voyager Bipe ARF Airframe

$7,575.00 AUD
$7,575.00 AUD
Skip to product information
CA Model Voyager Bipe ARF in the standard scheme, side view
  • CA Model Voyager Bipe ARF in the standard scheme, side view

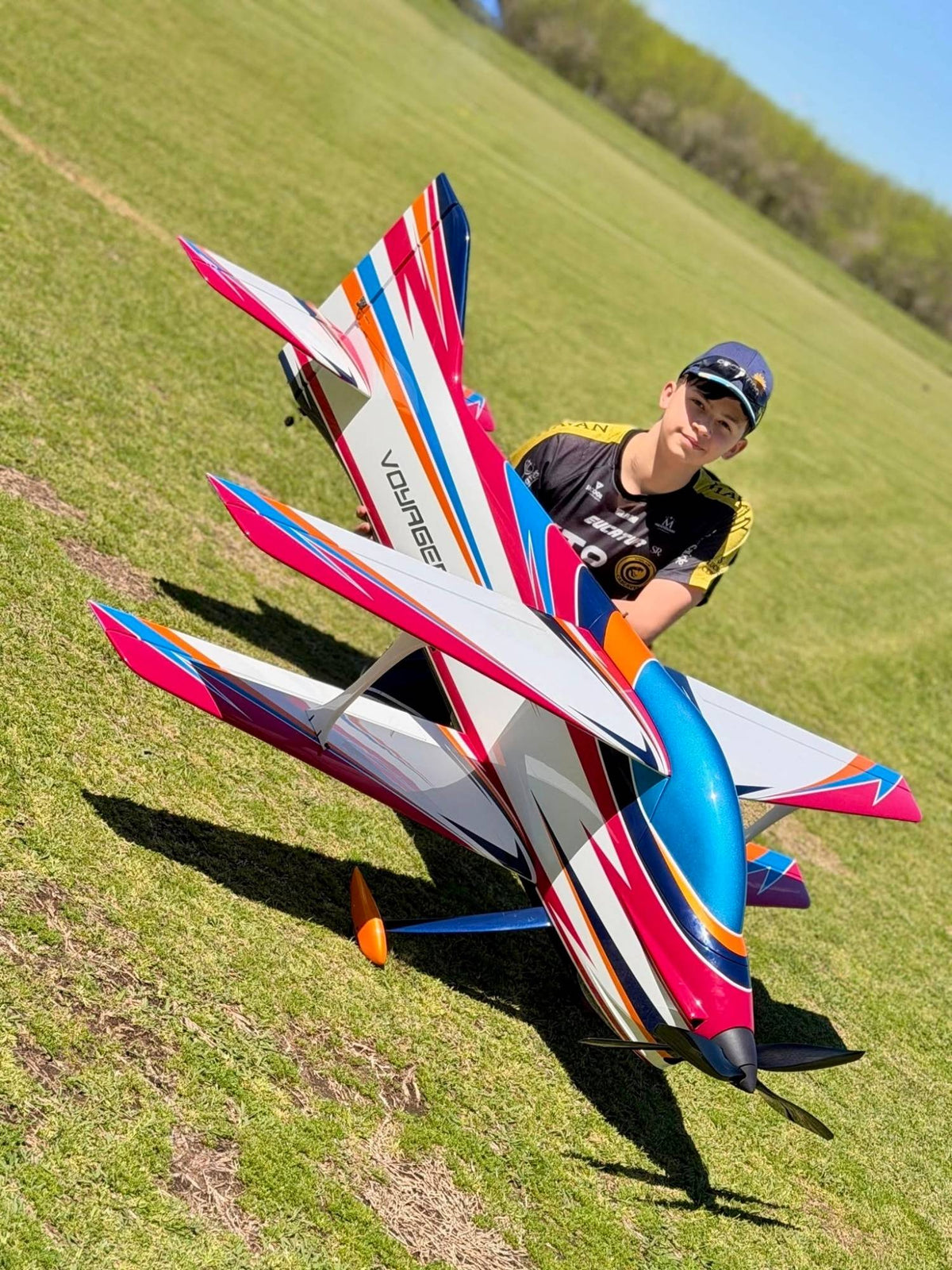

  • CA Model Voyager Bipe ARF, front three-quarter view

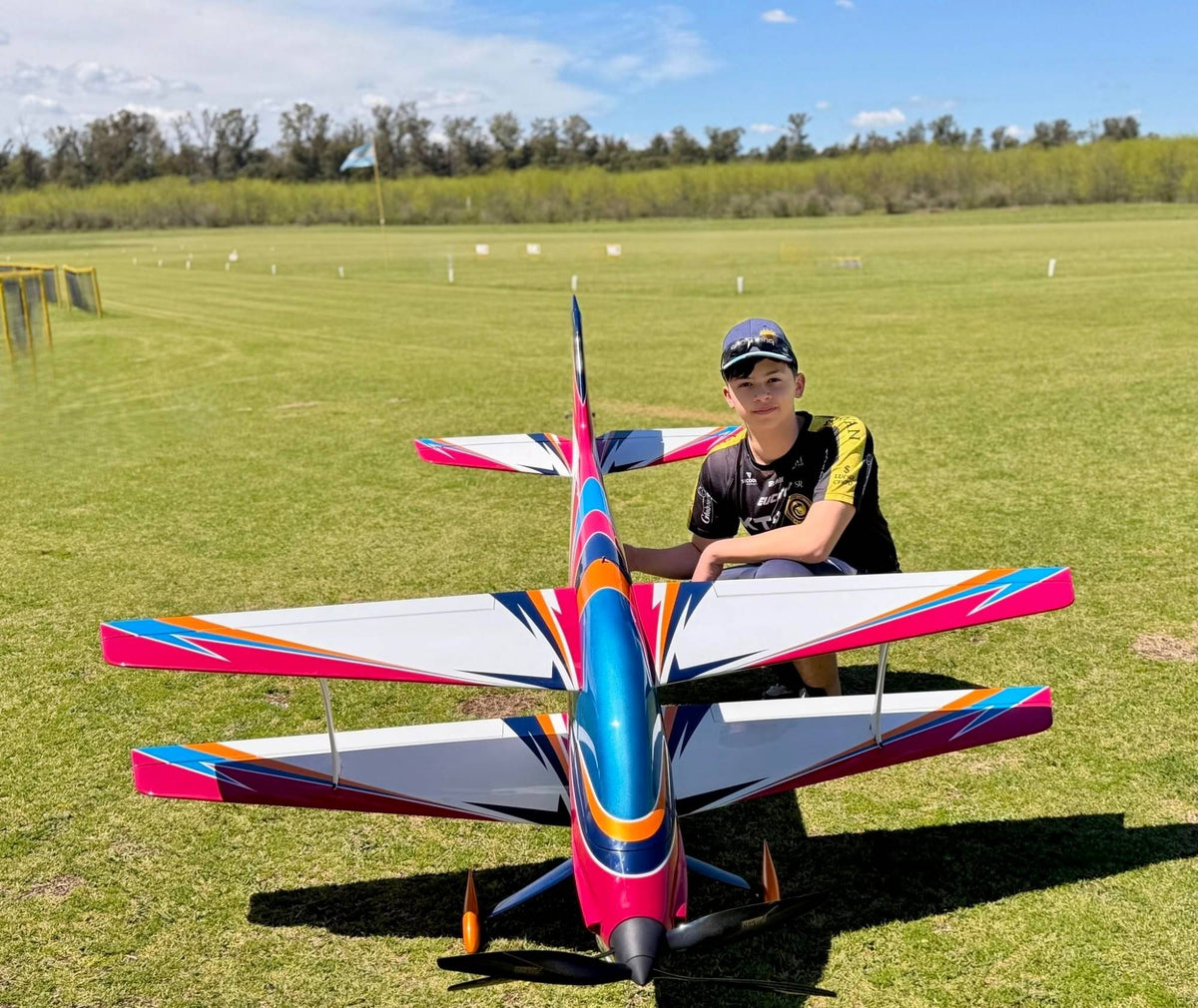

  • CA Model Voyager Bipe ARF, front view showing both wings and struts

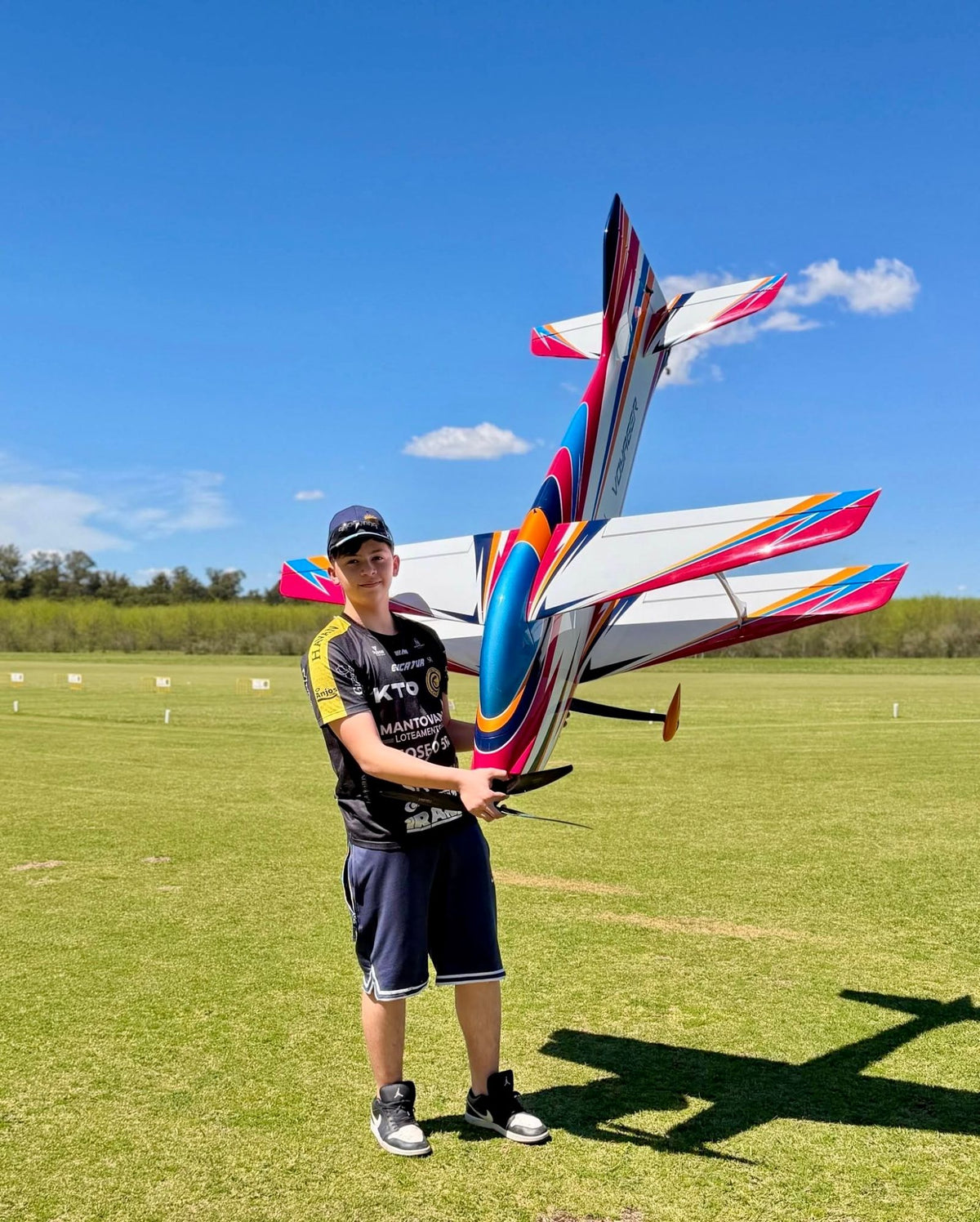

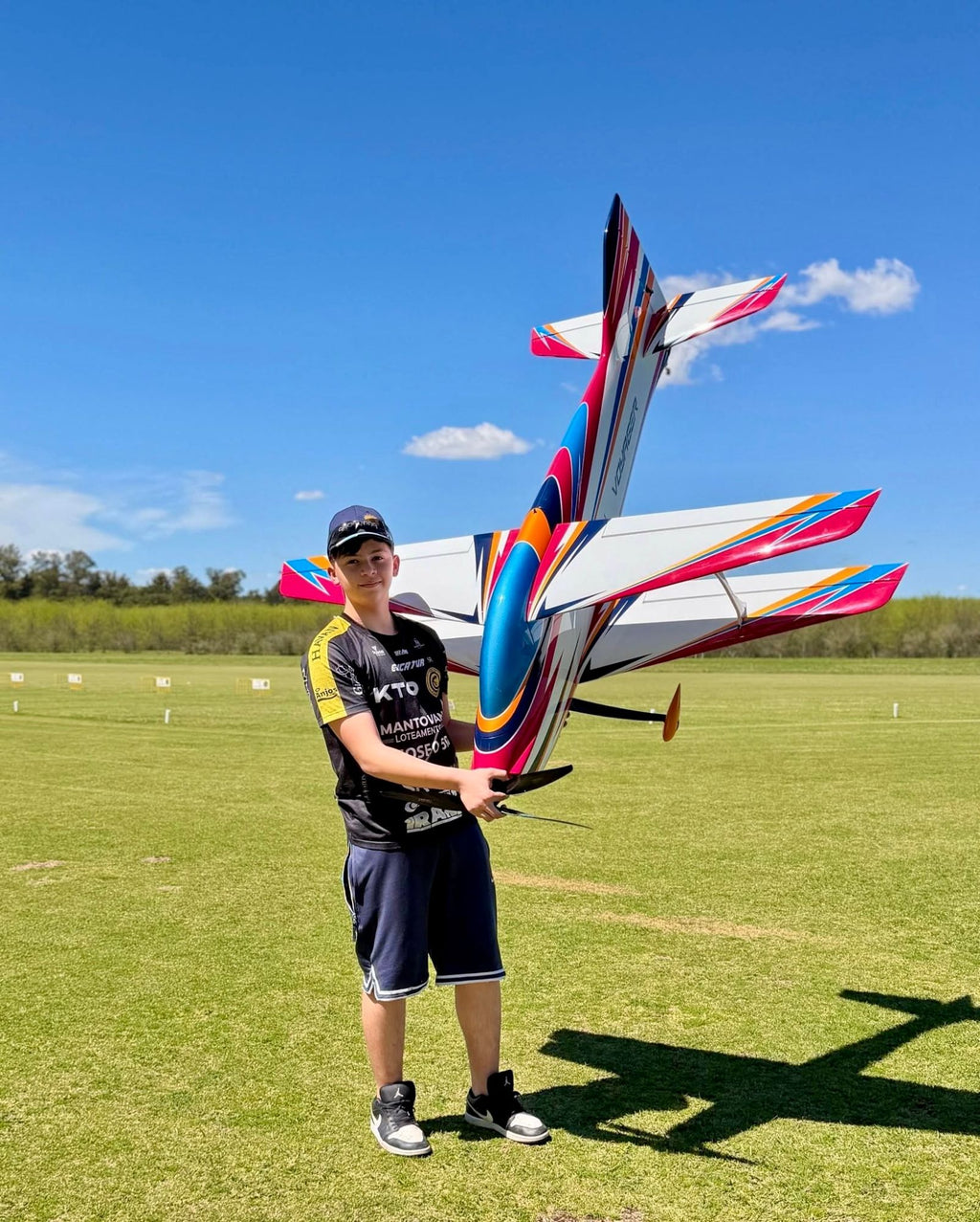

  • CA Model Voyager Bipe ARF held nose-down, showing the wing and tail layout
  • CA Model Voyager Bipe ARF Airframe
  • CA Model Voyager Bipe ARF in a custom scheme (example of a customer-chosen colour layout)
CA Model Voyager Bipe ARF Airframe
CA Model

CA Model Voyager Bipe ARF Airframe

$7,575.00 AUD
$7,575.00 AUD
Contact us to order

Airframes are supplied to order and travel by freight or change hands at a contest. Send us your model, scheme and timing and we'll sort delivery with you.

Prices in AUD, GST included for Australian orders.

Custom schemesCustom schemes or colour swaps are available.
Drive matchingTell us your drive system preferences and let us suggest a solution.
Supported in AustraliaBacked by pilots who fly the schedule
Putting the whole setup together?
Tell us the scheme, drive and radio gear you want and we'll quote it as one package.

The Voyager is CA Model's first full-composite airframe. Until now CA Model wings and stabs have been foam-cored and balsa-sheeted, or built up, and film-covered; on the Voyager every part is moulded composite and painted, wings and stabs included. It is an F3A biplane designed for Jason Shulman and AC Glenn, who flew it at the US Nationals, and it comes with all internal structure installed, centre-hinged in-mould control surfaces, a single-bolt wing attachment, carbon fibre stab tubes and quick-release interplane struts. It takes a single or contra drive with an 82 mm spinner.

Supplied as an ARF in CA Model's standard scheme, with an accessories bag. A custom scheme in your own colours and layout is available to order. Read the Voyager announcement in our news.

Key Features

Brand CA Model
Designed for Jason Shulman and AC Glenn
Type F3A biplane, ARF
Wingspan 69.5 in (1765 mm)
Length 78.7 in (1999 mm)
Net Weight 88.2 oz (2500 g)
Gross Weight 173-176 oz (4900-5000 g)
Construction Full composite, fully painted, wings and stabs included (CA Model's first full-composite design)
Control Surfaces Centre-hinged in-mould; ailerons and elevator/rudder detachable
Wing Attachment Single bolt
Stab Carbon fibre tubes, adjustable incidence
Interplane Struts Quick release
Power Options Single drive or contra drive
Spinner 82 mm
Servos Required Ailerons 4 × mini; elevator 2 × mini; rudder 1 × high torque
Country of Origin Argentina

What's included

  • Lightweight wheels with axles
  • Wheel pants
  • Carbon fibre main landing gear
  • Tail wheel assembly
  • Stab adjusters
  • Control horns (6)
  • Ball link set
  • Battery tray with carbon rods
  • Carbon fibre stab tube
  • Accessories bag

Setup

Wing incidence +0.5° on both wings. Stab incidence 0°, adjustable.

Not sure which drive and servos suit your Voyager? Send us your setup and we will advise.

Frequently asked questions

Does the Voyager suit a single or a contra drive?

Both. Tell us which you plan to run when you order and we will confirm the setup. Spinner size is 82 mm.
Can I have my own colour scheme?

Yes. Besides the standard scheme, CA Model will paint a custom scheme to your colours and layout; the average extra cost is about US$300. The striped blue, white and orange aircraft in the photos is an example. Contact us before ordering.
What servos does it need?

Four mini servos for the ailerons, two mini servos for the elevator, and one high-torque servo for the rudder.
What are the recommended incidences?

Wing incidence +0.5° on both wings; stab incidence 0°, adjustable.
Where is it made?

In Argentina, by CA Model.
