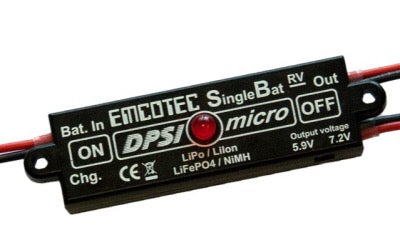

Emcotec DPSI Micro Single Battery Digi Switch 5.9V/7.2V 1-Pack
Emcotec DPSI Micro Single Battery Digi Switch 5.9V/7.2V 1-Pack
This compact LiPo regulator features a magnetic switch and selectable output voltage of 5.9V or 7.2V. It is suitable for 5/6 cell NiCad/NiMH, LiIon/LiPo, and LiFePo4 batteries, with programmable battery type and low voltage detection. The electronic on/off switch enables contactless operation with an external magnet. Designed for 5 to 10 servos, it supports 4A continuous and 25A peak current, ideal for small engine models up to 2 meters wingspan, gliders up to 3 meters, impeller jets, or helicopters. Connectors include a battery JR socket with 0.5 mm² silicone strand and dual JR/Uni outputs with gold-plated FCI contacts.
Key Features
| Brand | Emcotec |
| Model | DPSI Micro Single Battery |
| Output Voltage | 5.9V / 7.2V (selectable) |
| Continuous Current | 4A |
| Peak Current | 25A |
| Servo Capacity | 5 to 10 servos |
| Battery Compatibility | 5/6 cell NiCad/NiMH, LiIon/LiPo, LiFePo4 |
| Switching Type | Magnetic (contactless) |
| Input Connector | JR socket with 0.5 mm² silicone strand |
| Output Connector | Dual JR/Uni with 0.5 mm² silicone strand, gold-plated FCI contacts |
| Weight | 1.16 oz (33 g) |
| Product Type | Voltage Regulator / Power Switch |
How to use
Connect the battery to the input JR socket and the servos to the output JR/Uni connectors. Use the included magnet to switch the unit on or off by bringing it near the magnetic switch area. Program the battery type and low voltage detection via the device's programming feature.
What's included
- DPSI Micro Single Battery
- Switching magnet with Emcotec tag
- Screws
- Screwing collar
- Drilling template
- Vibration protection
- Quick reference guide
