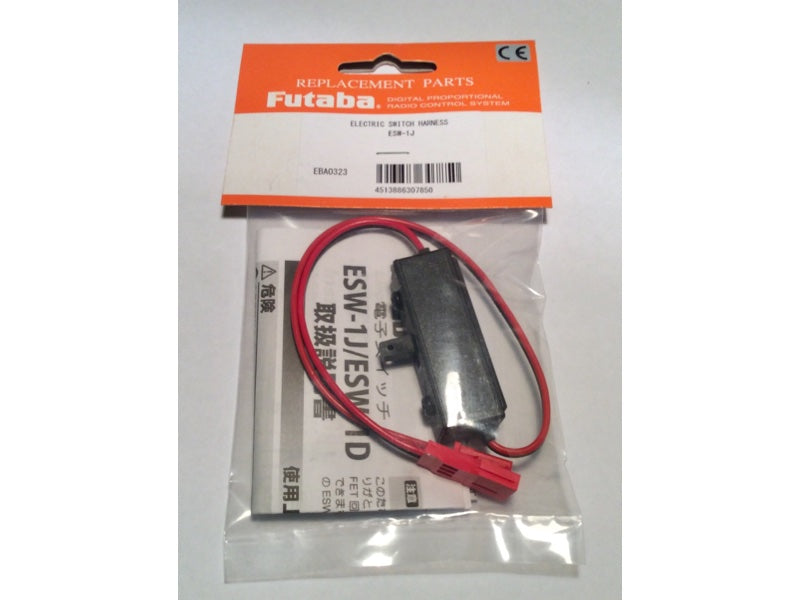

Futaba ESW-1J Electronic Switch Harness
Futaba ESW-1J Electronic Switch Harness
The Futaba ESW-1J Electronic Switch Harness utilizes advanced FET circuitry for superior current handling and minimal voltage drop compared to mechanical switches. It supports a voltage range of 3.7 to 8.4 volts and delivers a continuous current of 5 Amps, with a burst capacity of 10 Amps for up to 30 seconds.
Compact dimensions of 46 x 14 x 70mm and an actuating lever with a hole for wire pushrod connection make it easy to integrate into your setup. This switch is ideal for demanding RC applications where reliable power switching is essential.
Key Features
| Brand | Futaba |
| Model | ESW-1J |
| Type | Electronic Switch Harness |
| Circuitry | FET |
| Voltage Range | 3.7V to 8.4V |
| Continuous Current Rating | 5A |
| Burst Current Rating | 10A (max 30 seconds) |
| Dimensions | 46 x 14 x 70mm |
| Actuating Lever | Hole for wire pushrod connection |
| Weight | 0.6 oz (17 g) |
How to use
Connect the ESW-1J between your receiver and battery or load. Use the actuating lever hole to attach a wire pushrod for remote switching. Ensure the voltage and current do not exceed the specified limits.
