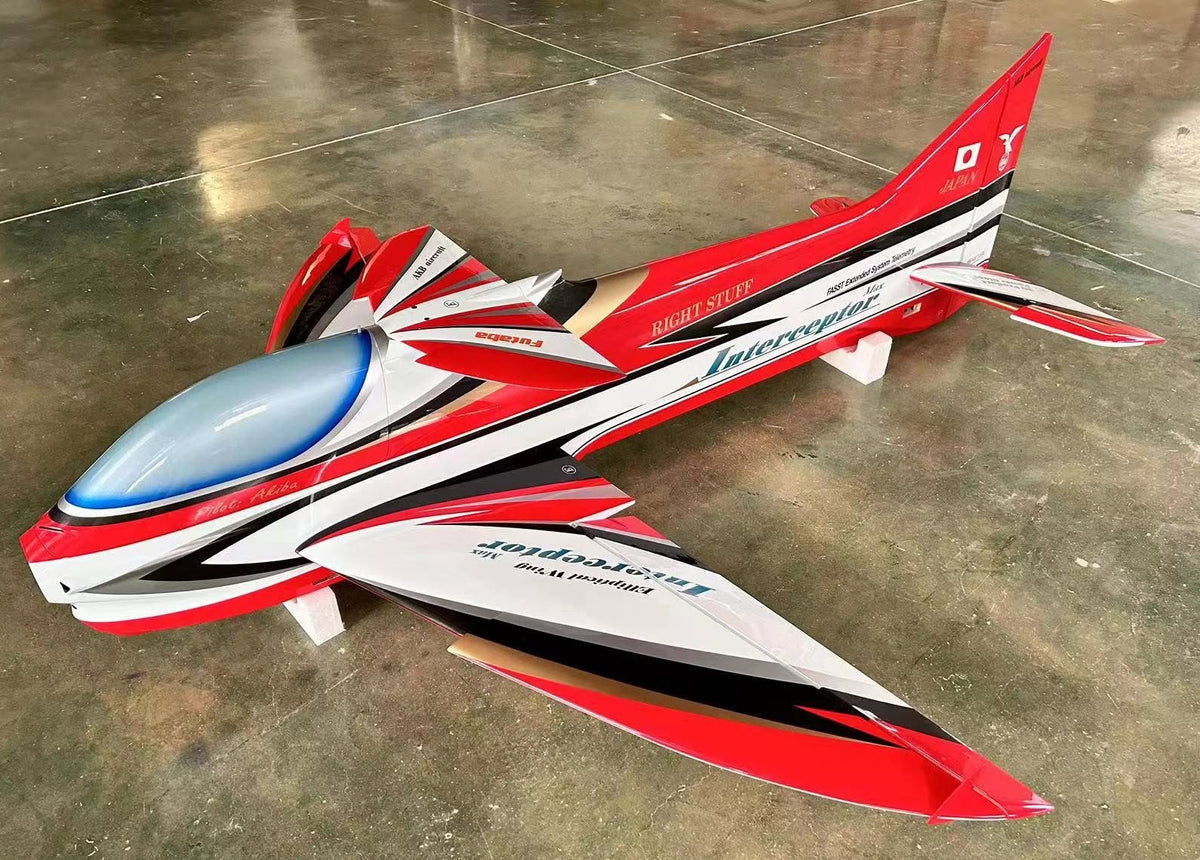

Hui Yang Interceptor MAX nose and canopy, three-quarter view from the front left

Hui Yang Professional F3A Interceptor MAX EP ARF Airframe

$7,470.00 AUD
$7,470.00 AUD
Skip to product information
Hui Yang Interceptor MAX nose and canopy, three-quarter view from the front left
  • Hui Yang Interceptor MAX nose and canopy, three-quarter view from the front left

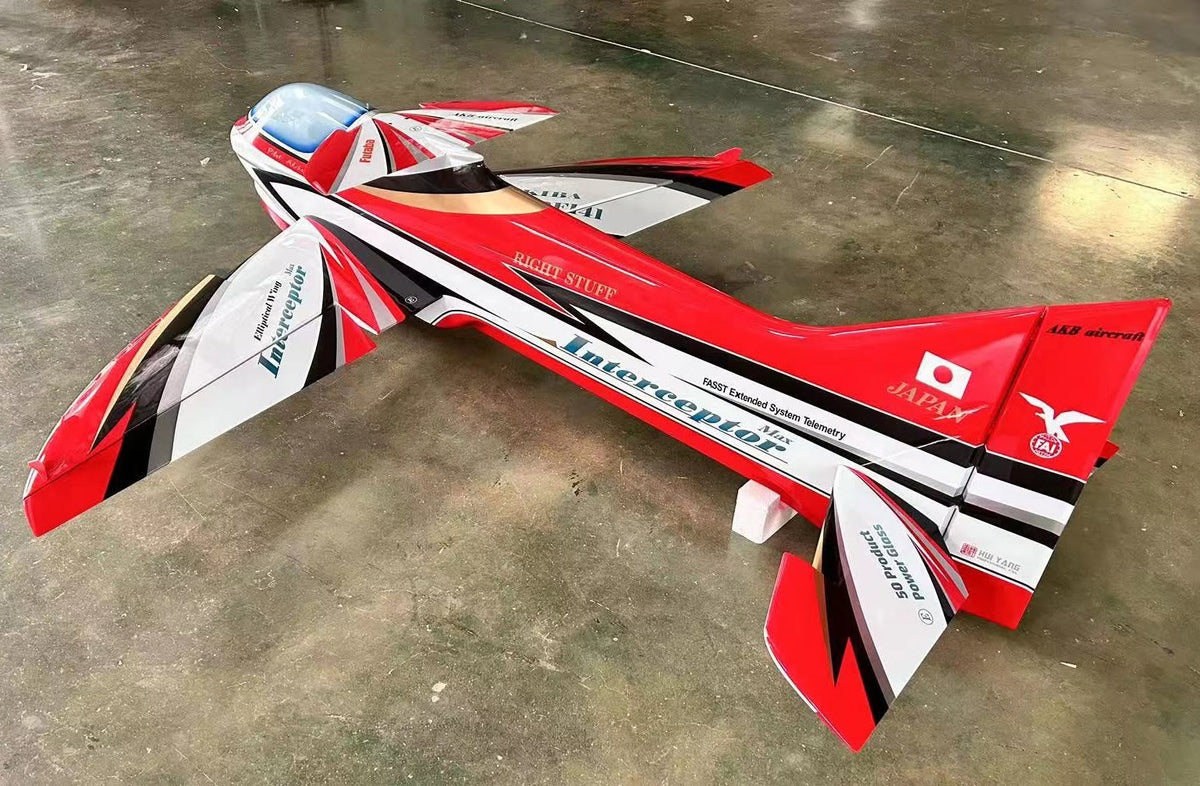

  • Hui Yang Interceptor MAX F3A airframe, red, black and white scheme, three-quarter view from the left wing tip

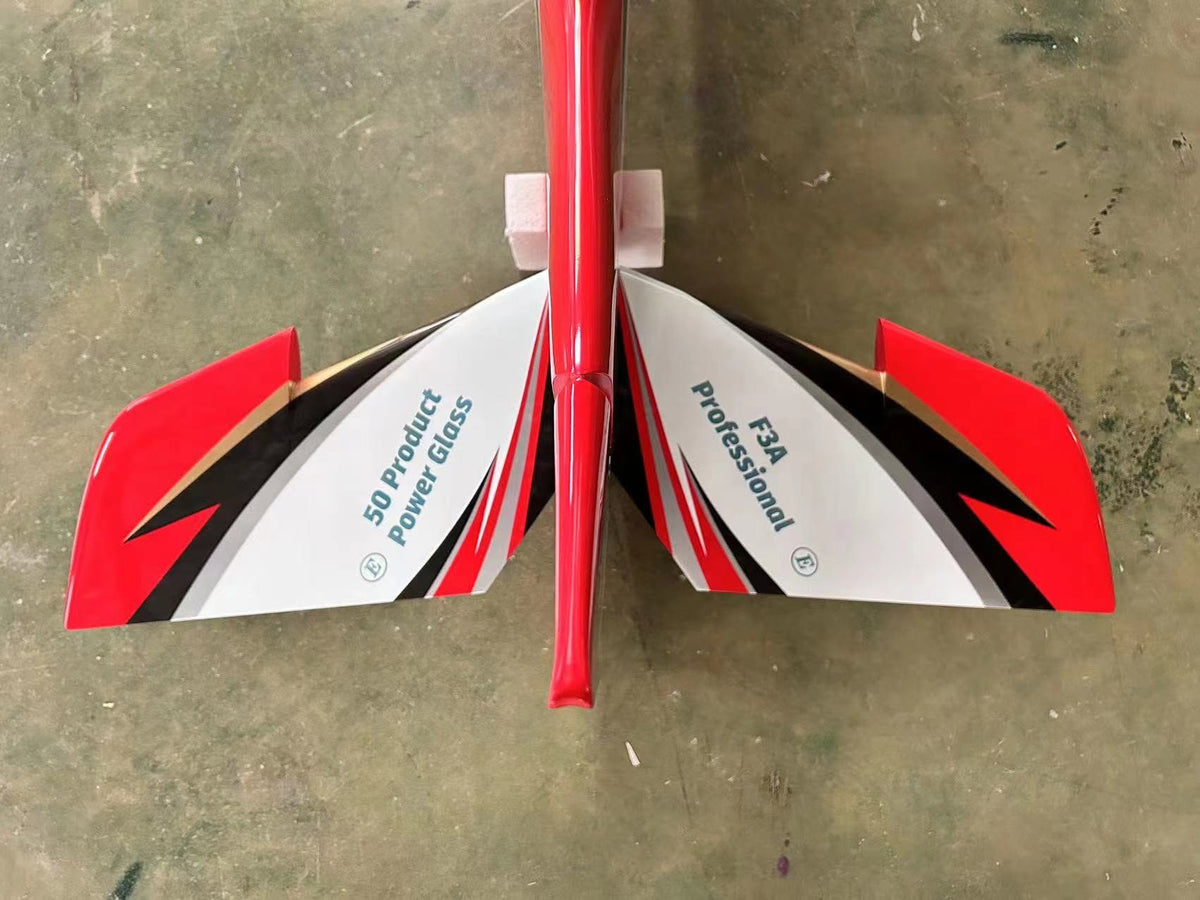

  • Hui Yang Interceptor MAX tailplane and elevators from above, red, black and white scheme

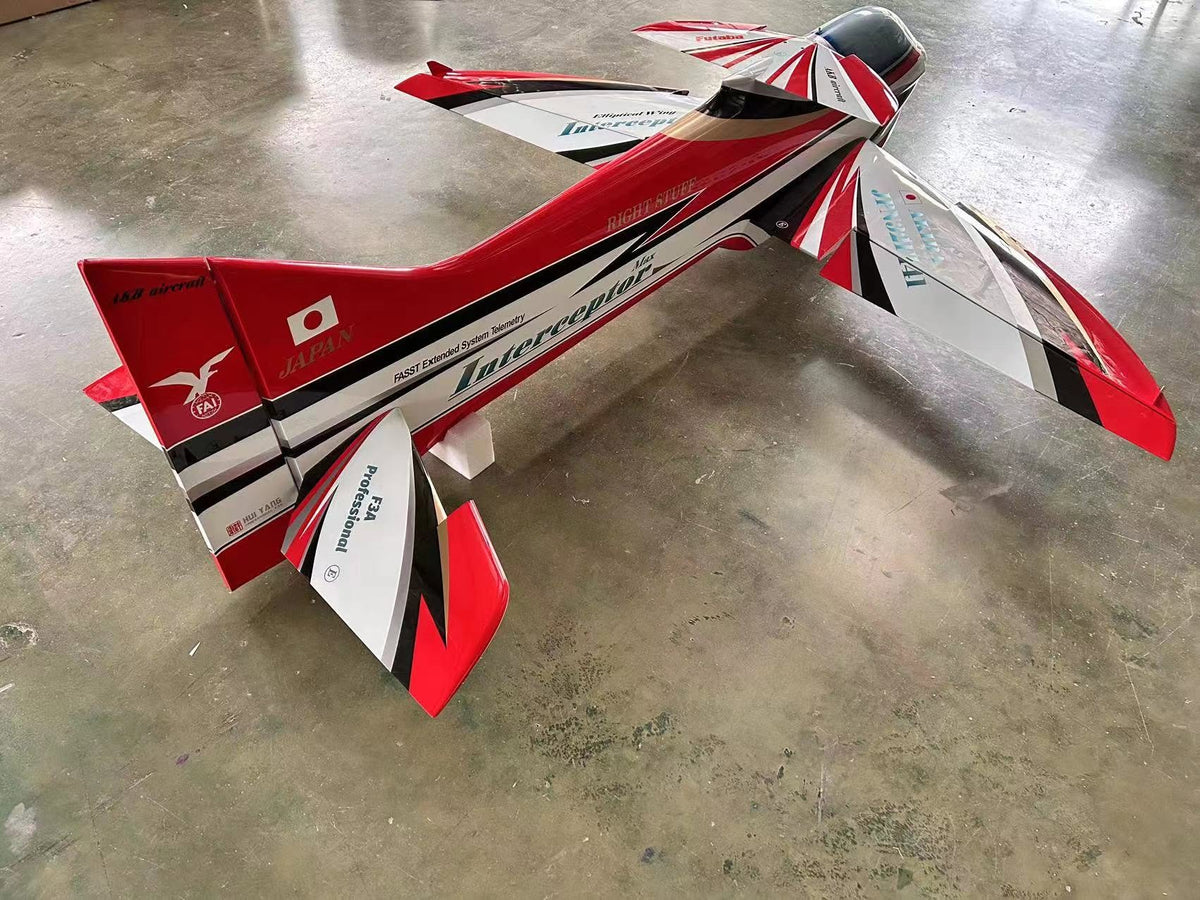

  • Hui Yang Interceptor MAX from behind the tail, showing the fin, rudder and 1900 mm elliptical wing

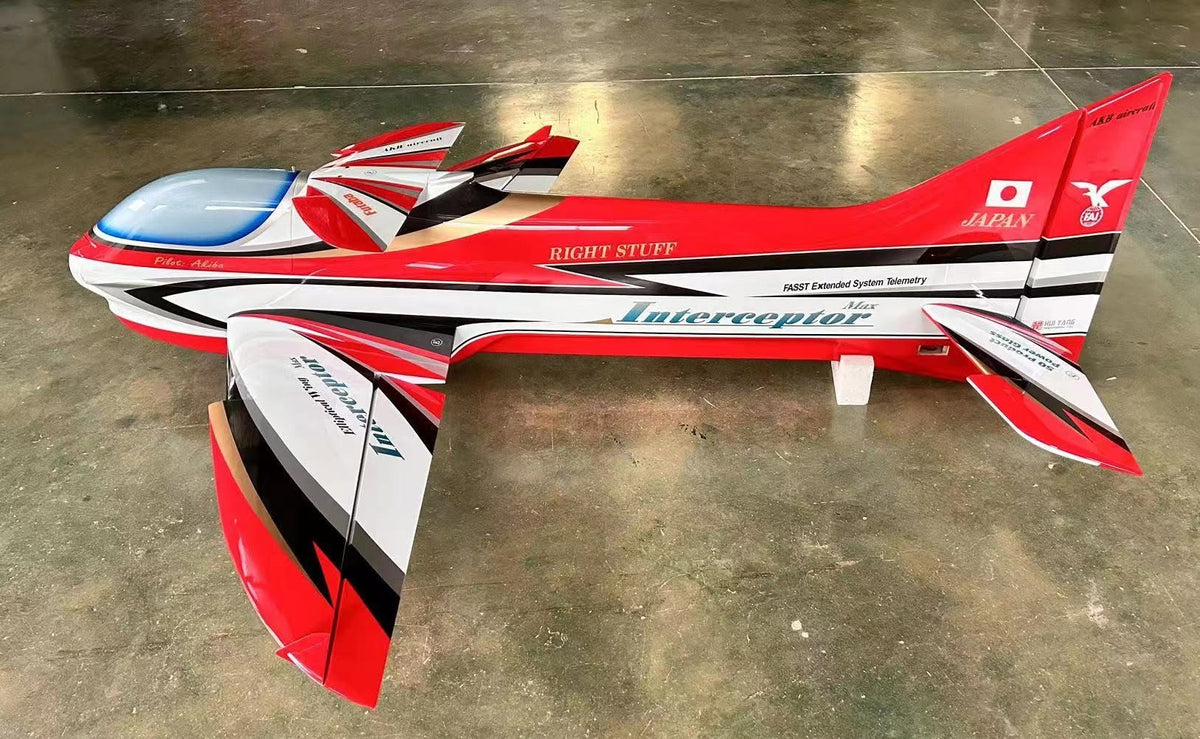

  • Hui Yang Interceptor MAX side profile, 1995 mm Interceptor EP fuselage with the new elliptical wing

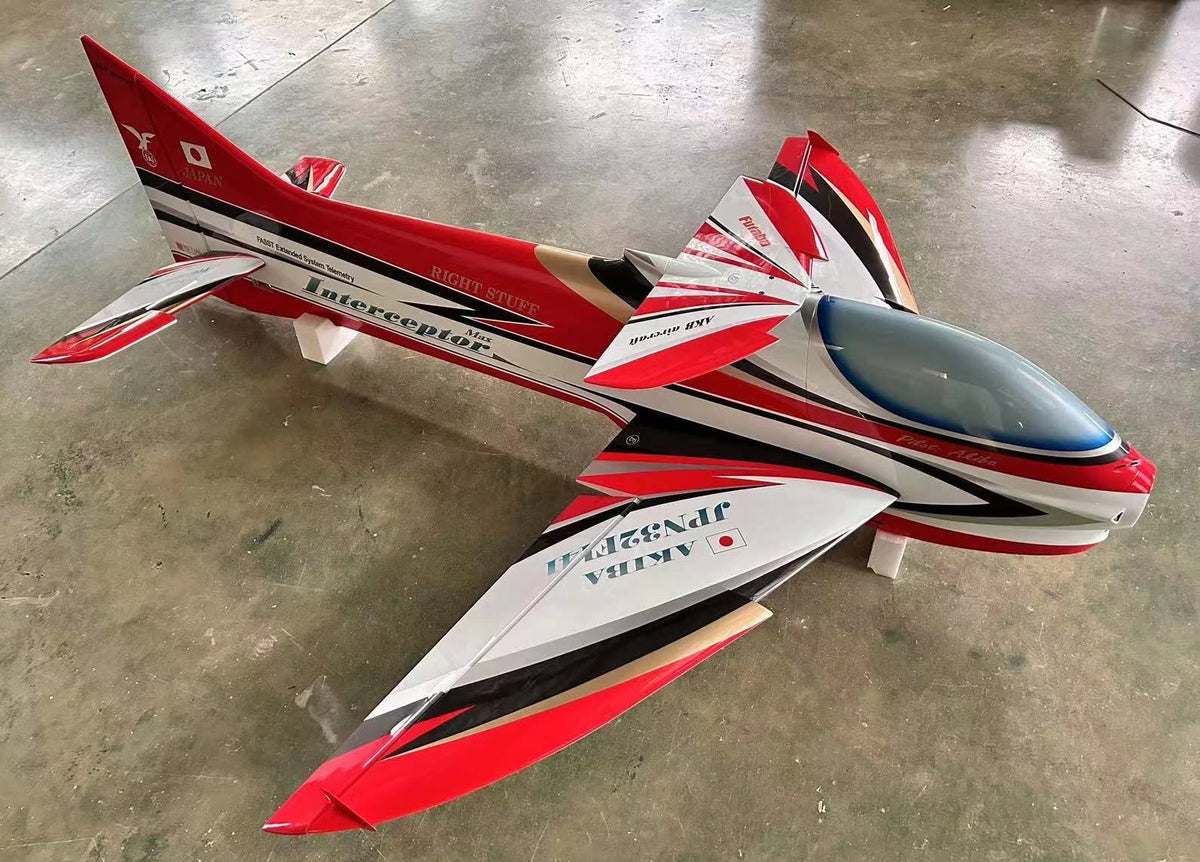

  • Hui Yang Interceptor MAX from the front right, showing the canopy and the top of the right wing

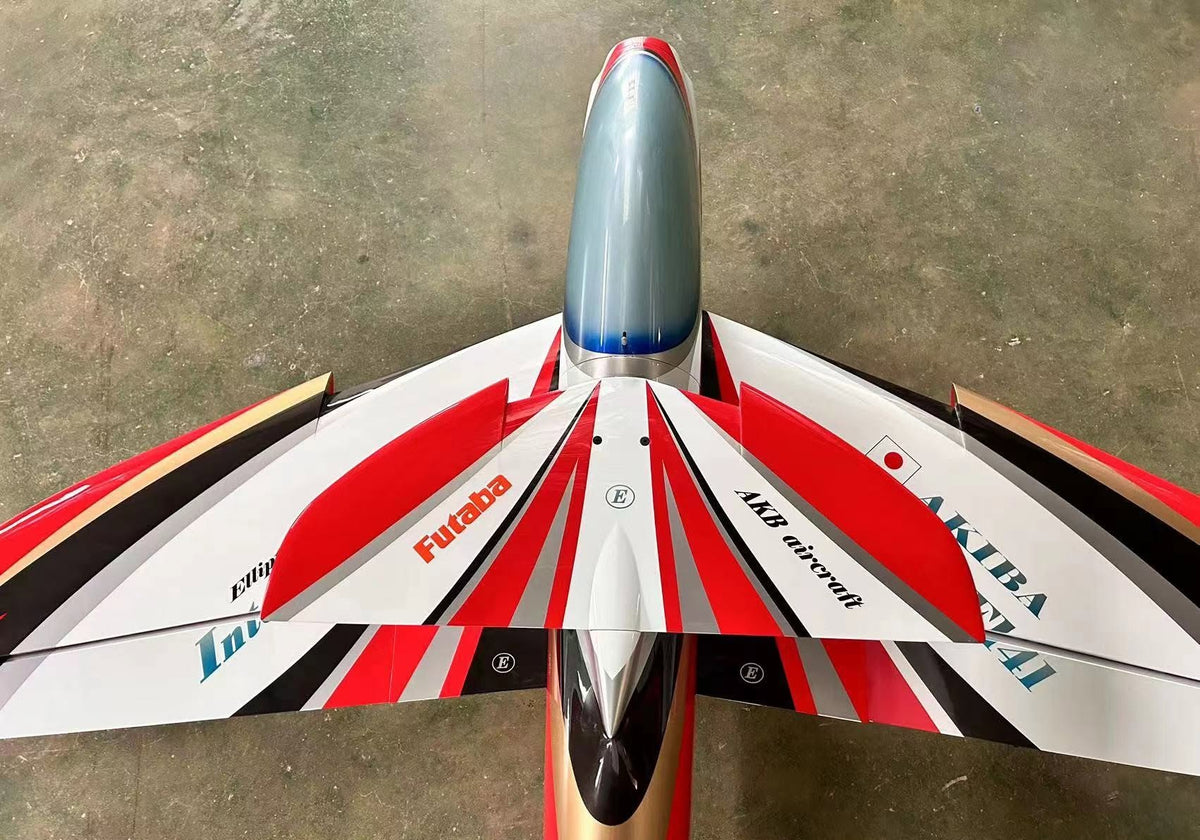

  • Hui Yang Interceptor MAX canopy and wing centre section from above

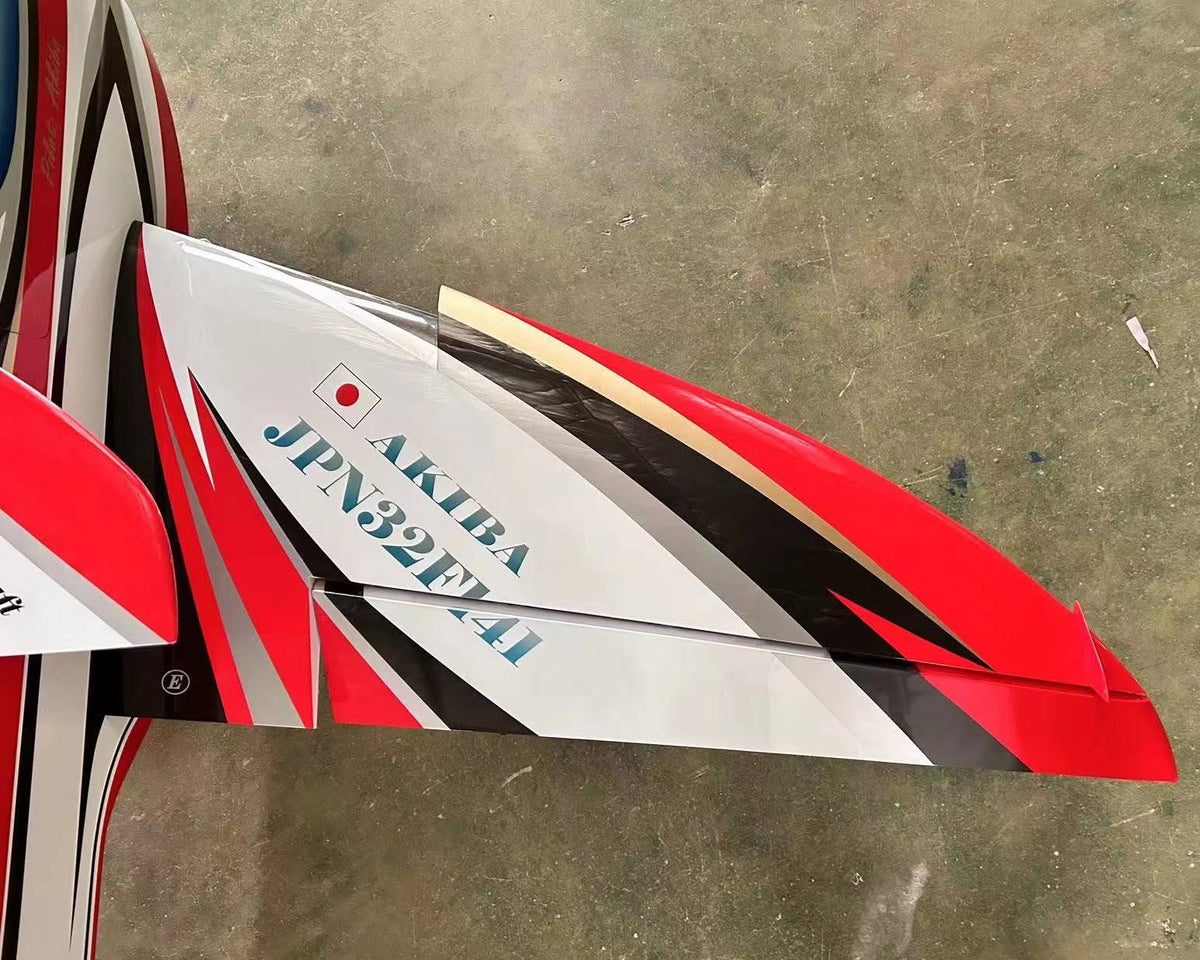

  • Hui Yang Interceptor MAX right wing panel close-up, elliptical planform
Hui Yang Professional F3A Interceptor MAX EP ARF Airframe
Hui Yang Professional F3A

Hui Yang Professional F3A Interceptor MAX EP ARF Airframe

$7,470.00 AUD
$7,470.00 AUD
Contact us to order

Airframes are supplied to order and travel by freight or change hands at a contest. Send us your model, scheme and timing and we'll sort delivery with you.

Prices in AUD, GST included for Australian orders.

Custom schemesCustom schemes or colour swaps are available.
Drive matchingTell us your drive system preferences and let us suggest a solution.
Supported in AustraliaBacked by pilots who fly the schedule
Putting the whole setup together?
Tell us the scheme, drive and radio gear you want and we'll quote it as one package.

The Interceptor MAX is Yoichiro Akiba's Interceptor with a new elliptical wing, built by Hui Yang. It keeps the Interceptor EP fuselage at 1995 mm and takes the span out to 1900 mm. Electric only, and set up for either a counter-rotating contra drive or a conventional single motor. Supplied in the red, black and white scheme pictured.

Specifications

Brand Hui Yang Professional F3A
Designer Yoichiro Akiba (AKB Aircraft)
Configuration EP (electric powered)
Wingspan 1900 mm, elliptical planform
Fuselage length 1995 mm (Interceptor EP fuselage)
Horizontal stabiliser area 16.2 dm²
Spinner diameter 89 mm
Centre of gravity 265 mm back from the leading edge of the wing root
Empty weight 2400 g (without accessories and landing gear set)
Power system Counter-rotating (contra) drive or conventional motor

Recommended servos

Aileron MKS HV747/Futaba BLS9172SV × 2
Elevator MKS HV747/Futaba BLS9172SV × 1
Rudder MKS HV747/Futaba HPS-A704 × 1

Servos, drive system, spinner, propeller, battery and undercarriage are sold separately. Supplied to order.

Not sure which drive suits the Interceptor MAX? Send us your target flying weight and whether you're running contra or conventional, and we'll spec it.
