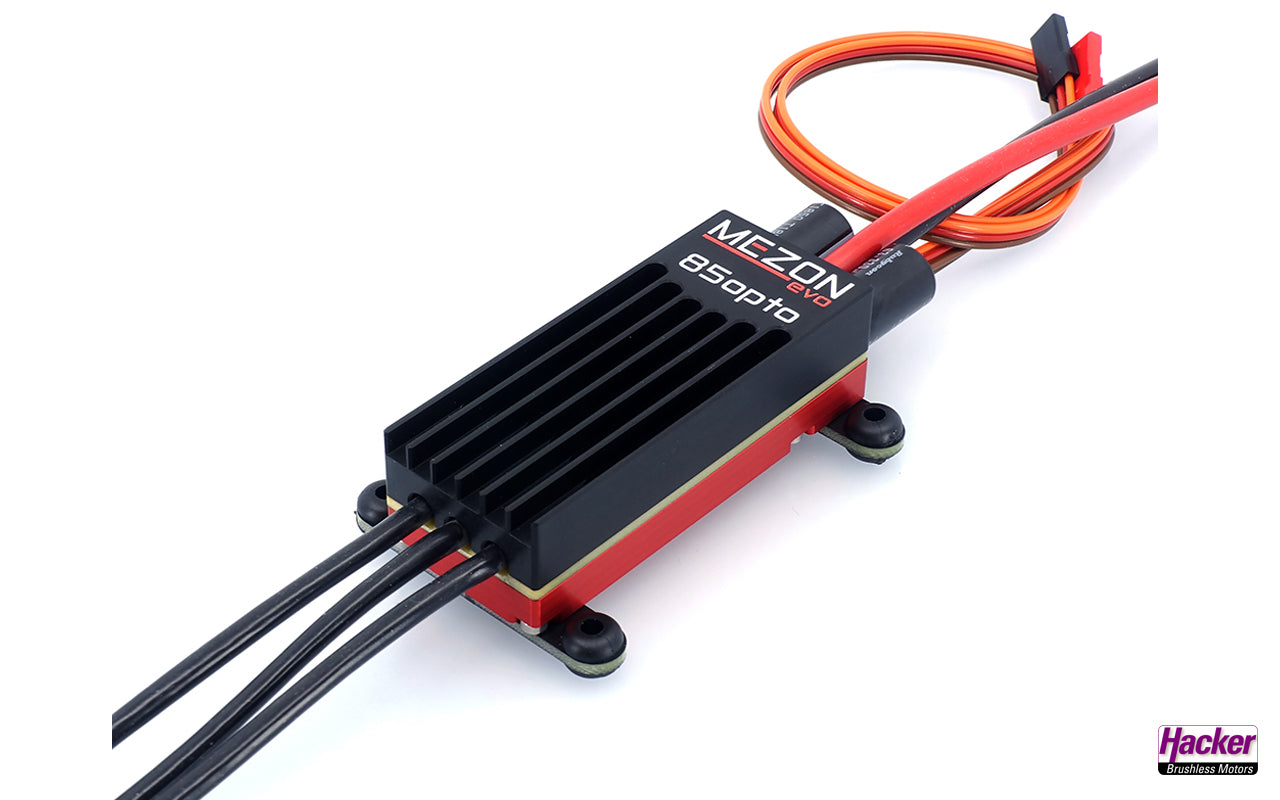

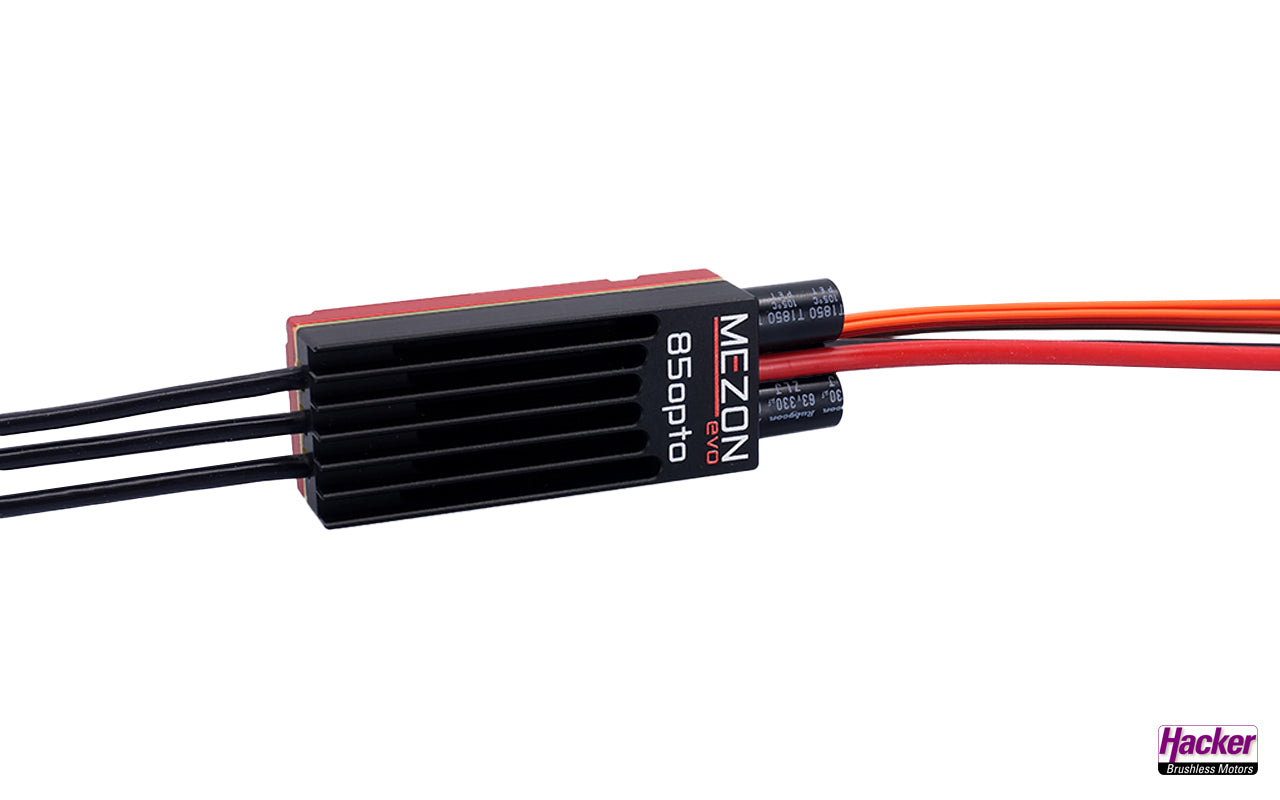

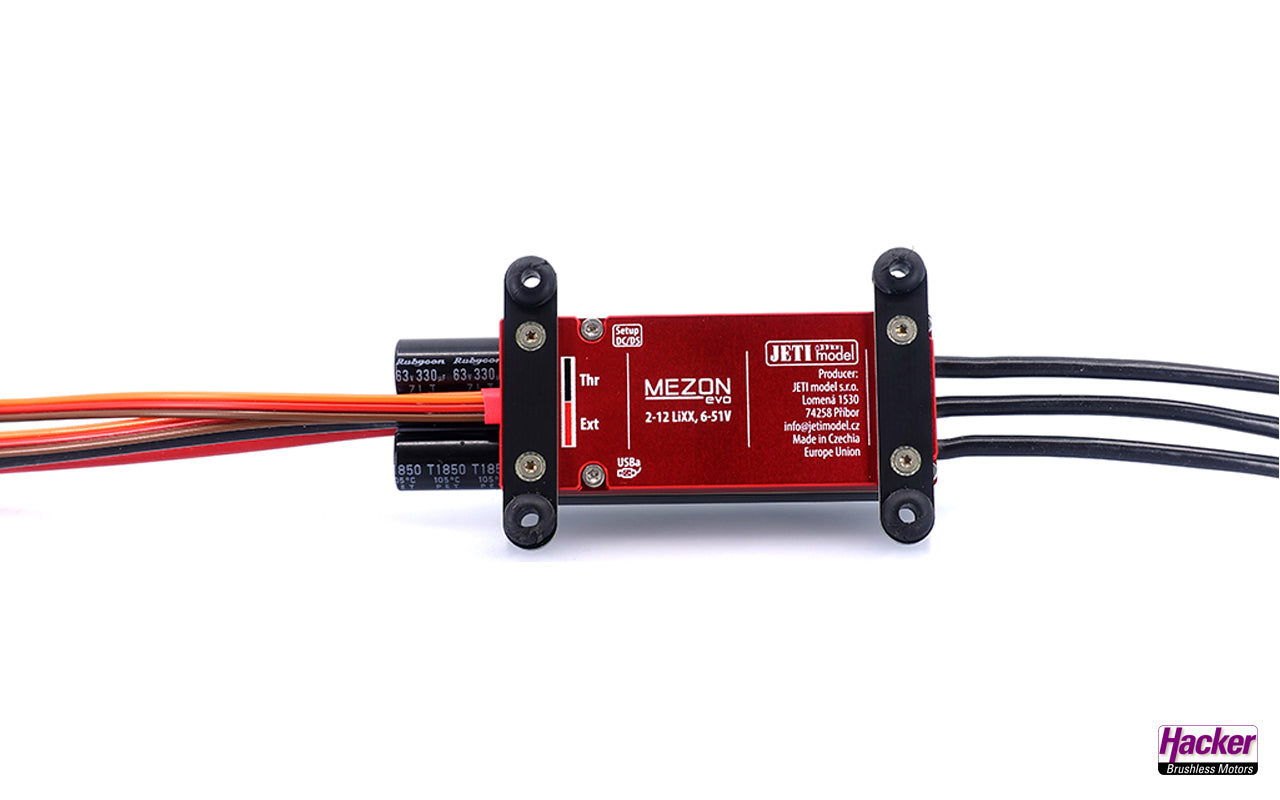

Jeti Mezon 85 EVO Opto Brushless ESC
Jeti Mezon 85 EVO Opto Brushless ESC
The Jeti Mezon 85 EVO Opto is a high-performance brushless speed controller designed for RC aircraft, helicopters, ships, and vehicles. Its aluminum housing ensures efficient cooling, while full EX telemetry provides real-time data on voltage, current, capacity, and RPM. The controller features a user-friendly setup wizard and an expert mode for advanced tuning, along with adjustable braking and bidirectional motor support.
With a maximum continuous current of 85A and a supply voltage range of 6 to 51V (2-12 LiXX cells), this ESC delivers reliable power and precise control. The optocoupler design offers superior interference immunity, requiring a separate receiver power supply.
Key Features
| Brand | Jeti Model |
| Product Type | Brushless ESC |
| Maximum Continuous Current | 85A |
| Supply Voltage | 6 to 51V |
| Battery Cells (LiXX) | 2 to 12 cells |
| BEC | Opto (no BEC) |
| Telemetry | Yes (EX) |
| Housing Material | Aluminum |
| Dimensions | 28 x 20 x 85mm |
| Weight | 83g (2.93 oz) |
| Operational Temperature | -10 to 85°C |
| Resistance (Conducting State) | 2 x 1.2mΩ |
| Cable Cross-Section (Input/Output) | 4.0 / 2.5mm² |
| Supported Models | Airplane, Helicopter, Ship, Vehicle |
| Firmware Upgradeable | Yes |
Highlights
- Full EX telemetry for voltage, current, capacity, and RPM
- Aluminum housing for efficient cooling
- Setup wizard and expert mode for easy configuration
- Adjustable brake with energy recovery
- Bidirectional motor support
What's included

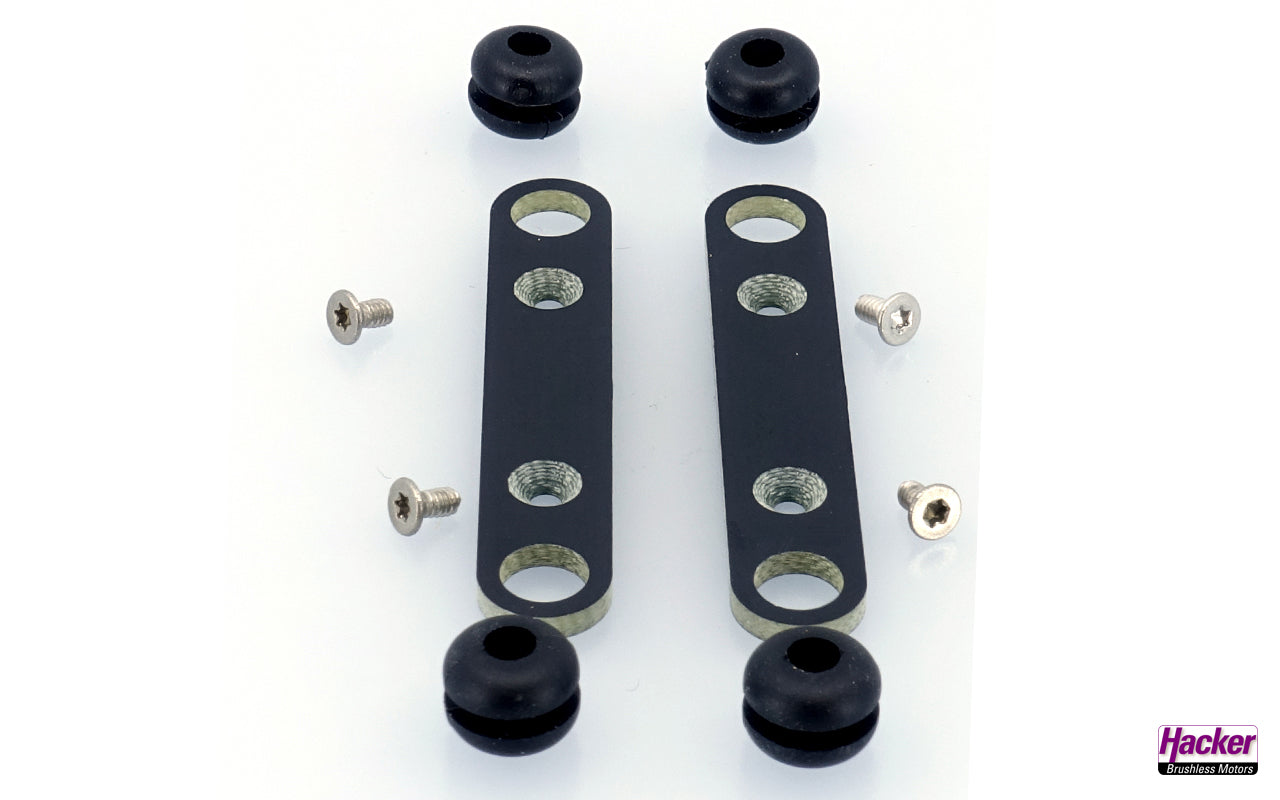

1x MEZON EVO 85 OPTO, 1x mounting kit, 1x manual
