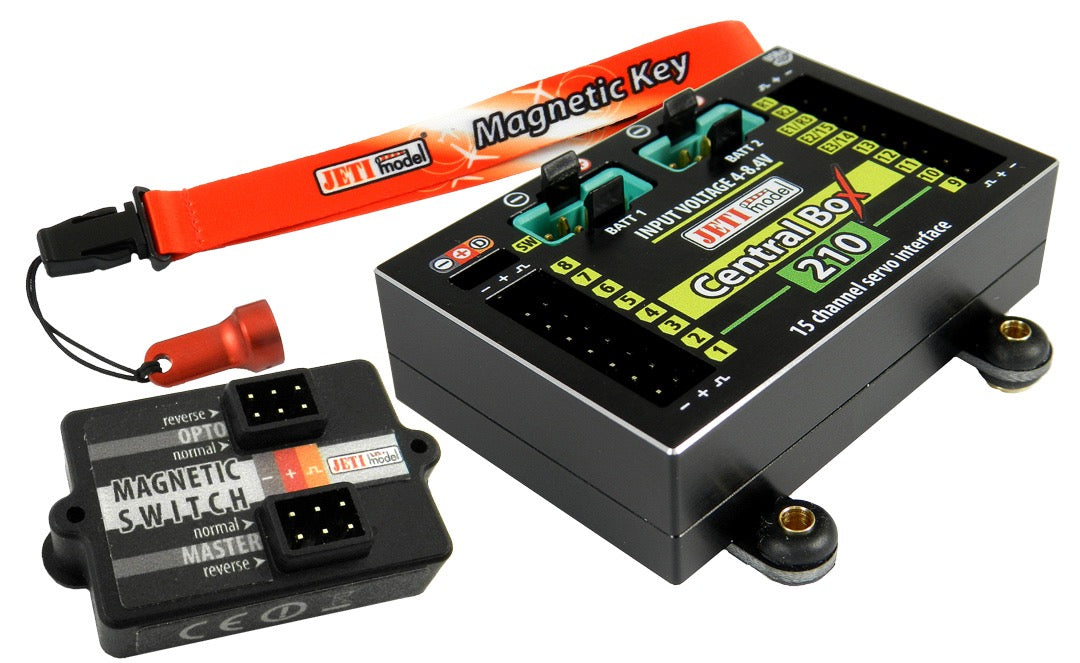

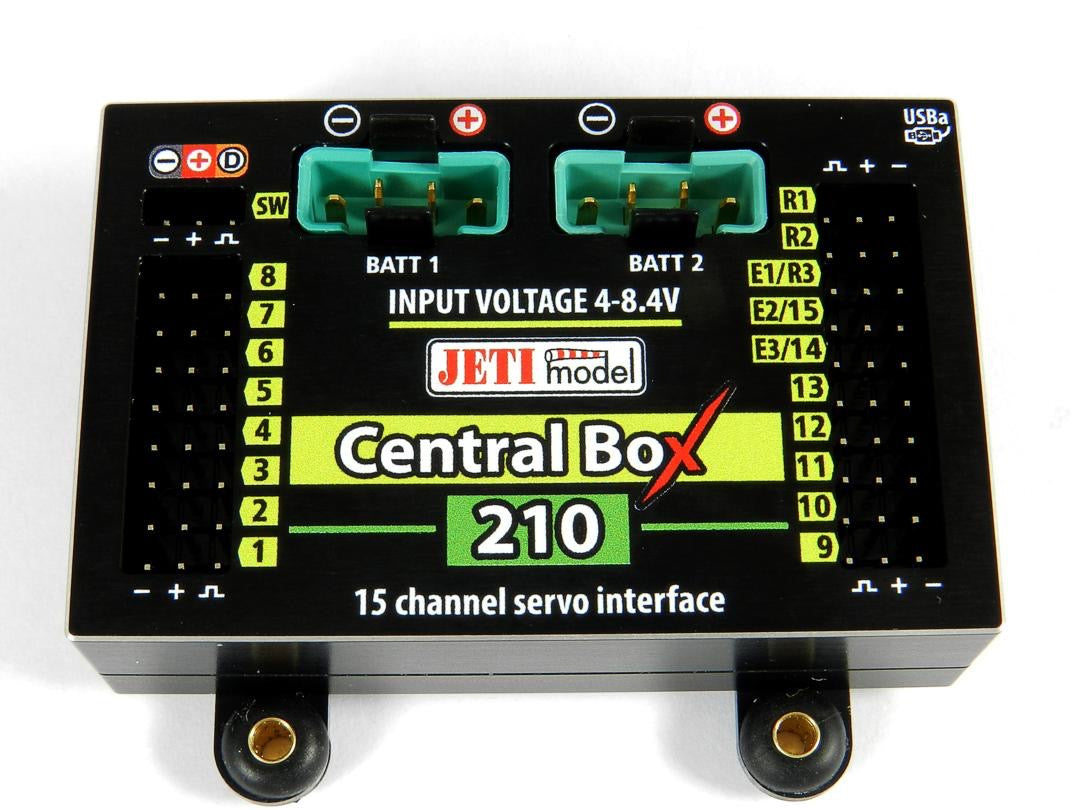

The Jeti Model Central Box 210 is a high-performance power distribution switchboard designed for complete servo management in radio-controlled models, prioritizing safety and reliability. It delivers unreduced power to each servo output, supporting up to two batteries and fully integrating with the JETI EX telemetry system for real-time monitoring of voltage, current, and temperature.
Connect up to three receivers with serial interfaces (PPM, EX Bus, S.Bus, UDI) for flexible setup, and utilize the built-in Expander function for up to three additional sensors. The unit includes an input for a magnetic or RC switch, operates in 100Hz mode for rapid servo response, and comes with a magnetic switch and key for convenient power control.
Key Features
| Brand | Jeti Model |
| Product Type | Power Distribution System |
| Model | Central Box 210 |
| Weight | 2.3 oz (65 g) |
| Dimensions | 2.6 x 1.65 x 0.71 in (66 x 42 x 18 mm) |
| Sustained Current | 20 A |
| Number of Channels | 15 |
| Telemetry | Yes (EX telemetry) |
| Operational Temperature | -4 to 185 °F (-20 to 85 °C) |
| Compatible Protocols | EX Bus, PPM, S.Bus, UDI |
| Supply Voltage | 4 to 8.4 V |
| Satellite Receiver Support | Yes |
| Number of Battery Inputs | 2 |
| Idle Current | 240 µA |
| Voltage Stabilization | No |
| Protected Servo Output | No |
| Packaging Includes | Magnetic switch, Magnetic key |
Highlights
- Unreduced power to each servo output for maximum performance
- Supports DITEX telemetry servos
- Built-in Expander function for up to 3 sensors
- 100Hz servo output mode for fast response
What's included
- Jeti Model Central Box 210
- Magnetic switch
- Magnetic key
