EU version, ships to EU countries only. This receiver runs on the European 863 to 870 MHz band and cannot be used in Australia or the Americas. The box has been opened but the contents are complete, hence the price.

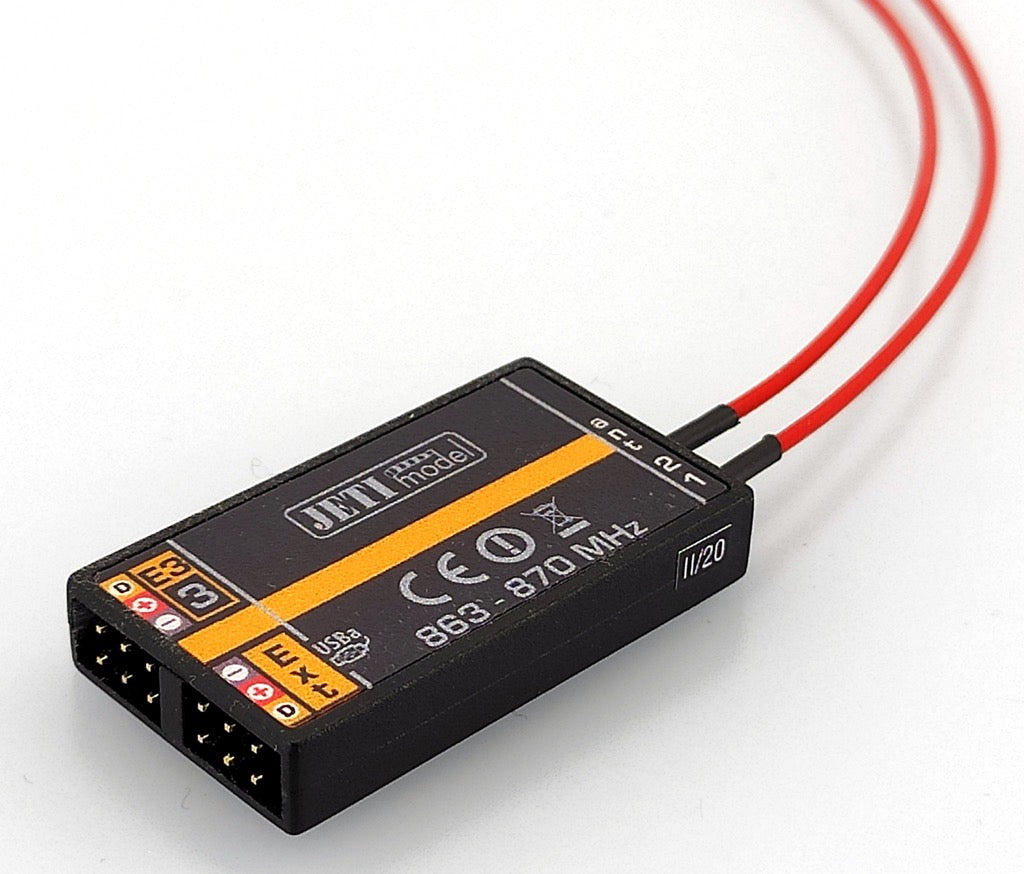

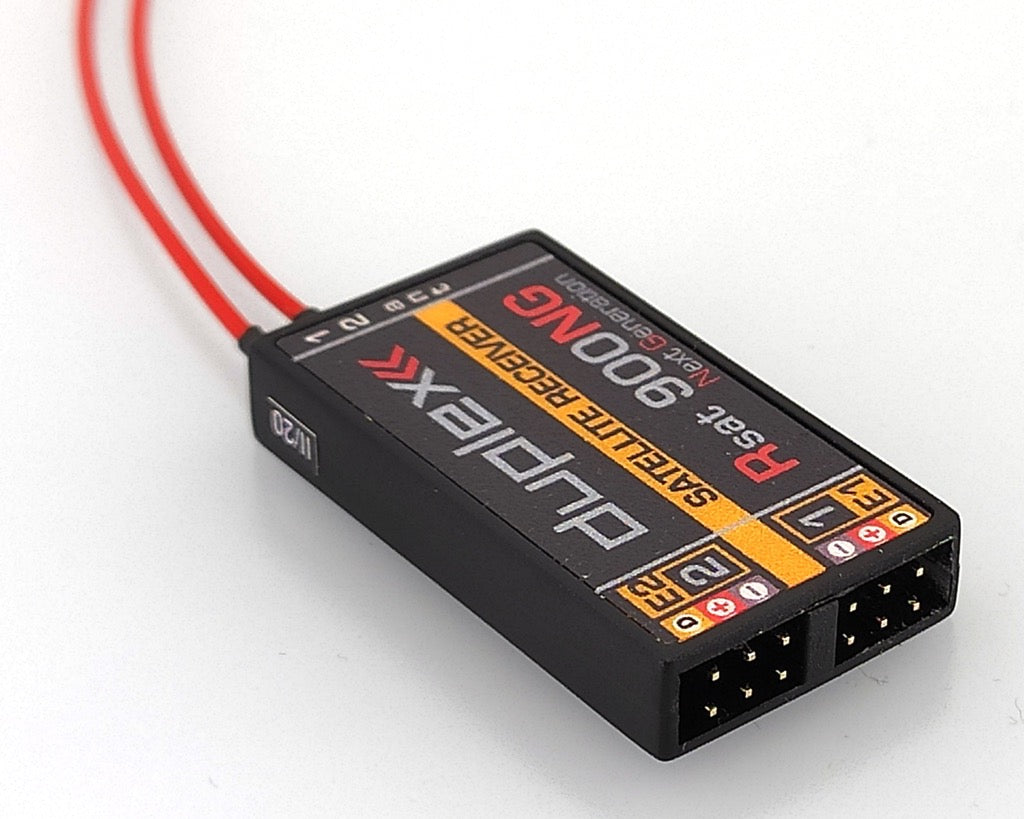

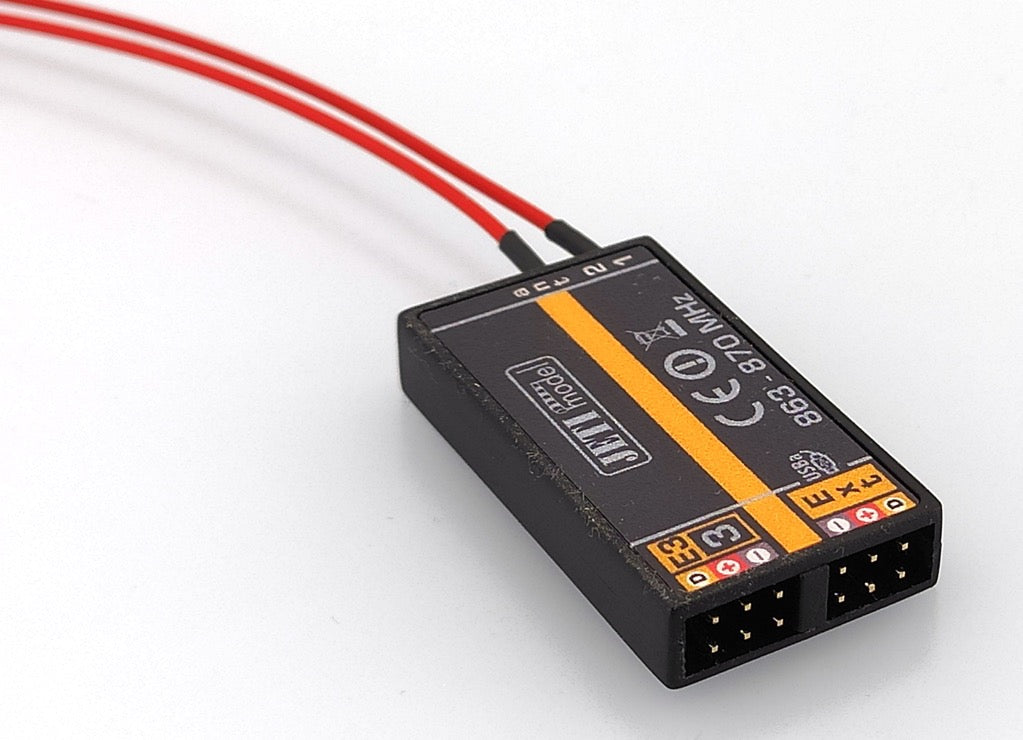

The Jeti Duplex RSAT 900 NG is the next-generation 900 MHz backup receiver for Jeti DC and DS transmitters fitted with a 900 NG module. It rides alongside the 2.4 GHz main link and takes over if that link is lost to interference, using LoRa modulation for range and resistance to noise. The RSAT 900 NG needs a 900 NG transmitter module. It is not compatible with the earlier RSAT 900 or the original 900 MHz module.
What's in the box

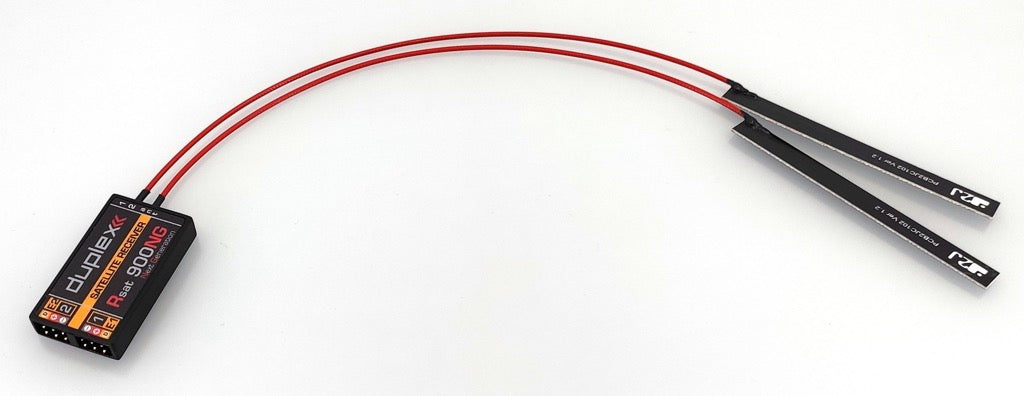

- Jeti Duplex RSAT 900 NG receiver with two 260mm antennas
Specifications
- Band: EU, 863 to 870 MHz
- Protocols: Duplex 900 MHz EX, EX Bus
- Supply voltage: 3.5 to 8.4V
- Average current: 75 mA
- Output power: 14 dBm
- Antennas: 2 × 260mm
- Telemetry: No
- Operating temperature: −10 to 85°C
- Dimensions: 40 × 22 × 7mm
- Weight: 11 g
Not sure it matches your transmitter module? Send us the module details and we will check before you order.
Receiver only. Transmitter module sold separately. EU delivery only.
