PowerBox Cable Set Premium One 4 One
$28.50 AUD
Sale price
$28.50 AUD
Regular price
Skip to product information
PowerBox
PowerBox Cable Set Premium One 4 One
$28.50 AUD
Sale price
$28.50 AUD
Regular price
Prices in AUD, GST included for Australian orders.
Fitment helpNot sure what suits your setup? Ask us before you order.
Supported in AustraliaBacked by pilots who fly the schedule
Not sure what you need?
Send us your model and setup and we'll point you at the right part.
Send us your model and setup and we'll point you at the right part.

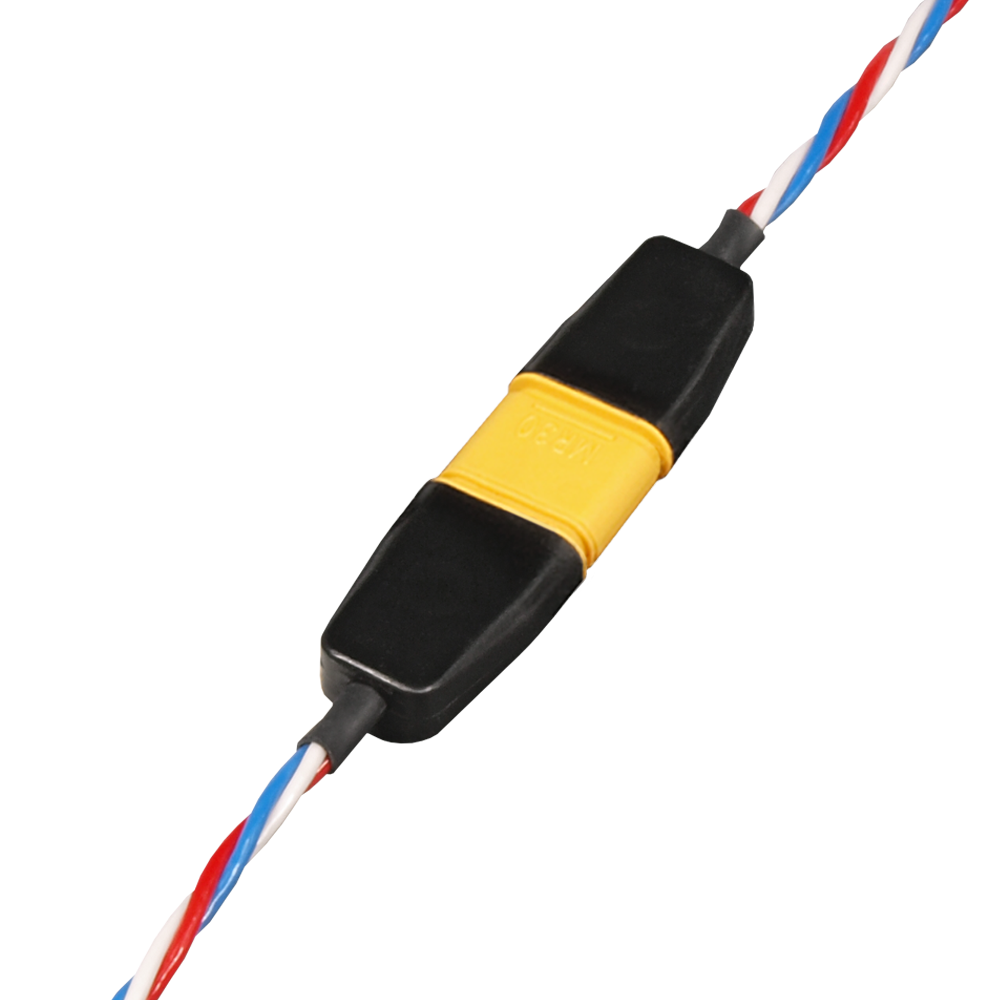

The PowerBox Cable Set Premium One 4 One is a wing-root plug and socket for a single servo: one MR30 connector pair that joins the wing lead to the fuselage lead, so a wing or tailplane comes off without unplugging at the servo. It is the one-servo version of the One 4 Two, for the jobs that used to need a Uni connector.
The cable is PowerBox's Premium 0.35mm² lead, with 2mm gold-plated contacts for current capacity and repeated plugging, and hot-melt sealing over the solder joints for strain relief.
What's in the box

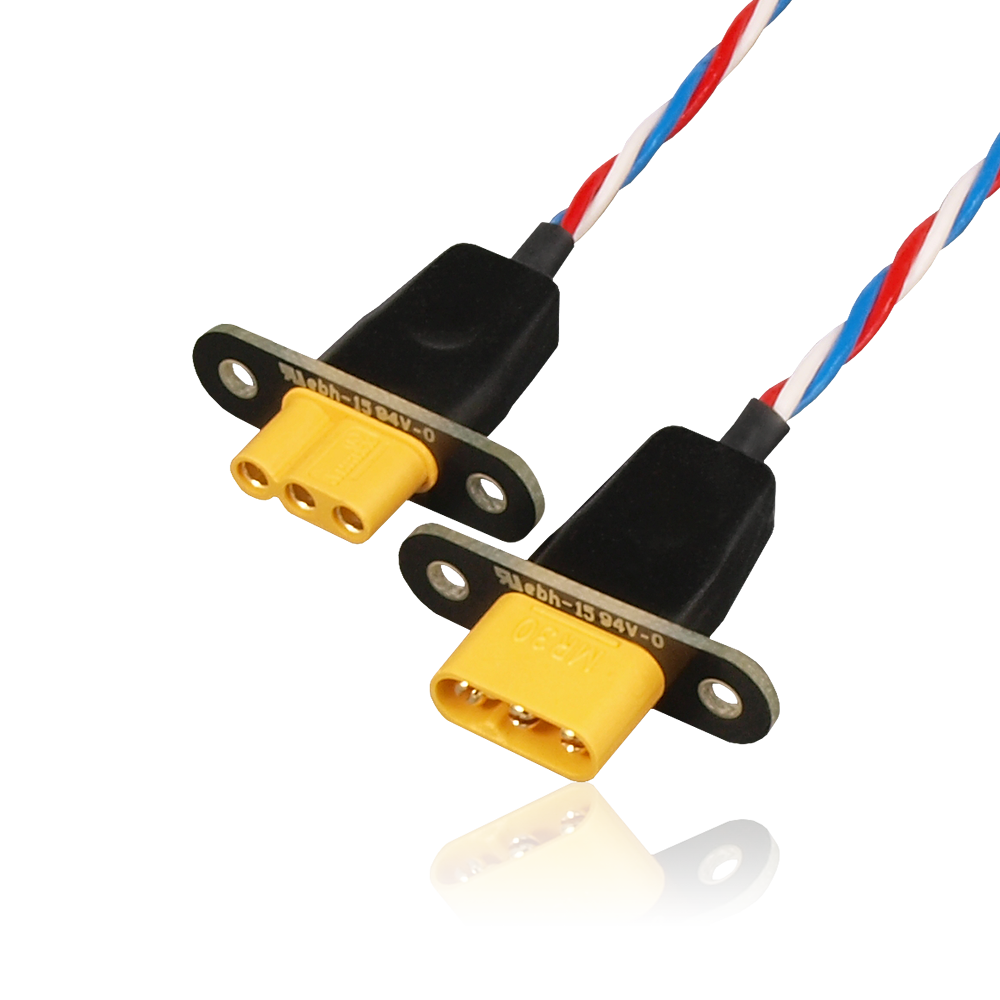

- Cable set with MR30 plug and socket, 40cm and 120cm leads

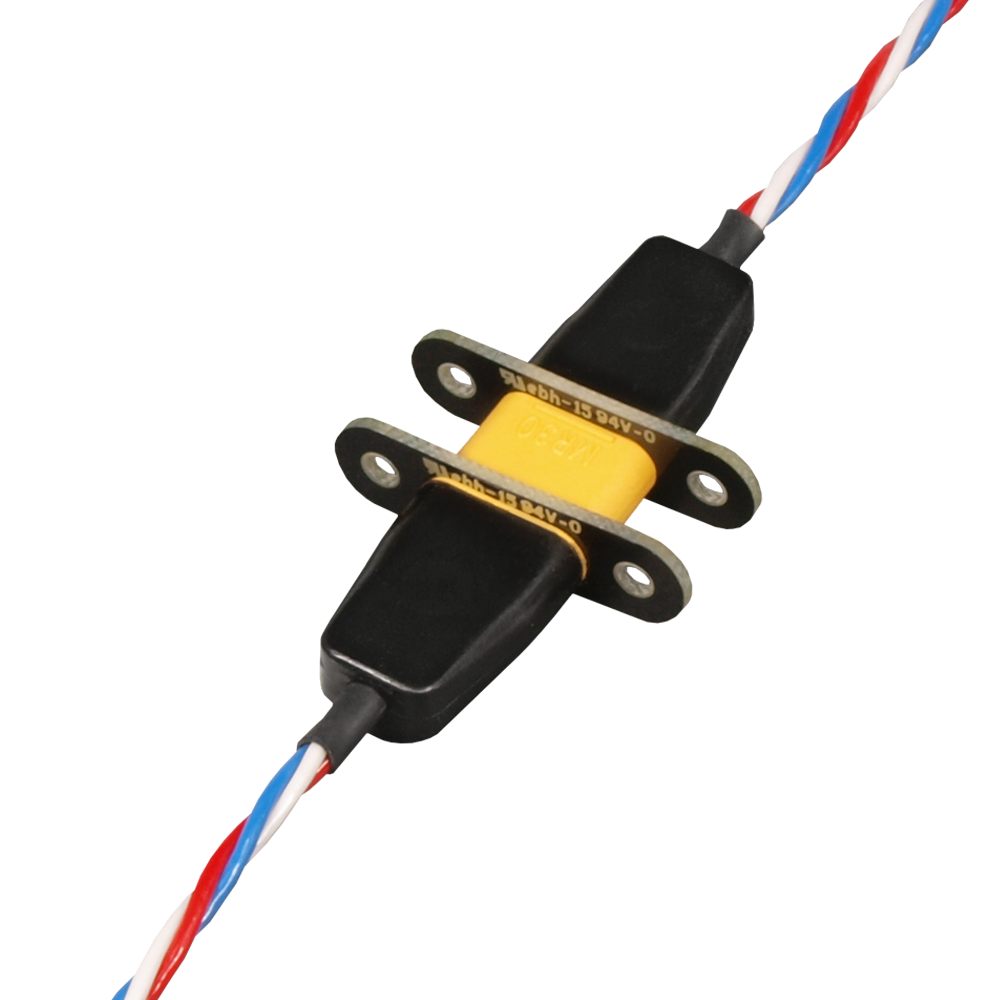

- Two mounting flanges, one for each half, to screw the connector into the fuselage and the wing
Specifications
- Servos: 1
- Cable: PowerBox Premium, 0.35mm²
- Lead lengths: 40cm and 120cm (180cm total)
- Connector: MR30, 3-pin, polarised; 2mm gold-plated contacts
- Temperature range: −30 to +90°C
- PowerBox order no.: 1132
Need a longer run? PowerBox Premium servo cable is sold by the metre. Wing with two servos? Use the One 4 Two.
Not sure which connector suits your wiring? Send us your model and servo layout and we will point you at the right set.
Cable set and mounting flanges only. Servos sold separately.
