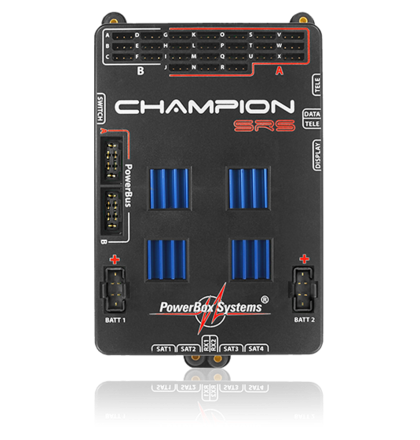

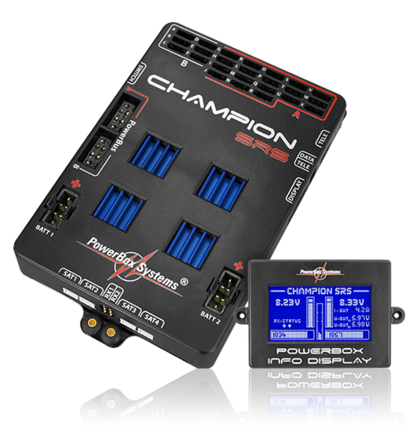

The PowerBox Champion SRS is a high-end power management system designed for demanding RC pilots, featuring 24 servo outputs with individual ServoMatch and a door sequencer with an integrated setup assistant. It incorporates four high-performance voltage regulators that can be independently set to 5.9V or 7.4V, supporting both HV and conventional 6V servos. The unit supports serial receiver systems from Spektrum, Futaba, JR, Multiplex, HoTT, and Jeti, with telemetry output for battery, receiver, and GPS data. A graphic LCD screen and SensorSwitch enable intuitive menu-based programming, while the flight recorder logs lost frames, fail-safe events, and battery data.
Key Features
| Brand | PowerBox |
| Model | Champion SRS #4520 |
| Operating Voltage | 4.0V - 9.0V |
| Power Supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current Drain (Power-on) | 185mA (with LCD) |
| Current Drain (Standby) | 30µA |
| Maximum Load Current | Peak 4x20A |
| Drop-out Voltage | 0.3V |
| Output Voltage | 5.9V and/or 7.4V regulated |
| Signal Input | Serial |
| Supported RC Systems | Spektrum, Futaba, HoTT, M-Link, Jeti, JR |
| Receiver Redundancy | SRS |
| Channels | 18 |
| Servo Sockets | 24 |
| Programmable Servo Outputs | 24 |
| Servo Signal Resolution | 0.5µs |
| Signal Frame Rate | 9ms, 12ms, 15ms, 18ms, 21ms |
| Screen | LCD, backlit |
| Integral Door Sequencer | Yes |
| Supported Telemetry Systems | Futaba, Jeti, Spektrum, HoTT, M-Link |
| Dimensions | 5.35 x 3.23 x 0.79 in |
| Weight | 5.57 oz |
| Weight (Sensor Switch) | 0.53 oz |
| Weight (LCD Screen) | 2.29 oz |
| Temperature Range | -22°F to +167°F |
Highlights
- PowerBus: 2 outputs, 16 + 2 channels, compatible with other servo bus systems
- Servo-Match function: servo centre, end-points and reverse for all 24 servo outputs
- Door sequencer: six freely programmable outputs with set-up assistant
- SRS: Serial Receiver System provides the facility to use receivers with serial interface: Spektrum DSM2 and DSMX, Multiplex M-Link, Futaba S-Bus, HoTT, JR X-BUS and Jeti R-SAT2
- Unrestricted channel assignment for all 24 PowerBox outputs

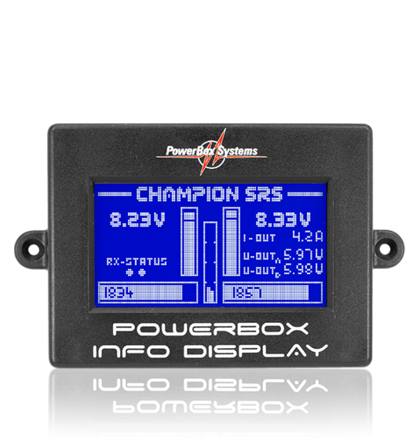

- Graphic LCD screen with 128 x 64 pixels
- Menu-based programming using the SensorSwitch
- Up to 18 channels - depending on the radio control system in use
- Signal amplification and interference suppression for all 24 outputs
- Flight recorder, recording of lost frames, fail-safe events and all battery data
- Variable frame rate, range 9ms – 21ms
- Two 16-bit processors for fast, high-resolution signal processing
- 2 x double-regulated output voltages for receivers and servos
- 2 regulated voltage ranges with independent selection facility, 5.9V or 7.4V
- Connection facilities for Futaba, Jeti, Spektrum, HoTT and Multiplex MSB downlink bus systems
- Direct transmission of battery voltage, capacity, RX-data and GPS data to the transmitter
- Separate voltage and capacity display for each battery
- Minimum value memory for voltage collapses
- Large-area heat-sinks for high regulator performance
- Regulator monitoring, regulator error indicator
- Support for three battery types: LiPo, NiMH / NiCd, LiFePo
- Suppression of servo feedback currents
- Updatable with PowerBox Systems USB Interface

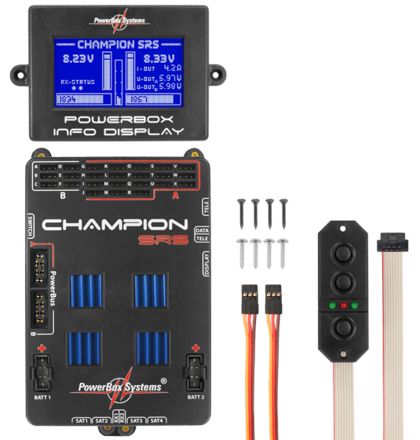

What's included
- PowerBox Champion SRS

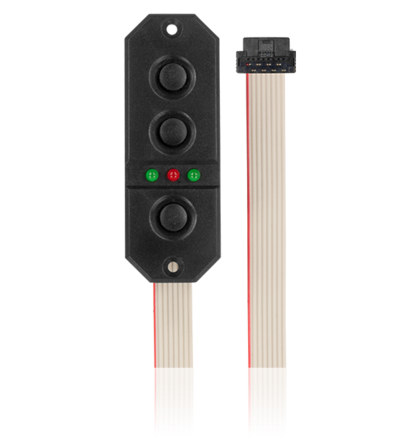

- LCD screen SensorSwitch
- 2 three-core patch-leads, 180 mm
- 4 retaining screws
- 4 rubber grommets / brass spacer sleeves, fitted
- Operating instructions in German and English
