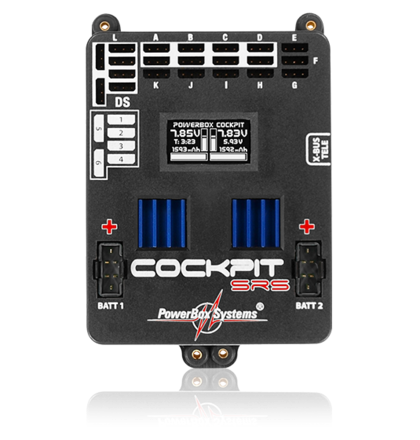

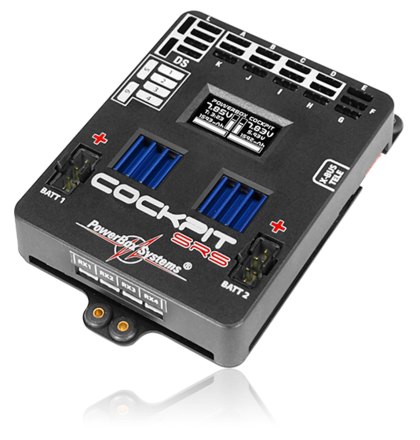

The PowerBox Cockpit SRS combines the full functionality of the Competition SRS with a freely programmable door sequencer for warbirds and jets. It uses a digital serial signal from the receiver to control up to twelve channels, with four channels featuring servo-matching for precise alignment of multiple servos on a single control surface.
All settings are programmed via the SensorSwitch and high-resolution OLED screen, with telemetry support for battery voltage and capacity display on compatible transmitters. The regulated output voltage can be set to 5.9V or 7.4V, and the unit is updatable via USB interface.
Key Features
| Brand | PowerBox |
| Model | Cockpit SRS |
| Operating Voltage | 4.0V - 9.0V |
| Power Supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current Drain (Power-on) | 130mA |
| Current Drain (Standby) | 15µA |
| Maximum Load Current | Peak 2x20A |
| Drop-out Voltage | 0.3V |
| Output Voltage | 5.9V or 7.4V regulated |
| Signal Input | Serial |
| Supported RC Systems | Spektrum, Futaba, HoTT, M-Link, Jeti, JR |
| Receiver Redundancy | SRS |
| Channels | 11+1 |
| Servo Sockets | 21 |
| Programmable Servo Outputs | 4 channels, 8 servos |
| Servo Signal Resolution | 0.5µs |
| Signal Frame Rate | 9ms, 12ms, 15ms, 18ms, 21ms |
| Screen | OLED 128 x 64 pixels, graphic |
| Integral Door Sequencer | Yes |
| Supported Telemetry Systems | Futaba*, Jeti, Spektrum, HoTT, M-Link |
| Dimensions | 4.33 x 2.83 x 0.94 in |
| Weight | 4.06 oz |
| Weight (Sensor Switch) | 0.53 oz |
| Temperature Range | -22°F to 167°F |
Highlights
- Freely programmable door sequencer with setup assistant
- Servo-matching for 4 channels and 8 servos
- 11+1 channels with unrestricted assignment
- OLED graphic screen with menu-based programming
- Telemetry support for battery voltage and capacity
- Regulated output voltage selectable 5.9V or 7.4V

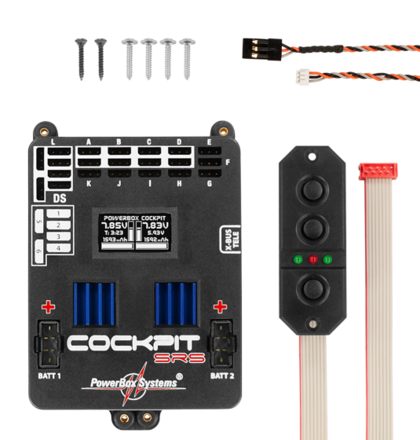

What's included
- PowerBox Cockpit SRS
- 2 patch-leads

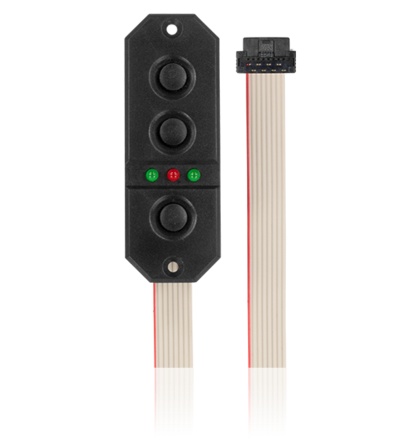

- SensorSwitch
- 4 rubber grommets and brass spacer sleeves, factory-fitted
- 4 retaining screws
- Operating instructions in German and English
