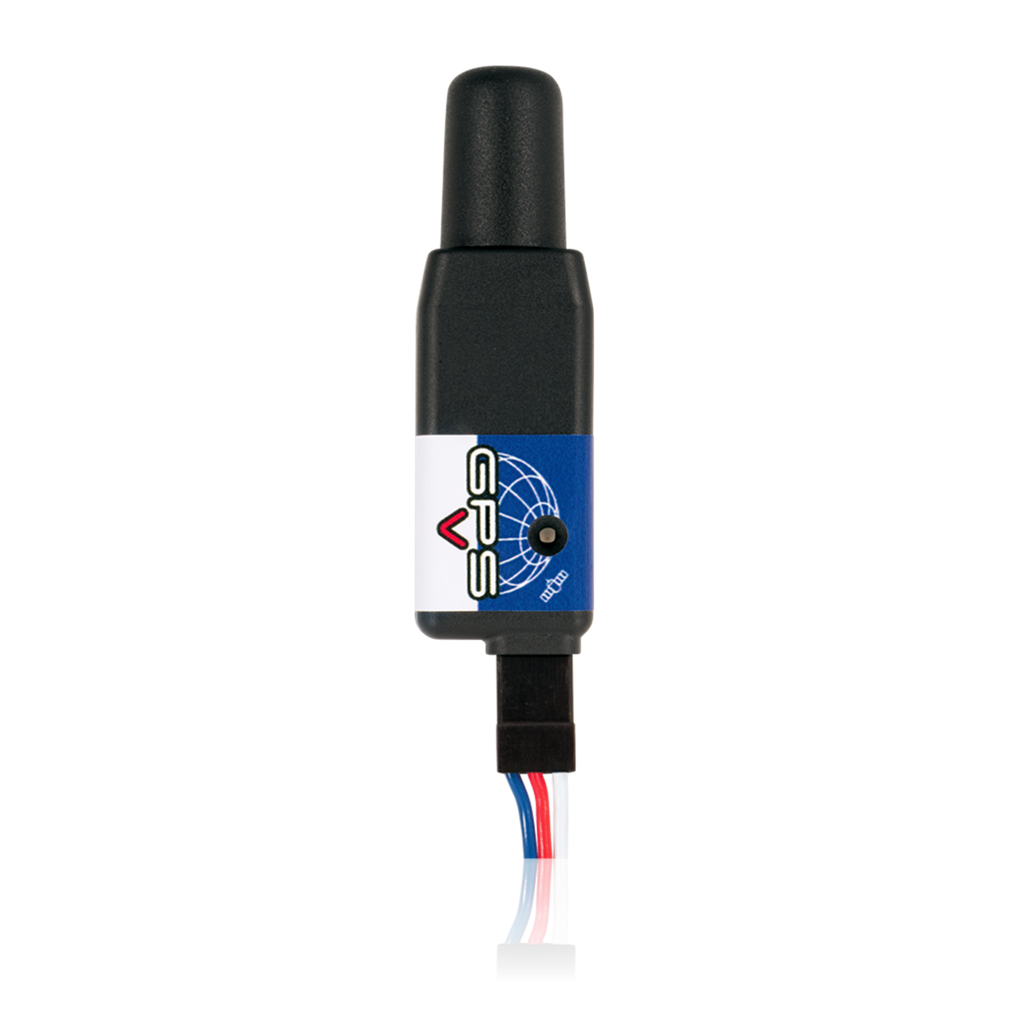

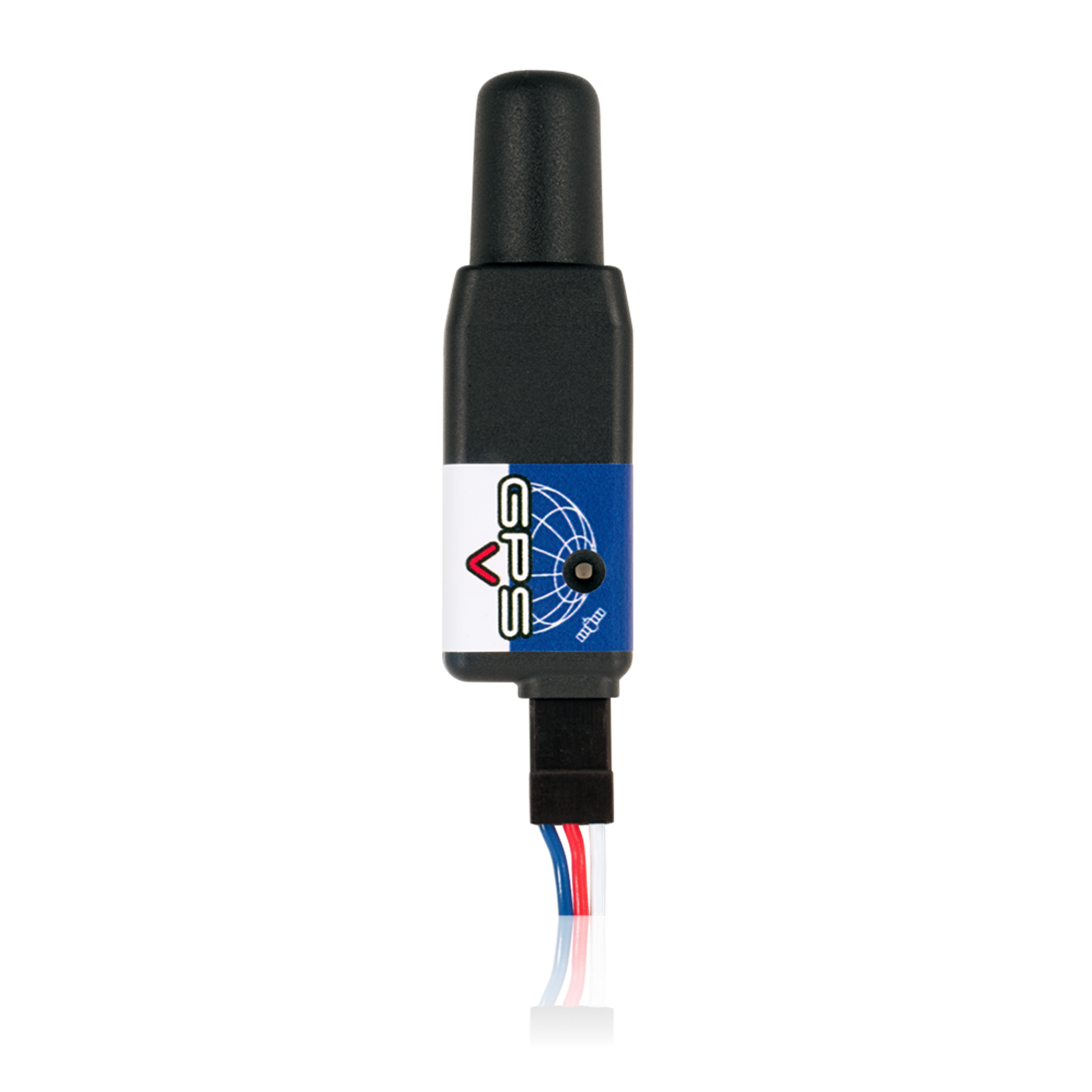

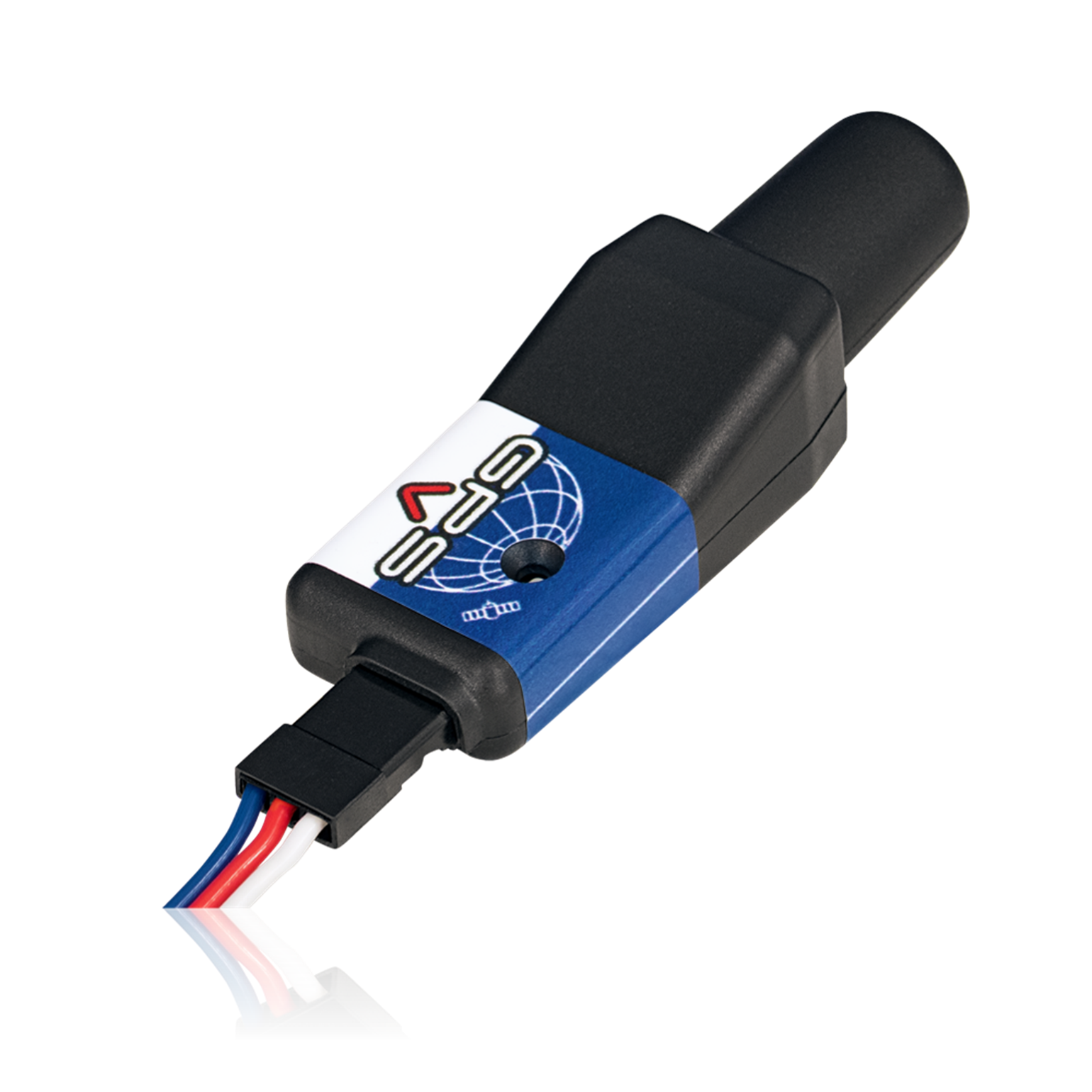

PowerBox GPS V GPS Module with Barometric Sensor
PowerBox GPS V GPS Module with Barometric Sensor
The PowerBox GPS V integrates the latest u-blox MAX10 GPS receiver with a high-precision MEMS barometric altitude sensor for exceptional altitude accuracy with 10 cm resolution. Its helix radial antenna ensures reliable reception in all flight attitudes, while automatic telemetry system recognition provides plug-and-play convenience.
This module delivers real-time climb rate, precise 3D speed, distance, and geo-coordinates, supporting PowerBox P²-BUS, Futaba S.BUS2, Multiplex M-Link, Jeti EX-BUS, and Graupner HoTT systems.
Key Features
| Brand | PowerBox |
| Model | GPS V |
| Product Type | GPS Module with Barometric Sensor |
| Operating Voltage | 4.0 V - 9.0 V |
| Current Drain (Power-on) | max. 60 mA |
| Supported RC Systems | PowerBox P²-BUS, Futaba S.BUS2, Multiplex M-Link, Jeti EX-BUS, Graupner HoTT |
| Max. Horizontal Speed | 1200 km/h |
| Max. Vertical Speed | 360 km/h |
| Barometric Sensor Resolution | 10 cm |
| Dimensions | 60 x 18 x 15 mm |
| Weight | 14 g |
| Temperature Range | -30 °C to +75 °C |
| GPS Receiver | u-blox MAX10 |
| Antenna Type | Helix Radial |
| Telemetry Outputs | 3D Speed, Altitude (GPS + Barometric), Climb Rate, Distance (2D/3D), Geo-coordinates, Satellite Count |
Highlights
- Latest u-blox MAX10 GPS generation
- Integrated high-precision barometric MEMS sensor
- Helix antenna for reception independent of flight attitude
- Automatic recognition of the telemetry system
- Precise 3D speed and altitude measurement
Compatibility
Compatible with PowerBox P²-BUS, Futaba S.BUS2, Multiplex M-Link, Jeti EX-BUS, and Graupner HoTT RC systems.
What's included
- PowerBox GPS V module
- Helix radial antenna
