PowerBox iGyro SAT II
PowerBox iGyro SAT II

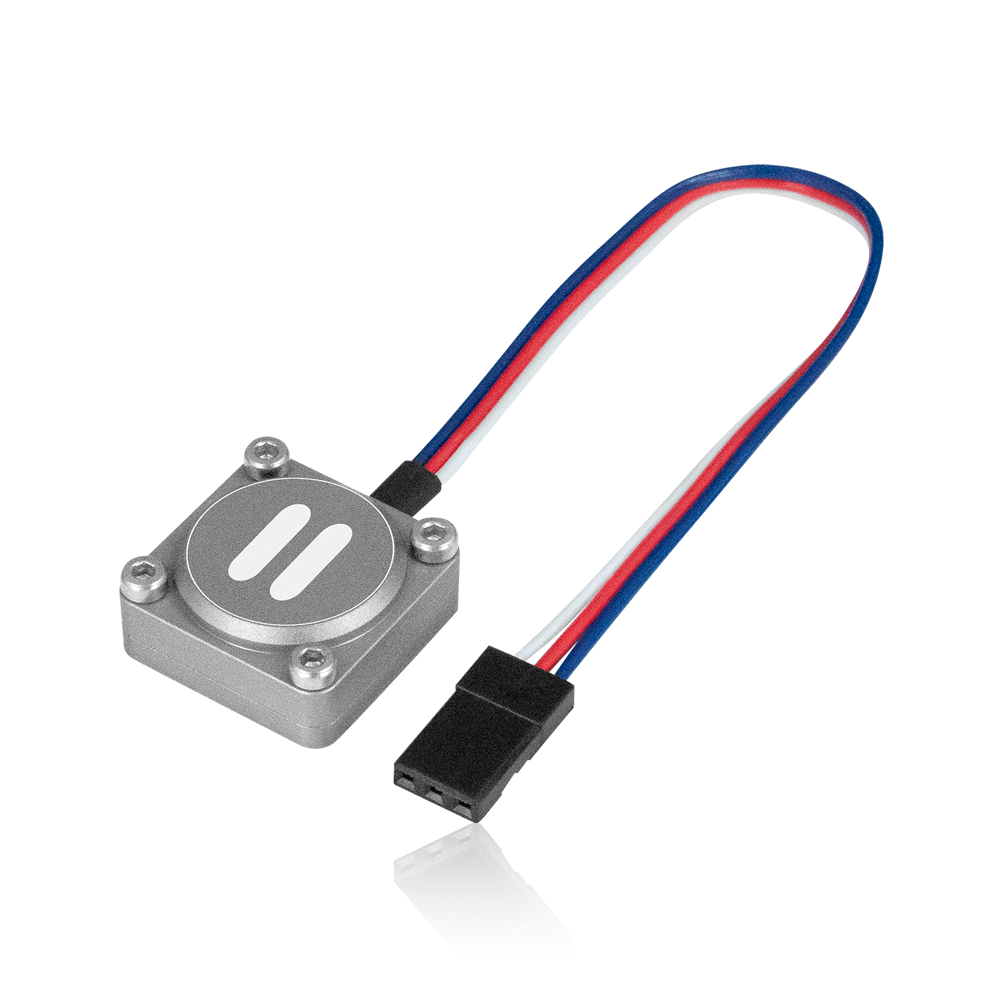

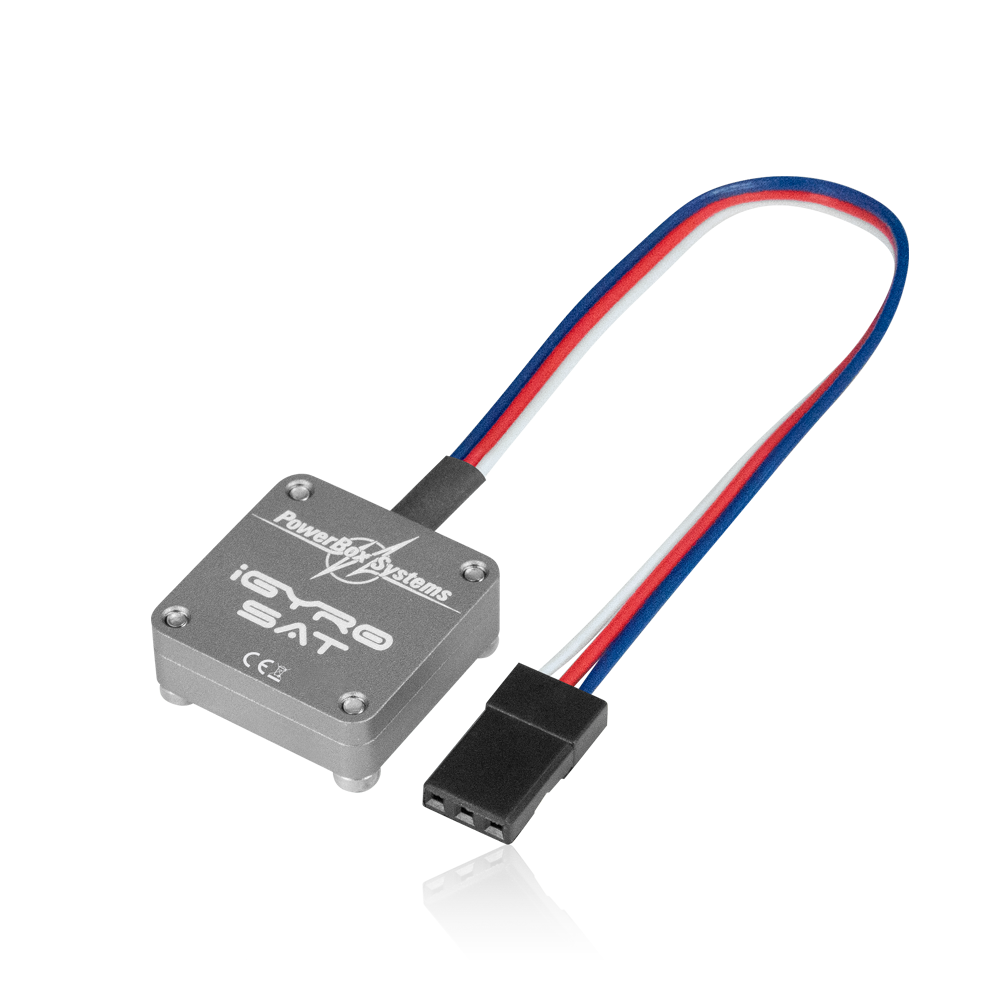

The iGyro SAT II is a compact sensor module designed to add iGyro functionality to PowerBox PBR receivers via a simple Plug 'n' Play connection. It uses an extremely accurate triple-axis MEMS sensor and a special regulatory algorithm for fixed-wing aircraft, outputting data through the FastTrack serial bus.

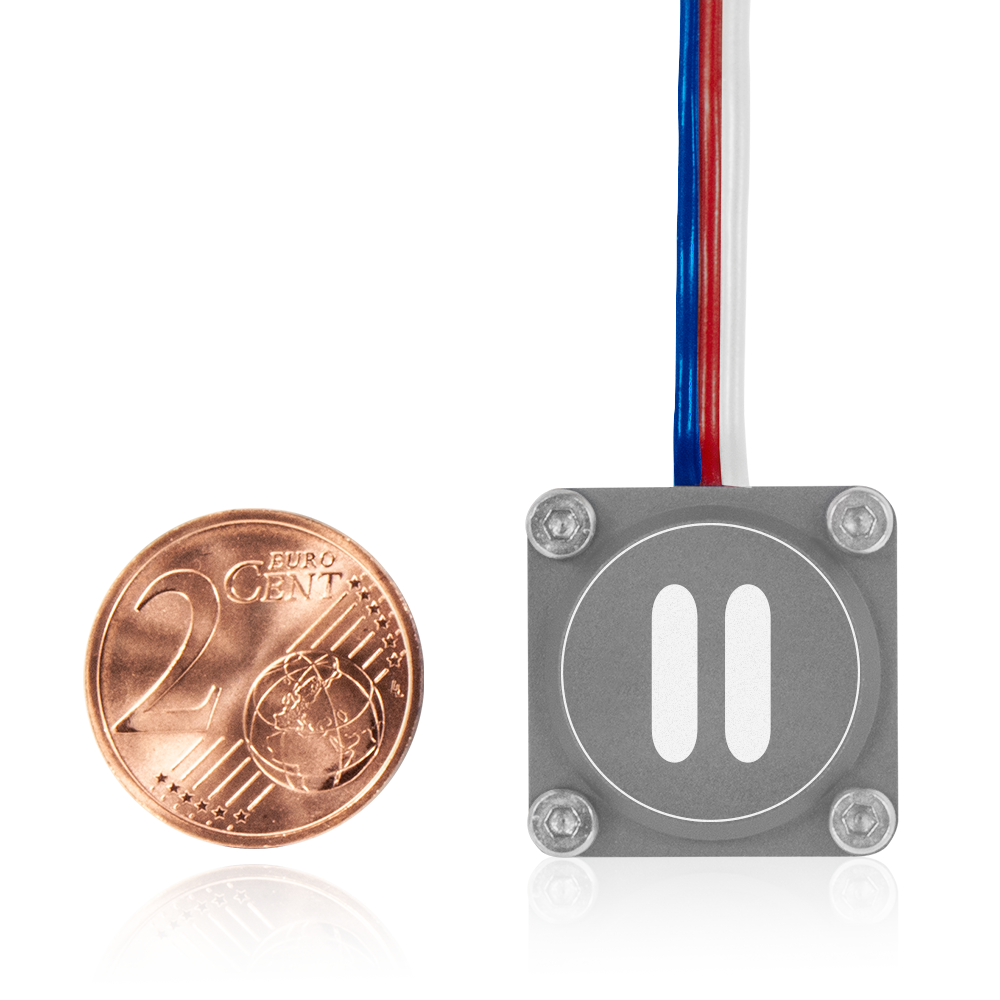

Housed in a robust aluminum case, the module features a 16-bit processor for fast signal processing and supports both Heading and Normal gyro modes. Its small size allows flexible installation anywhere in the model, with the connecting lead extendable to any length.
Key Features
| Operating voltage | 4.0V - 9.0V |
| Current drain Power-on state | 20mA |
| Maximum load current | 20A |
| Signal input | FastTrack Bus |
| Servo sockets | 5 |
| Servo signal resolution | 0.5µs |
| Gyro regulation | Heading- and Normalmode |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Dimensions | 0.79 x 0.79 x 0.31 in |
| Weight | 0.25 oz |
| Temperature range | -30°C to +85°C |
| Brand | PowerBox |
| Product type | Gyro sensor module |
| Material | Aluminum case |
Highlights
- Extremely accurate triple-axis MEMS sensor
- Special regulatory algorithm for fixed-wing model aircraft
- Outputs the new FastTrack serial bus
- Plug and play with all PowerBox receivers
- Installed orientation can be selected
- 16-bit processor for fast, high-resolution signal processing
- Robust aluminium case
