PowerBox MPX Connector Mounting Frame Male 6 Pack
PowerBox MPX Connector Mounting Frame Male 6 Pack

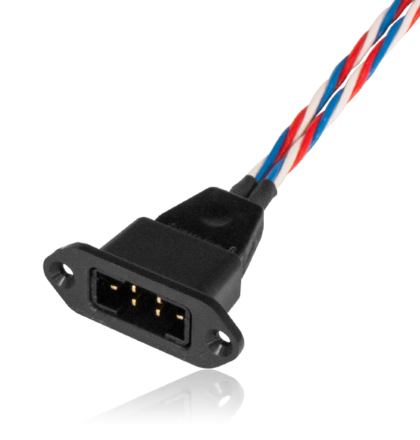

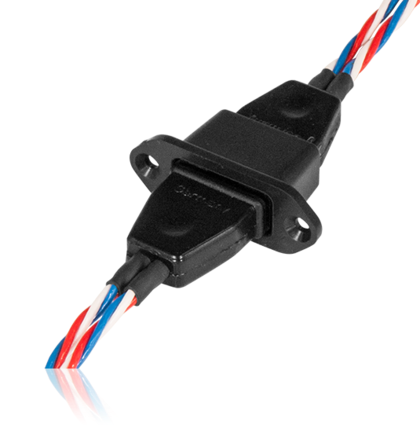

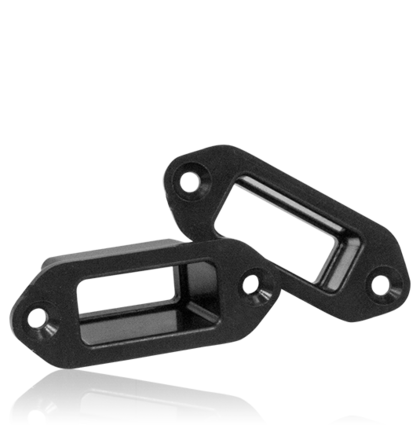

The PowerBox MPX mounting frames are precision-moulded in solid ABS to accommodate all M6 and MPX connectors, including PowerBox MPX leads encapsulated via the hot-melt process. They fit PIK power leads with conductor cross-sections from 0.35mm² to 2.5mm² and all MPX One4two wing connectors. Each set includes 6 frames for plugs or sockets, plus 12 screws for secure fixing with cyano adhesive.
Key Features
| Brand | PowerBox |
| Manufacturer | PowerBox |
| SKU | MPX_Connector_Mounting_Frame_-_Male |
| Product Type | Connector Mounting Frame |
| Gender | Male |
| Compatible Connectors | M6, MPX |
| Material | ABS |
| Quantity per Set | 6 frames, 12 screws |
| Compatible Wire Cross-Sections | 0.35mm² to 2.5mm² |
| Compatible Leads | PowerBox MPX leads (hot-melt encapsulated), PIK power leads, MPX One4two wing connectors |
How to use
Insert the MPX or M6 connector into the frame, align it properly, and apply a small drop of cyanoacrylate adhesive to secure it. Use the included screws to mount the frame to your model or panel.
What's included

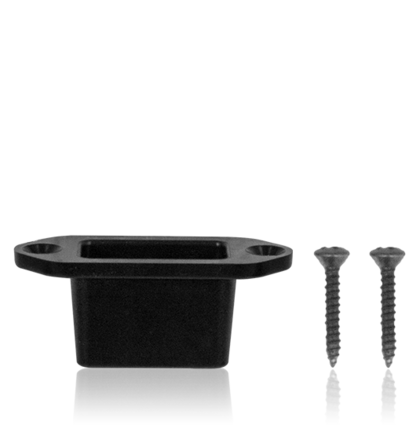

- 6 x MPX connector mounting frames (male)
- 12 x mounting screws
