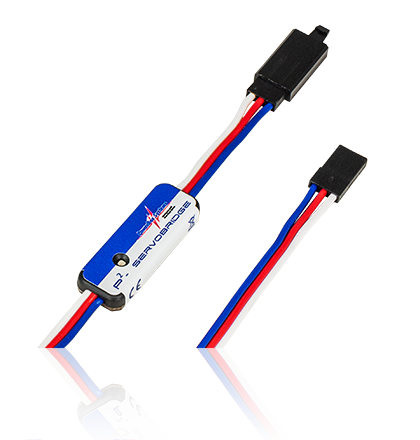

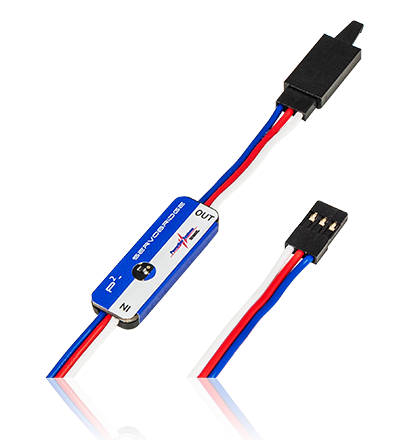

PowerBox P2 Servo Bridge
$62.00 AUD
Sale price
$62.00 AUD
Regular price
Skip to product information
PowerBox
PowerBox P2 Servo Bridge
$62.00 AUD
Sale price
$62.00 AUD
Regular price
In stock
Prices in AUD, GST included for Australian orders.
Fitment helpNot sure what suits your setup? Ask us before you order.
Supported in AustraliaBacked by pilots who fly the schedule
Not sure what you need?
Send us your model and setup and we'll point you at the right part.
Send us your model and setup and we'll point you at the right part.

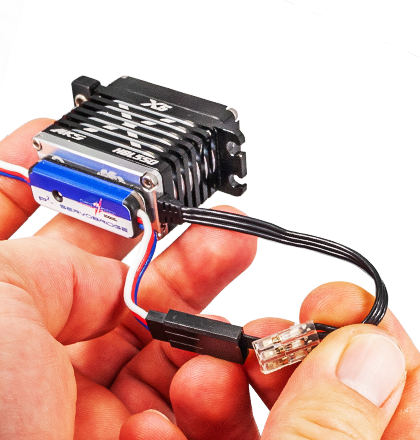

The P2 Servo Bridge is a key component in an innovative bi-directional servo bus technology, enabling individual servo addressing and telemetry feedback including current, voltage, and temperature directly to compatible transmitters.
It features an adjustable electronic fuse, automatic bus system detection, and supports P2-BUS, S.BUS2, SRXL, and PWM signals for versatile use in model aircraft.
Key Features
| Brand | PowerBox |
| Product Type | Servo Bridge |
| Operating Voltage | 4.0V - 10.0V |
| Current Drain (Power-on) | 10mA |
| Maximum Load Current | 20A |
| Signal Input | P²-BUS, S.BUS2, EX-BUS, SRXL, PWM |
| Supported RC Systems | PowerBox, Jeti, Futaba, all with PWM |
| Channels | 26 |
| Servo Sockets | 1 |
| Servo Signal Resolution | 0.5µs |
| Signal Frame Rate | 12ms, 14ms, 16ms, 18ms |
| Supported Telemetry Systems | P²-BUS, S.BUS2, EX-BUS |
| Dimensions | 1.38 x 0.47 x 0.20 in |
| Weight | 0.14 oz |
| Temperature Range | -22°F to +185°F |
Highlights
Bi-directional servo bus communication with telemetry feedback. Adjustable electronic fuse with automatic reset. Compact and lightweight design at 0.14 oz.
Compatibility
Compatible with PowerBox, Jeti, and Futaba radio control systems. Works with P²-BUS, S.BUS2, EX-BUS, SRXL, and PWM signals.
What's included
- 1x P2 Servo Bridge
- 1x Adhesive pad
