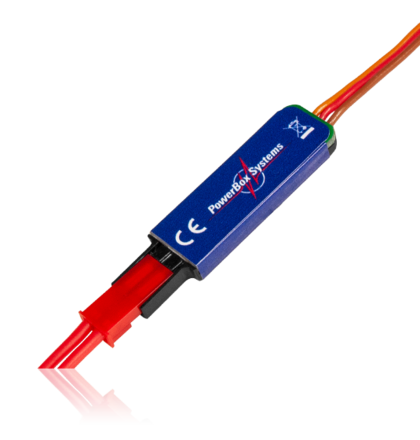

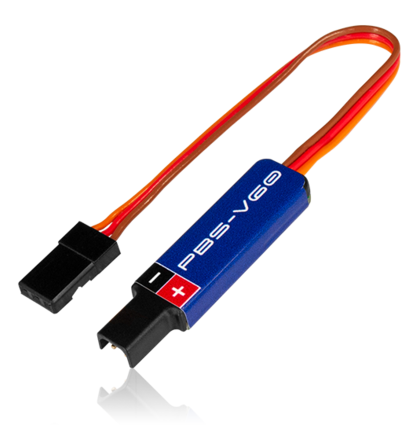

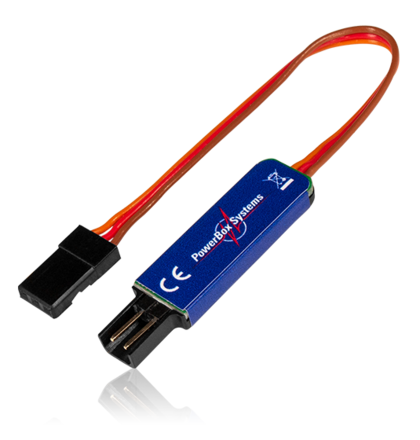

PowerBox PBS-V60 Voltage Sensor
PowerBox PBS-V60 Voltage Sensor
The PBS-V60 is a compact and lightweight voltage sensor designed for use with the PowerBox CORE and other telemetry systems. It plugs directly into the receiver's telemetry input and includes a cable for connection to the battery via soldering or plugging into the connector.
This sensor provides accurate voltage measurement up to 60V, making it a reliable indicator of battery state of charge. Its small size and low weight allow it to be used even in small models.
Key Features
| Brand | PowerBox |
| Model | PBS-V60 |
| Product Type | Voltage Sensor |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on) | max. 20mA |
| Supported RC Systems | PowerBox, Jeti, Multiplex, Graupner, Futaba |
| Dimensions | 1.57 x 0.39 x 0.16 in |
| Weight | 0.14 oz |
| Temperature Range | -22°F to +185°F |
Highlights
- Voltage measurement up to 60V
- Compact size
- Low weight
- Supports the following telemetry systems: PowerBox Core, Jeti, Multiplex M-Link, Graupner HoTT, Futaba
What's included
- PBS-V60 Voltage Sensor
- Connection cable
