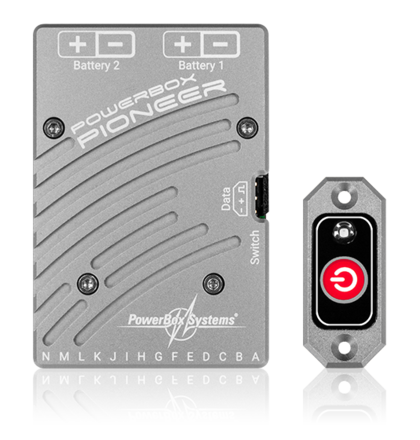

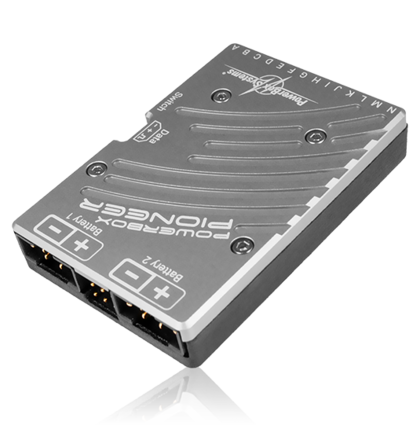

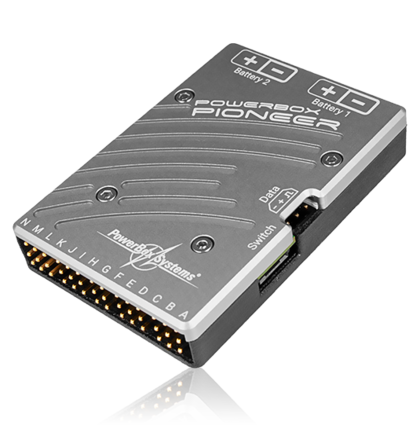

PowerBox Pioneer 14-Channel Power Supply Unit with Micro Switch
PowerBox Pioneer 14-Channel Power Supply Unit with Micro Switch
The PowerBox Pioneer is a compact 14-channel power supply unit designed for HV servos, offering redundancy through duplicated output and switch controller circuitry. Its integrated iGyro technology transforms it into a high-performance 9-axis gyro with the optional iGyro Sat sensor, providing adjustable stick priority, lock-in feel, and gyro characteristics per axis. The unit supports control via PowerBox and Jeti transmitters, or setup using the BlueCom adapter and smartphone app or PC USB interface. With a continuous current capacity of 20A and efficient heat dissipation from its machined aluminium case, the Pioneer delivers reliable performance in a space-saving, ultra-lightweight format.
Key Features
| Operating Voltage | 4.0 - 9.0V |
| Power Supply | 2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current Drain (Power-on State) | 105mA |
| Current Drain (Standby) | 30µA |
| Maximum Load Current | Continuous 2x10A |
| Drop-out Voltage | 0.3V |
| Output Voltage | Unregulated |
| Signal Input | Serial |
| Supported RC Systems | PowerBox, Jeti, Futaba |
| Receiver Redundancy | SRS |
| Channels | 26 |
| Servo Sockets | 14 |
| Servo Signal Resolution | 0.5µs |
| Signal Frame Rate | 10ms, 12ms, 14ms, 16ms, 18ms |
| Gyro Regulation | Heading and Normal mode |
| Gyro Sensor Type | External iGyro Sat |
| Number of Sensor Axes | 9 |
| Supported Telemetry Systems | P²BUS, Ex-Bus, S.BUS2 |
| Dimensions | 2.48 x 1.73 x 0.47 in |
| Weight | 1.41 oz |
| Weight (Sensor Switch) | 0.21 oz |
| Temperature Range | -22°F to +167°F |
| Brand | PowerBox |
| Product Type | RC Power Supply Unit |
| Material | Aluminium |
Highlights
- 14 channels
- High-performance battery backer with high continuous load capacity
- Duplicated circuitry for the entire power electronics
- Redundant electronic switch
- All features can be controlled using PowerBox and Jeti transmitters
- All systems can be operated using BlueCom or PowerBox USB
- Integrated iGyro technology of the latest type, with iGyro Sat as gyro sensor
- Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
- Special regulatory algorithm for fixed-wing models
- Detects all transmitter mixers
- Ultra-simple gyro programming in just a few minutes
- Optional GPS mode for speed-dependent gyro compensation
- Telemetry data for PowerBox P²BUS, Jeti Ex-BUS and Futaba S.BUS2
- Transmission of voltage, current, capacity, lost frames and holds
- User-variable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
- Suppression of servo feedback currents
- Ultra-modern 32-bit micro-processor ensures swift, accurate signal processing
- Efficient heat dissipation via the high-quality machined and anodised aluminium case
- Machined and anodised aluminium switch housing
- Space-saving low-profile format
- Ultra-lightweight construction
How to use
Connect the PowerBox Pioneer to a 2S LiPo/LiIon, 2S LiFePo, or 5S NiCd/NiMH battery. For gyro functionality, plug in the optional iGyro Sat sensor. Configure settings via a compatible PowerBox or Jeti transmitter, or use the BlueCom adapter with the smartphone app or a PC with the USB interface.
What's included
- PowerBox Pioneer

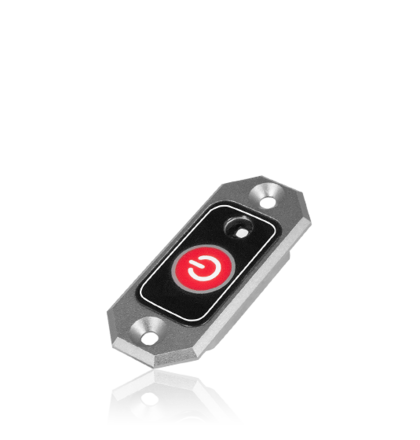

- MicroSwitch
- 2 patch leads
- 1 double-sided self-adhesive pad
- Operating instructions in German and English
