PowerBox PowerBus Lead 5m
$32.00 AUD
Sale price
$32.00 AUD
Regular price
Skip to product information
PowerBox
PowerBox PowerBus Lead 5m
$32.00 AUD
Sale price
$32.00 AUD
Regular price
In stock
Prices in AUD, GST included for Australian orders.
Fitment helpNot sure what suits your setup? Ask us before you order.
Supported in AustraliaBacked by pilots who fly the schedule
Not sure what you need?
Send us your model and setup and we'll point you at the right part.
Send us your model and setup and we'll point you at the right part.

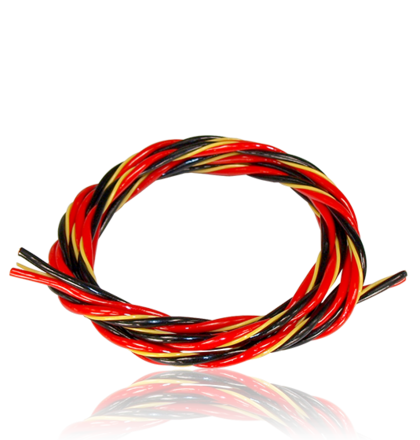

The PowerBus cable from PowerBox-Systems is an extremely flexible, high-current three-core lead designed for advanced servo wiring in RC models. Its special aviation-grade insulation is fire-resistant, heat-tolerant, and virtually indestructible, while reducing weight by about 30% compared to standard PVC.
With two thick 1.5 mm² power wires and a thin 0.25 mm² signal wire, the cable saves an additional 27% in weight. The PowerBus system transmits digital positional data for multiple servos over a single signal wire, simplifying wiring and reducing overall weight, with short-circuit protection on servo distributors ensuring uninterrupted operation.
Key Features
| Brand | PowerBox |
| Manufacturer | PowerBox-Systems |
| Cable Type | PowerBus Lead |
| Length | 5 m |
| Conductor Cross-Section (Power) | 1.5 mm² |
| Conductor Cross-Section (Signal) | 0.25 mm² |
| Insulation Material | Aviation-grade special material |
| Fire Resistance | Yes |
| Weight Reduction vs PVC | Approximately 30% |
| Additional Weight Saving | 27% via differential conductor thickness |
| Compatibility | PowerBox servo bus systems |
Materials & care
The cable features aviation-grade insulation that is durable and fire-resistant. Avoid sharp bends or excessive tension. Store in a dry, cool place.
How to use
Connect the PowerBus cable between a PowerBox servo distributor and servos or adapters. Ensure the signal wire is correctly oriented. For servos without a decoder, use a PowerBus to PWM adapter.
