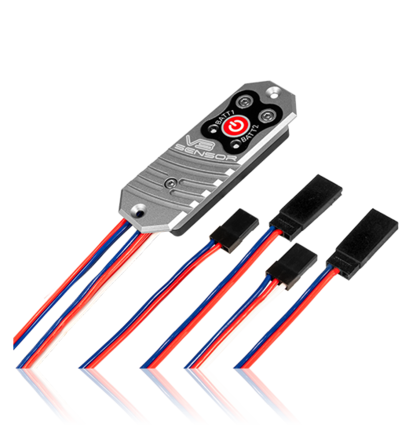

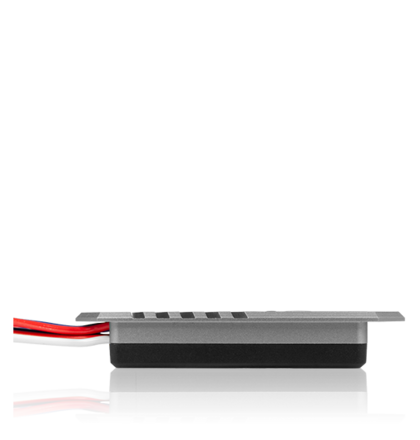

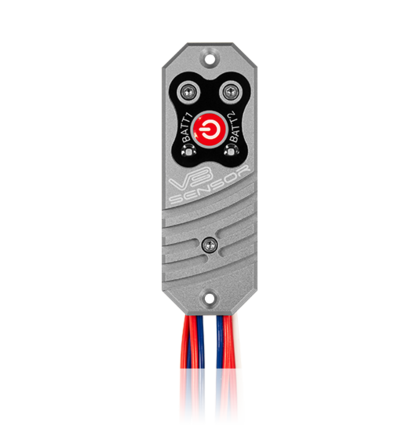

PowerBox Sensor V3 JR/JR Battery Backer
PowerBox Sensor V3 JR/JR Battery Backer
The PowerBox Sensor V3 is a high-performance battery backer designed for small to medium-sized models, featuring a compact and ultra-light aluminium case that enhances cooling efficiency. It offers user-selectable regulated output voltages of 6.0V or 7.8V to suit standard or HV servos, with redundant switch and regulator circuitry for reliable operation.
Supporting four battery types including 2s LiPo, LiIon, LiFePo, and 5s NiMH, the unit provides separate RGB LED voltage indicators for each battery and telemetry compatibility with CORE systems. The Sensor V3 handles peak loads over 20A and suppresses servo feedback currents for stable performance.
Key Features
| Brand | PowerBox |
| Model | Sensor V3 JR/JR |
| Product Type | Battery Backer |
| Operating Voltage | 4.0V - 9.0V |
| Power Supply | 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMh |
| Current Drain (Power-on) | 30mA |
| Current Drain (Standby) | 10µA |
| Maximum Load Current | Peak 2x 10A |
| Drop-out Voltage | 0.25V |
| Output Voltage | 6.0V/7.8V regulated |
| Dimensions | 65 x 26 x 11mm |
| Weight | 30 grams |
| Temperature Range | -30°C to +105°C |
| Case Material | Aluminium (machined, anodised) |
| LED Indicators | RGB per battery |
| Telemetry Support | CORE systems |
| Battery Types Supported | 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMH |
Highlights
- High-performance battery backer
- Ultra-light unit, compact format
- Double regulated output voltage
- Redundant switch and regulator circuitry
- User-selectable output voltage: 6.0V or 7.8V
- Separate RGB LED voltage indicators for each battery
- Telemetry support for CORE systems
- Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
- Regulator monitoring
- Suppression of servo feedback currents
