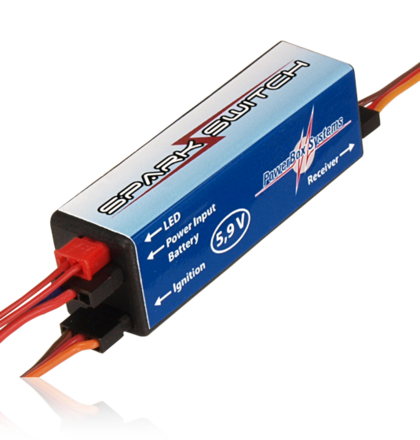

PowerBox Spark Switch 5.9V
$81.00 AUD
Sale price
$81.00 AUD
Regular price
Skip to product information
PowerBox
PowerBox Spark Switch 5.9V
$81.00 AUD
Sale price
$81.00 AUD
Regular price
In stock
Prices in AUD, GST included for Australian orders.
Fitment helpNot sure what suits your setup? Ask us before you order.
Supported in AustraliaBacked by pilots who fly the schedule
Not sure what you need?
Send us your model and setup and we'll point you at the right part.
Send us your model and setup and we'll point you at the right part.
The SparkSwitch is a reliable, high-performance ignition switch that turns the ignition circuit on and off from the transmitter. It is immediately ready for use with no setup required, and features linear stabilisation with an output voltage of 5.9V, suitable for all ignition types.
The unit automatically detects when the receiving system is off and draws no current, eliminating the need for an additional battery switch. An opto-coupler isolates receiver and ignition power circuits to prevent interference.
Key Features
| Brand | PowerBox |
| Product Type | Ignition Switch |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on) | 19mA |
| Current Drain (Standby) | 0.2μA |
| Maximum Load Current | 2A |
| Output Voltage | 5.9V / 7.4V / 12.0V |
| Signal Input | PWM |
| Dimensions | 2.20 x 0.75 x 0.63 in |
| Weight | 0.78 oz |
| Temperature Range | -22°F to +167°F |
Highlights
- Linear stabilised output at 5.9V
- Auto power-off when receiver is off
- Opto-coupler isolation prevents interference
- Includes LED and mounting hardware
What's included
- SparkSwitch unit
- Two connecting leads
- Ultra-bright 5mm LED with mount
