PowerBox Spark Switch RS 6V Regulated
PowerBox Spark Switch RS 6V Regulated

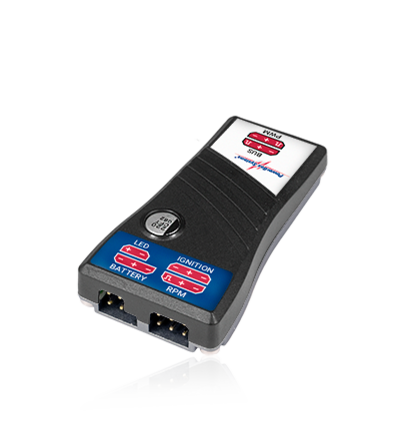

The PowerBox SparkSwitch RS 6V Regulated is a compact ignition switch with rotational speed monitoring and voltage regulation for 6V systems. It allows convenient on/off control from the transmitter, with status indicated via an external LED or telemetry message.
Galvanic separation between the receiver and ignition system prevents interference, while the RPM monitor connects directly to most ignition units or an optional sensor. The regulated variant reduces input voltage up to 9.0V to a stable 6.0V output.
Key Features
| Brand | PowerBox |
| Product Type | Ignition Switch |
| Operating Voltage | 4.0 to 12.6V |
| Current Drain (Power-on) | 19mA |
| Current Drain (Standby) | 0.2μA |
| Maximum Load Current | 2A Maximum |
| Output Voltage | 6.0V Regulated |
| Signal Input | PWM |
| Dimensions | 2.20 x 1.14 x 0.39 in |
| Weight | 0.53 oz |
| Temperature Range | -22°F to +221°F |
| Galvanic Isolation | Yes |
| RPM Monitoring | Yes |
| Telemetry Compatibility | PowerBox, Jeti, Futaba, Graupner, Multiplex, Spektrum, JR |
| Failsafe Mode | Yes |
| Housing Material | Machined Aluminum |
How to use

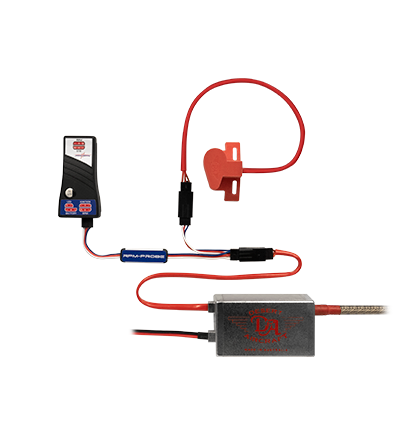

Connect the SparkSwitch RS between your receiver and ignition system. Use the transmitter to switch the ignition on or off. The external LED indicates the switch state. For RPM monitoring, connect the Tacho output of your ignition unit to the RPM input, or use the optional RPM-Probe sensor.
What's included
- PowerBox SparkSwitch RS 6V Regulated
- External LED with cable
- Connector cables
- Instruction manual
