PowerBox SparkSwitch RS Unregulated Ignition Switch

Name: PowerBox SparkSwitch RS Unregulated Ignition Switch
Brand: PowerBox
Price: 114.4 AUD
Availability: InStock

$114.40 AUD

In stock

Prices in AUD, GST included for Australian orders.

Fitment helpNot sure what suits your setup? Ask us before you order.

Supported in AustraliaBacked by pilots who fly the schedule

Not sure what you need?
Send us your model and setup and we'll point you at the right part.

Download manual (PDF)

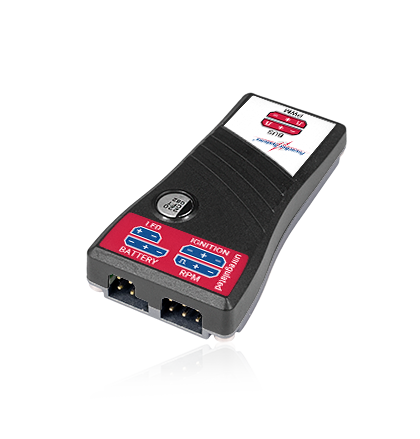

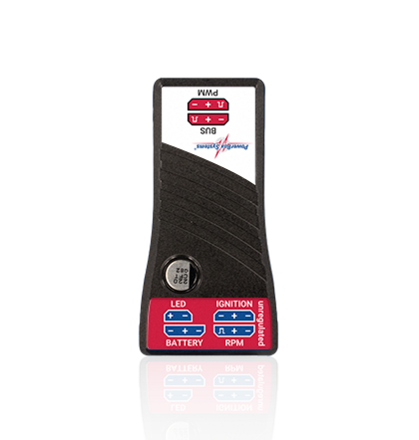

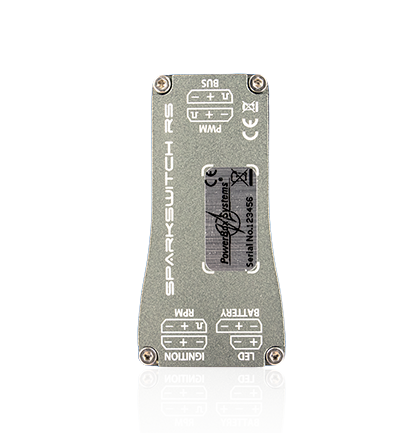

The PowerBox SparkSwitch RS Unregulated is a compact ignition switch with rotational speed monitoring and galvanic isolation between the receiver and ignition system. It allows convenient on/off control from the transmitter, with status indicated by an external LED or telemetry message. The unregulated version passes the full input voltage up to 13.0V, and the RPM monitor works with all major telemetry systems including PowerBox, Jeti, and Futaba. A machined aluminium heatsink ensures reliable operation in demanding conditions.

Key Features

Brand	PowerBox
Product Type	Ignition Switch
Model	SparkSwitch RS Unregulated
Operating Voltage	4.0 to 12.6V
Current Drain (Power-on)	19mA
Current Drain (Standby)	0.2μA
Maximum Load Current	max. 2A
Output Voltage	Unregulated
Signal Input	PWM
Dimensions	2.20 x 1.14 x 0.39 in
Weight	0.53 oz
Temperature Range	-30°C to +105°C
Galvanic Isolation	Yes
RPM Monitoring	Yes
Telemetry Compatibility	PowerBox, Jeti, Futaba, Graupner, Multiplex, Spektrum, JR
Failsafe Mode	Yes
Housing Material	Machined Aluminium

How to use

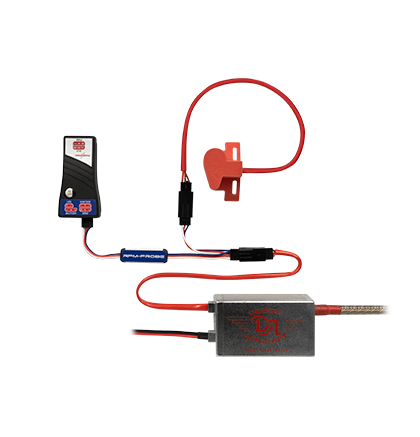

Connect the SparkSwitch RS Unregulated between your receiver and ignition system. Use the PWM signal input to control the switch from your transmitter. For RPM monitoring, connect the Tacho output of your ignition unit to the RPM input, or use a separate RPM-Probe sensor if no Tacho socket is available.
