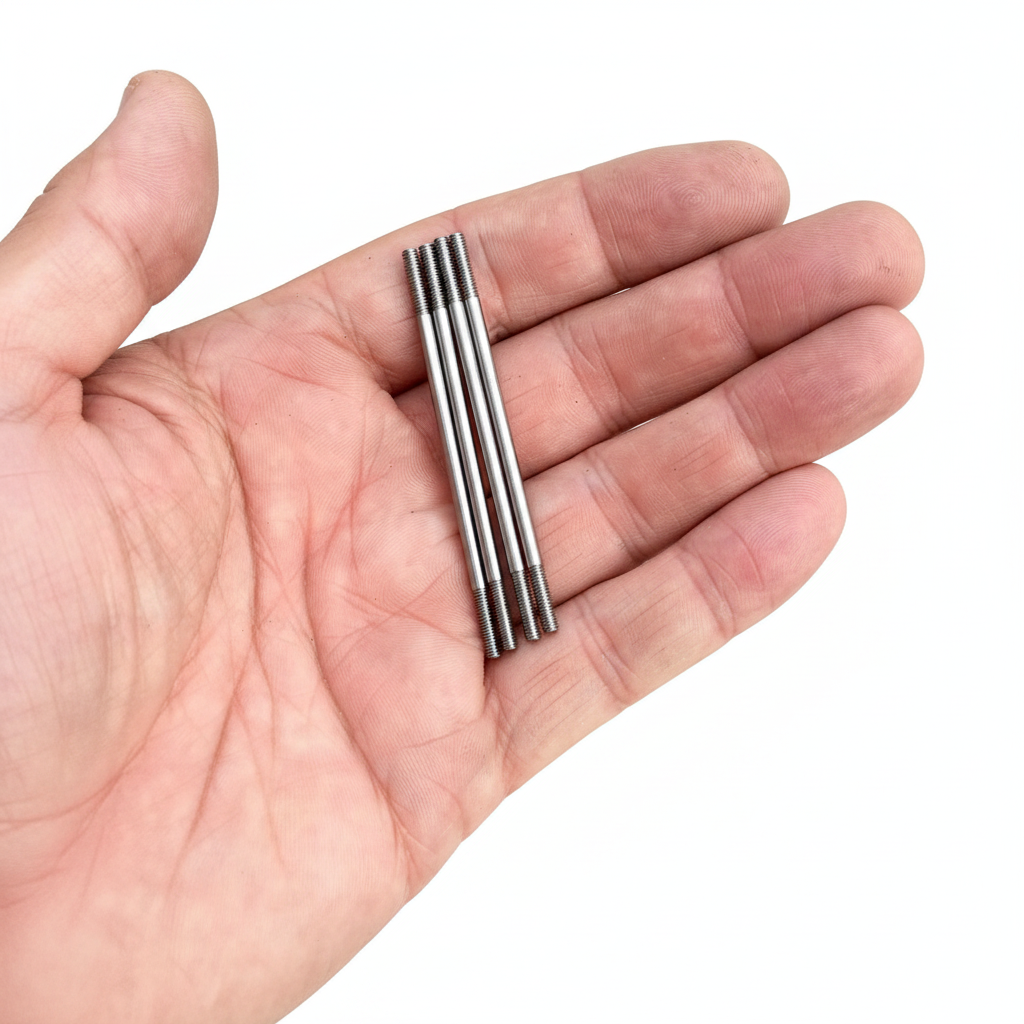

Precision Aero Products 2.5mm titanium links, M2.5 thread cut 10mm at each end, four links held in a hand for scale

Precision Aero Products Titanium Link 2.5mm

Up to 60mm
$15.00 AUD
$15.00 AUD
Skip to product information
Precision Aero Products 2.5mm titanium links, M2.5 thread cut 10mm at each end, four links held in a hand for scale
  • Precision Aero Products 2.5mm titanium links, M2.5 thread cut 10mm at each end, four links held in a hand for scale

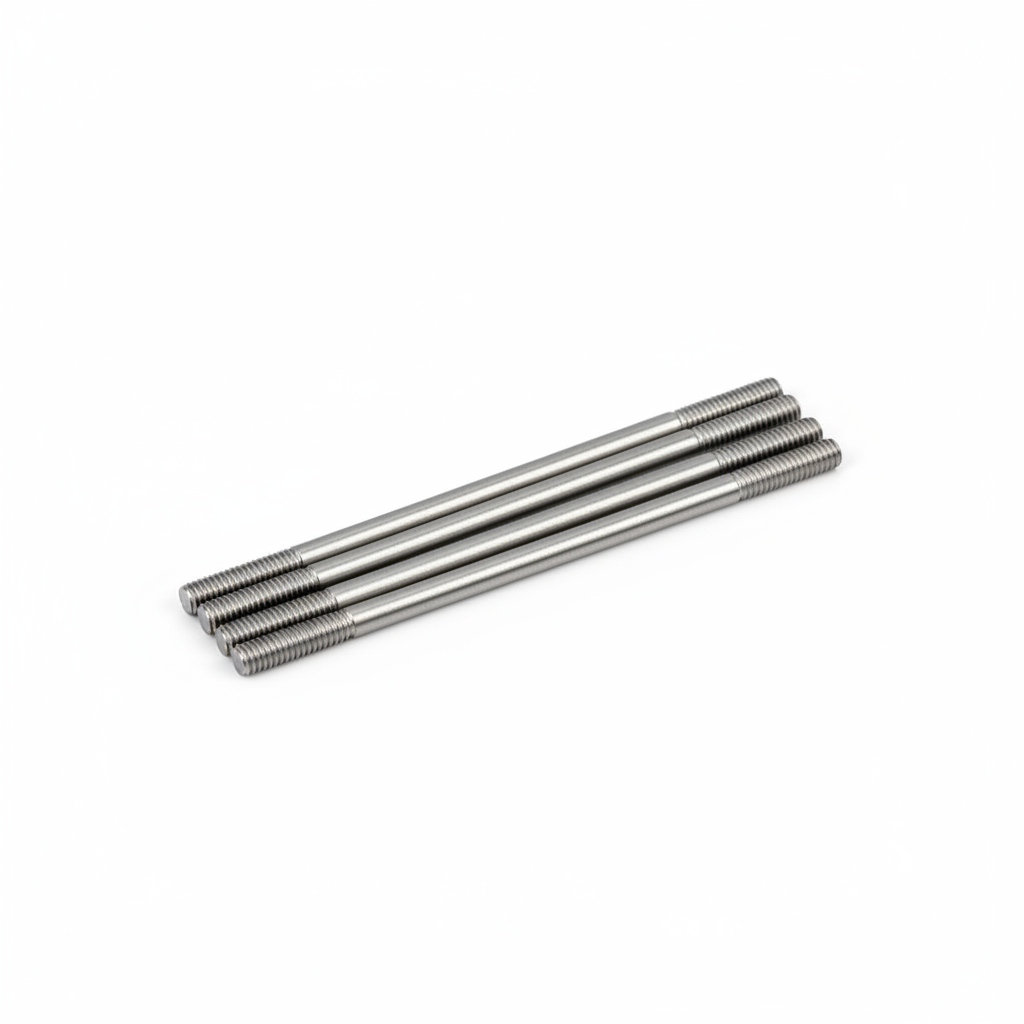

  • Four Precision Aero Products 2.5mm titanium links on white, showing the cut M2.5 threads at each end

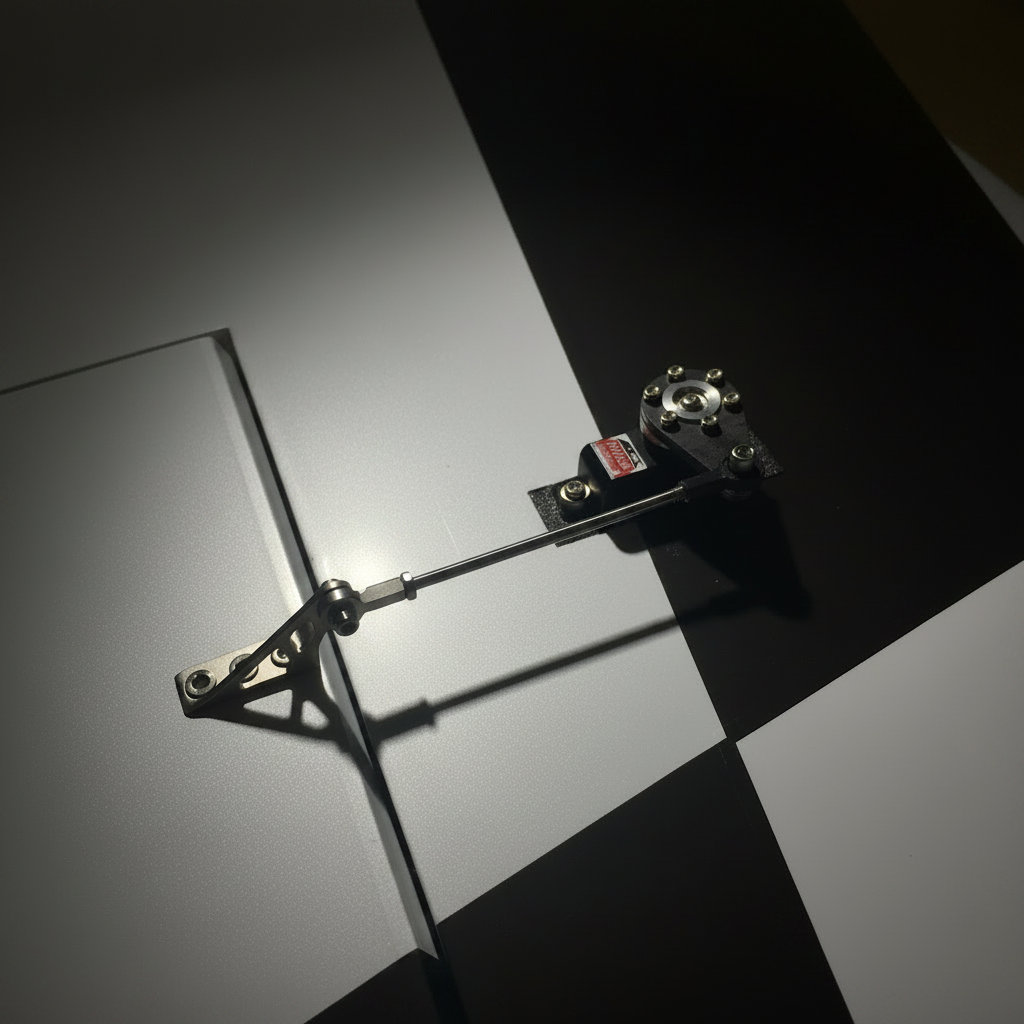

  • Titanium link between servo arm and control horn with 2.5mm dual axis ball ends at each end, showing the centre-to-centre measurement

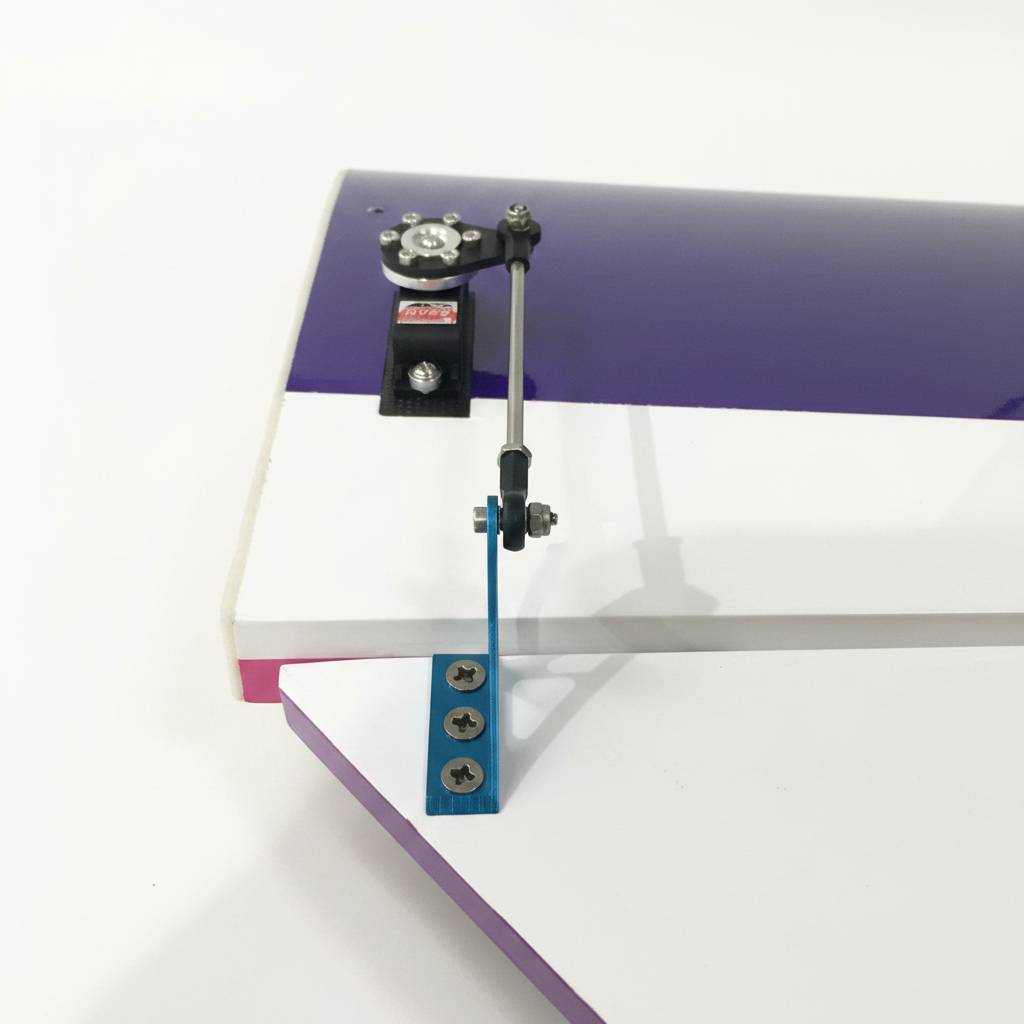

  • Titanium link fitted on an elevator with 2.5mm dual axis ball ends, MKS HV69 servo and control horn, seen from above

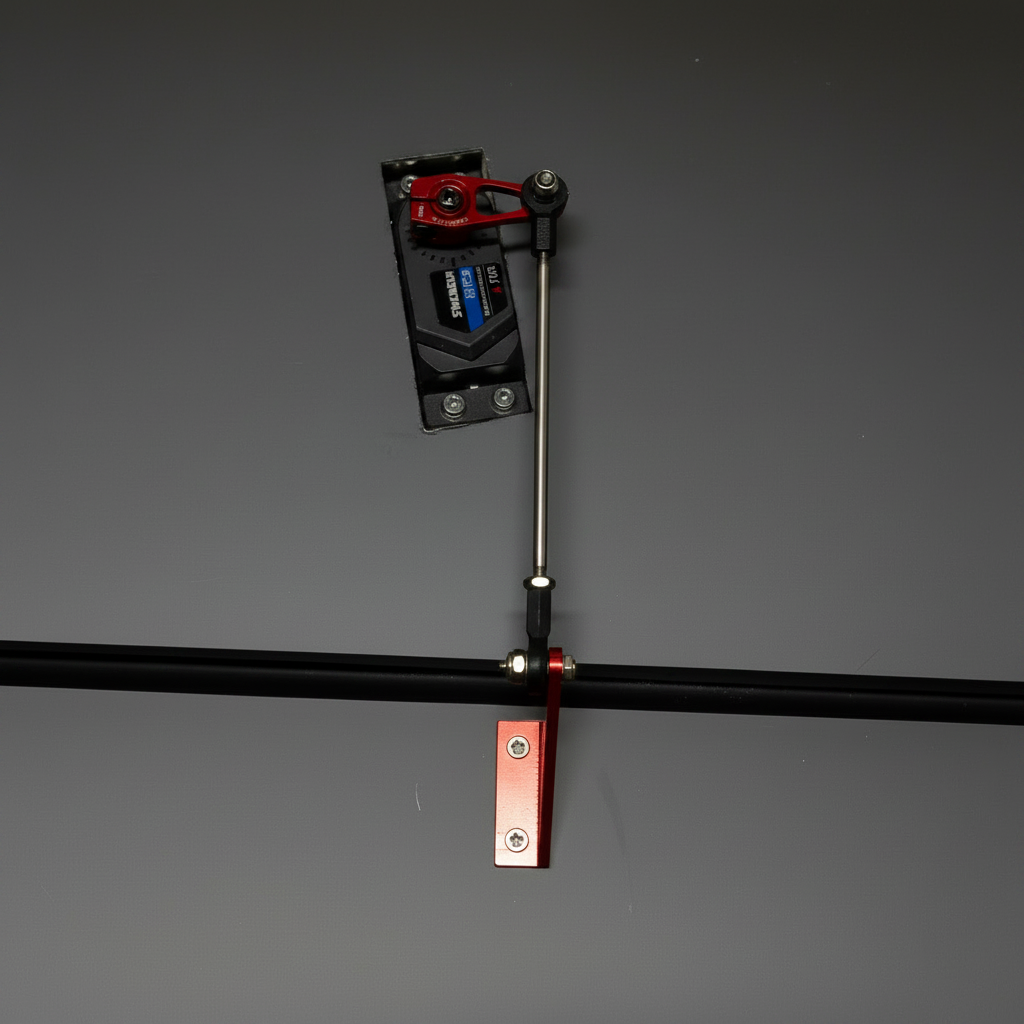

  • Titanium link installed on an aileron with 2.5mm dual axis ball ends between a Futaba HPS servo and a red control horn

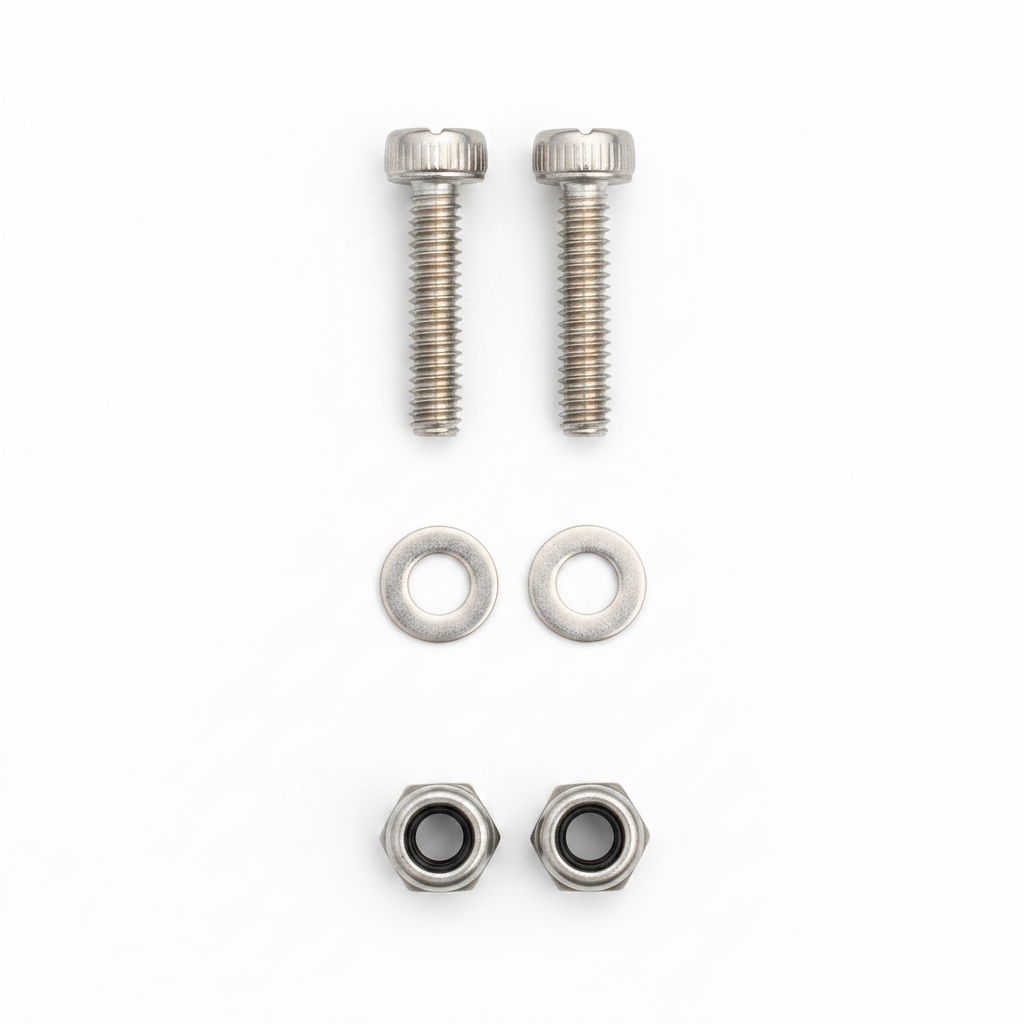

  • Optional add-on: M2 mounting hardware set, two M2 x 10mm stainless cap head screws, flat washers and nyloc nuts, ticked on the link page

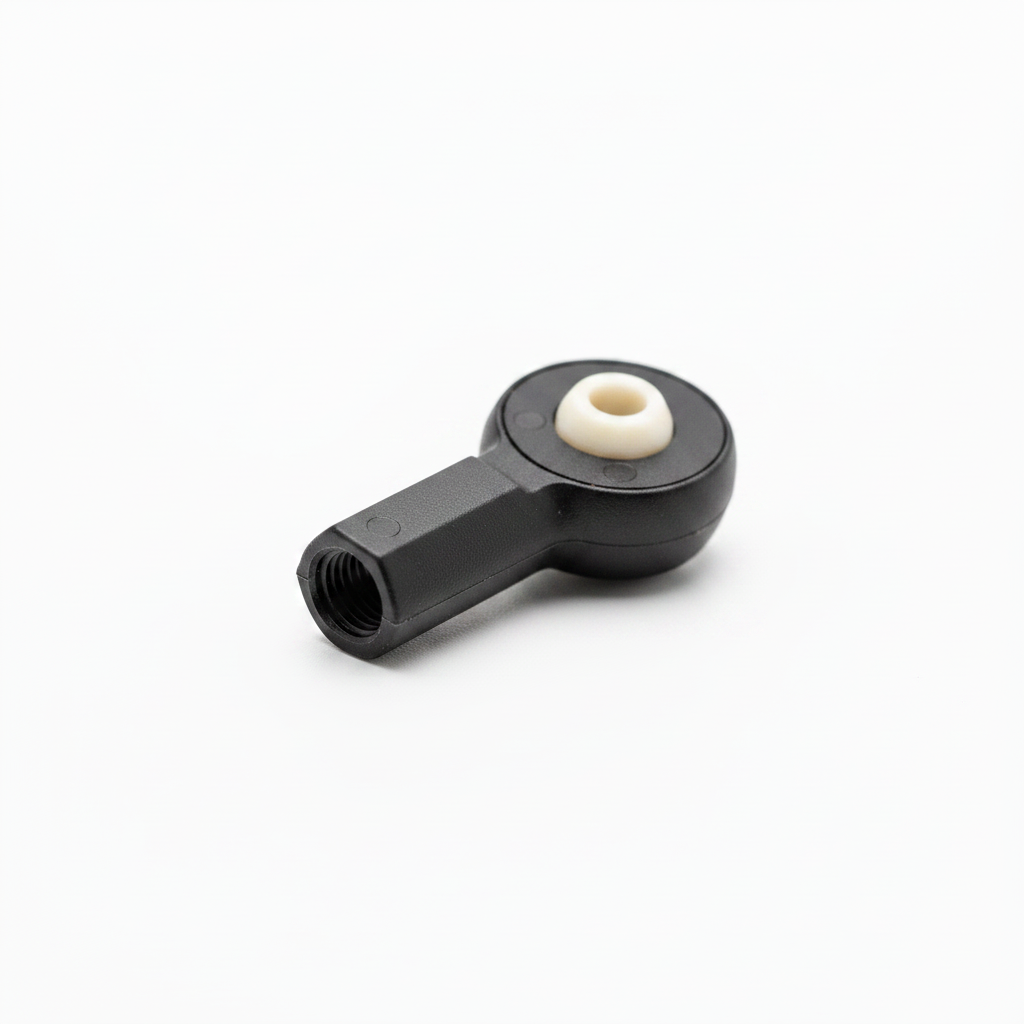

  • Optional add-on: Precision Aero Products 2.5mm dual axis ball end, two per link, ticked on the link page
Precision Aero Products Titanium Link 2.5mm
Precision Aero ProductsMade in Australia

Precision Aero Products Titanium Link 2.5mm

$15.00 AUD
$15.00 AUD
Length

Enter the centre-to-centre measurement and we will work out the link length and price.
In stock

Prices in AUD, GST included for Australian orders.

Fitment helpNot sure what suits your setup? Ask us before you order.
Supported in AustraliaBacked by pilots who fly the schedule
Not sure what you need?
Send us your model and setup and we'll point you at the right part.

The Precision Aero Products Titanium Link is a made-to-order pushrod link for F3A pattern models. Each link is made in-house from 2.5mm titanium rod with 10mm of M2.5 thread on each end. The threads are cut, not rolled, so they run true on the ball end and hold their form. Sold as a single link, made to the length you specify, for a slop-free linkage with our Precision Aero Products 2.5mm Dual Axis Ball Ends.

How to order

  1. Fit your servos and control horns first and set the surface to neutral. Lengths vary from build to build, even on the same airframe, so order once you can measure.
  2. Measure from the centre of the servo arm hole to the centre of the control horn hole.
  3. Enter that distance in the field above. We take 10mm off for the two ball ends and make the link to that length. The price band follows the finished link length.
  4. Tick the boxes if you want the two ball ends supplied with the link, and the M2 mounting hardware to fit them.

One link per surface, with a ball end at each end. Ailerons take one link per side, and most CK Aero models use a link on the rudder as well.

Specifications

  • Material: 2.5mm titanium rod
  • Thread: M2.5, 10mm each end, cut not rolled
  • Link length: up to 120mm, or 130mm between centres
  • Price bands: up to 60mm, 61-90mm and 91-120mm link length
  • Fits: Precision Aero Products 2.5mm Dual Axis Ball Ends
  • Options: two 2.5mm dual axis ball ends and the M2 mounting hardware set, added to your cart with the link
  • Made: to order, in-house, Australia

Not sure of your measurement? Send us the figure and the model and we will check it before we cut.

Link only unless you tick the ball end and hardware options. Two ball ends per link.
