EMCOTEC DPSI Micro Dual Battery 5.9V/7.2V F3A Edition Digi Switch 1-Pack
EMCOTEC DPSI Micro Dual Battery 5.9V/7.2V F3A Edition Digi Switch 1-Pack

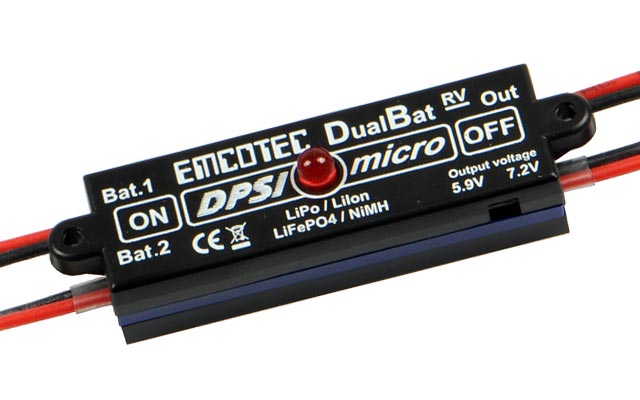

The EMCOTEC DPSI Micro Dual Battery F3A Edition is a compact LiPo regulator with a magnetic switch and selectable output voltage. It supports 5/6 cell NiCad/NiMH, LiIon/LiPo, and LiFePo4 batteries, delivering a regulated 5.9V or 7.2V output. Designed for models up to 2 meters wingspan, it handles up to 10 servos with 4A continuous and 25A peak current. The unit includes dual battery JR connectors, gold-plated FCI contacts, and a switching magnet for contactless operation.
Contents include the DPSI Micro Dual Battery, switching magnet with EMCOTEC tag, screws, screwing collar, drilling template, vibration protection, and a quick reference guide. Weight is 26 grams.
Key Features
| Brand | EMCOTEC |
| Manufacturer | EMCOTEC |
| Model Number | DPSI Micro Dual Battery 5.9V/7.2V F3A Edition |
| Product Type | LiPo Regulator with Magnetic Switch |
| Output Voltage | 5.9V or 7.2V (selectable) |
| Input Battery Types | 5/6 cell NiCad/NiMH, LiIon/LiPo, LiFePo4 |
| Continuous Current | 4A |
| Peak Current | 25A |
| Max Servos Supported | 10 |
| Switching Type | Contactless magnetic switch |

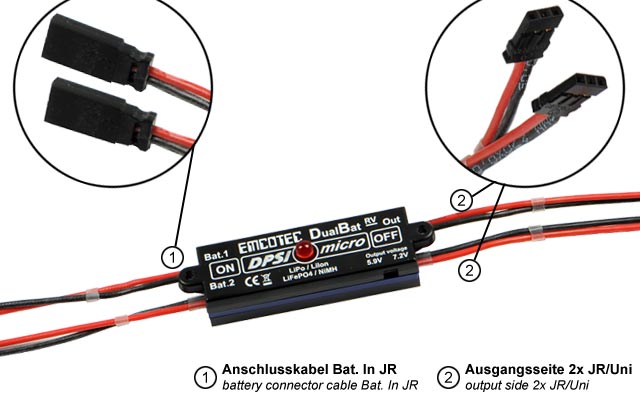

| Connectors (Input) | Dual JR sockets with 0.5 mm²/AWG21 silicone strand |
| Connectors (Output) | Dual JR/Uni connectors with 0.5 mm²/AWG21 silicone strand, gold-plated FCI contacts |
| Weight | 26 g (0.92 oz) |
| Suitable For | Small engine models up to 2 m wingspan, gliders up to 3 m wingspan, impeller jets, helicopters |
How to use
Connect the input to a compatible battery (5/6 cell NiCad/NiMH, LiIon/LiPo, or LiFePo4). Select the desired output voltage (5.9V or 7.2V) via programming. Use the included magnet to switch the unit on or off contactlessly. Connect the output to your receiver and servos using the provided JR/Uni connectors.
What's included
- DPSI Micro Dual Battery
- Switching magnet with EMCOTEC tag
- Screws
- Screwing collar
- Drilling template
- Vibration protection
- Quick reference guide
