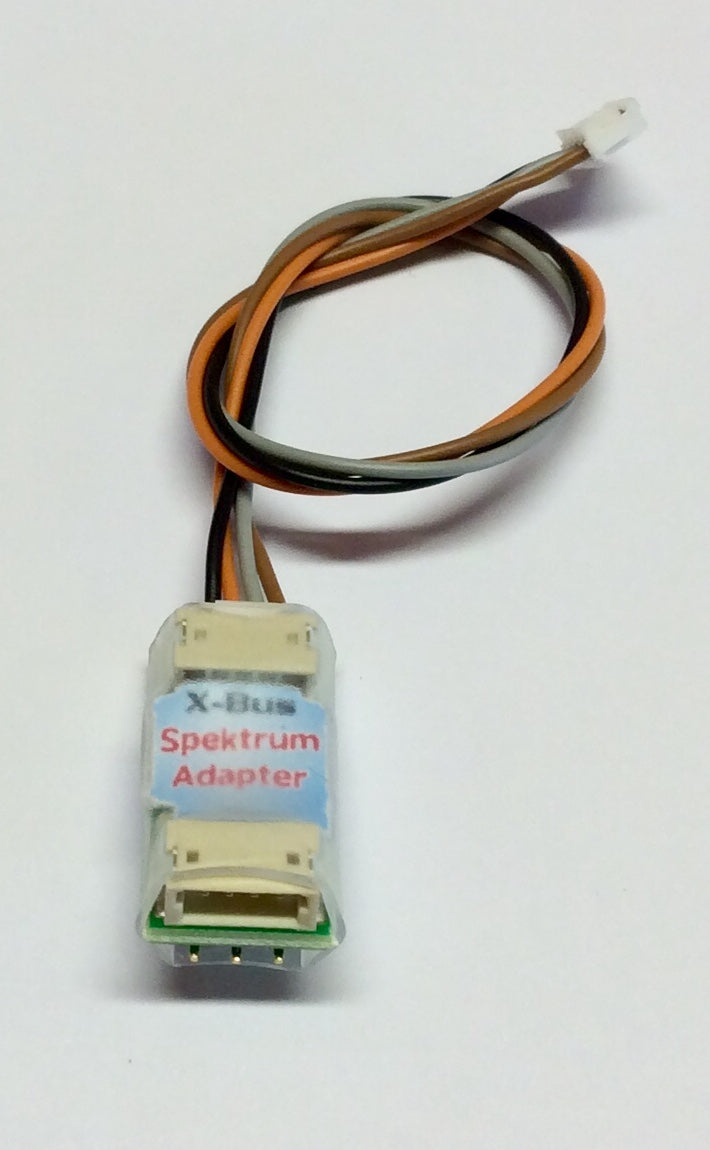

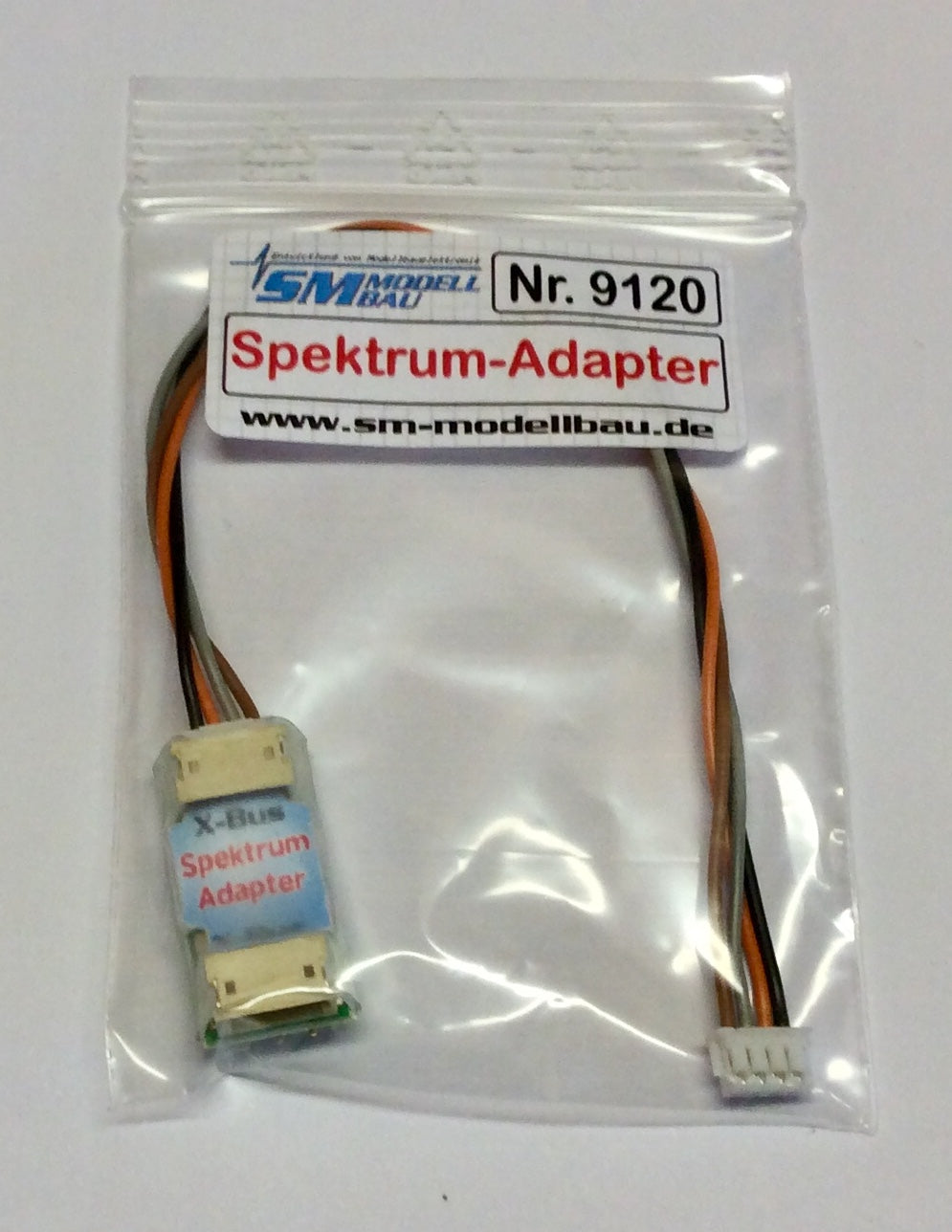

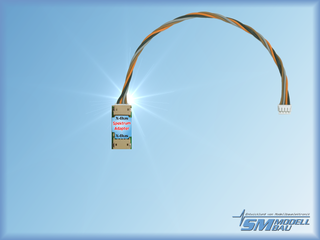

SM ModellBau Spektrum Adaptor for UniSens-E GPS-Logger UniLog 2 1-Pack
SM ModellBau Spektrum Adaptor for UniSens-E GPS-Logger UniLog 2 1-Pack
This Spektrum adaptor enables telemetry-capable Spektrum receivers and the TM1000 system to read data from UniSens-E, GPS-Logger 1 + 2, and UniLog 2 sensors. It translates sensor data into the X-Bus protocol and features a servo slot for the telemetry cable plus two identical, interchangeable X-Bus ports. Multiple sensors can be connected in parallel using a Y-cable (Order No. 3140), with each assigned a unique adaptor address in the setup. The compact unit weighs 4 grams with the included X-Bus connection cable.
Key Features
| Brand | SM ModellBau |
| Product Type | Telemetry Adaptor |
| Compatibility | UniSens-E, GPS-Logger 1 + 2, UniLog 2; Spektrum telemetry receivers and TM1000 system |
| Protocol | X-Bus |
| Dimensions | 0.47in x 0.94in x 0.35in (12mm x 24mm x 9mm) |
| Weight | 0.14oz (4g) with X-Bus connection cable |
| Connectors | 1x servo slot for telemetry cable, 2x X-Bus ports (identical, interchangeable) |
| Included Cable | X-Bus connection cable |
How to use
Connect the sensor's telemetry cable to the servo slot on the adaptor. Plug one X-Bus port into the receiver's X-Bus using the included cable. For multiple sensors, use a Y-cable (Order No. 3140) and assign unique adaptor addresses in the setup software. Ensure no Spektrum sensor address is duplicated (e.g., Vario sensor active in only one device).
What's included
- 1x Spektrum Adaptor
- 1x X-Bus connection cable
