Adverrun AVR XS V4 Contra Drive With EGODRIFT 4025EC 570KV Motor 1-Pack
$2,178.00
Sale price $2,178.00Regular price

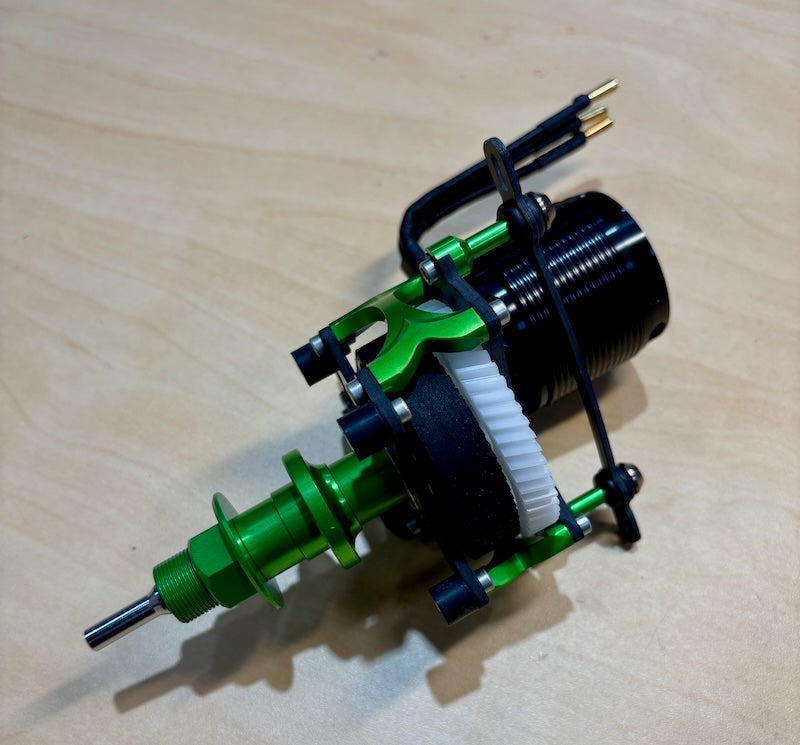

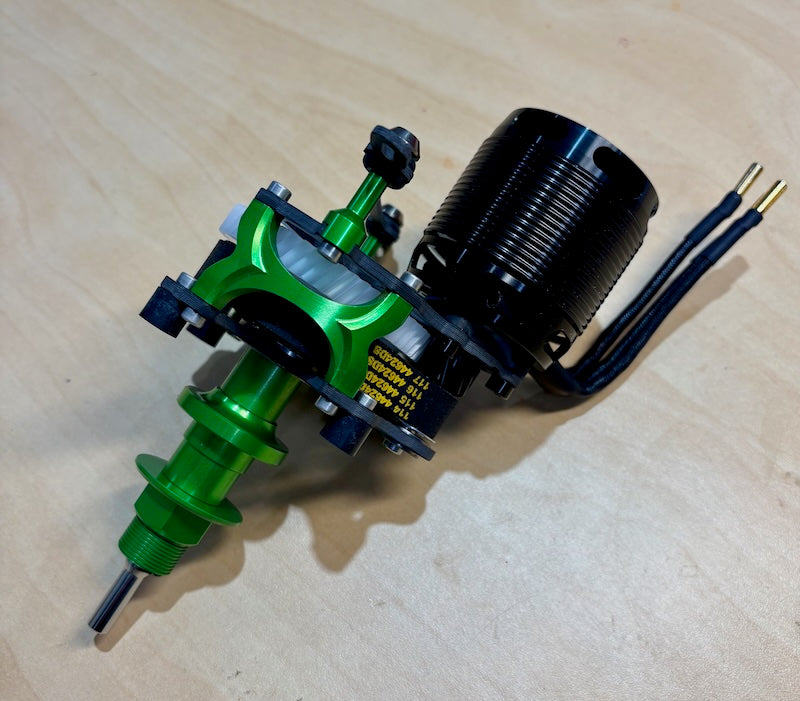

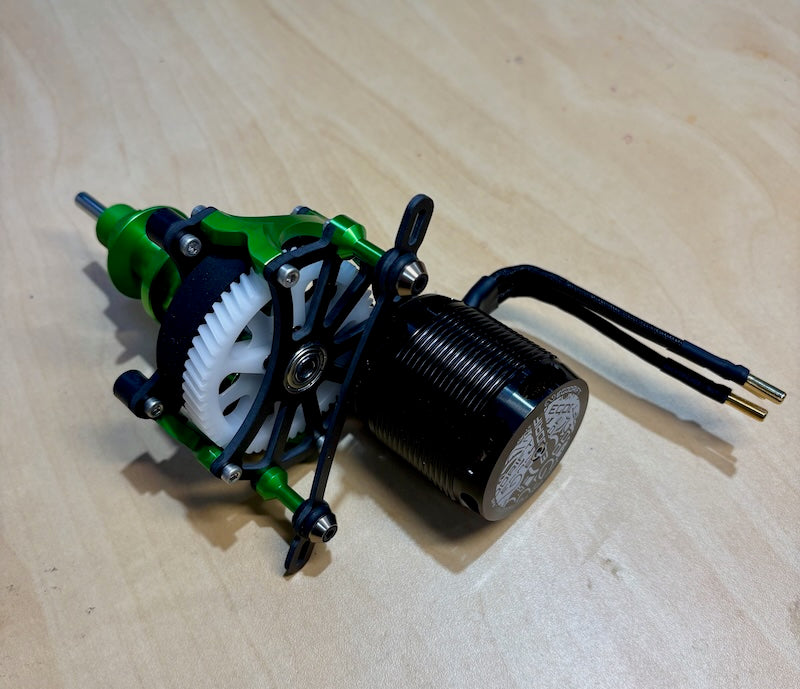

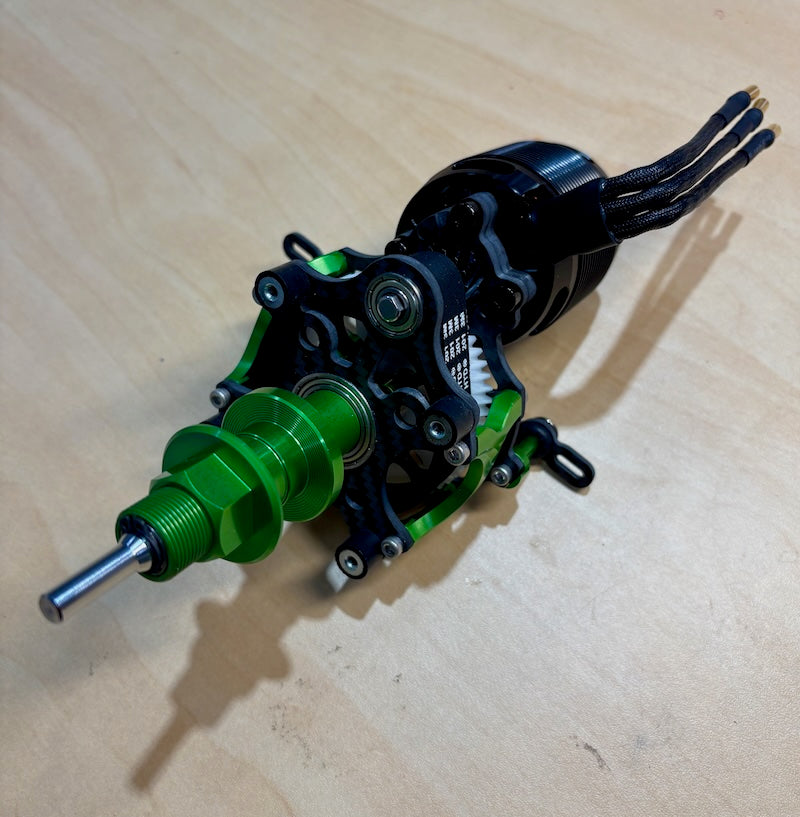

This drive system features the EGODRIFT 4025EC Eclipse Series 570KV motor and a new front and rear mounting system for improved directional stability. Designed for 10S LiPo packs, it supports propeller diameters from 20″ to 24″ for ample F3A power. The helical Delrin gear and belt drive require minimal maintenance while reducing noise, and the motor shaft is supported by a bearing in the front carbon fiber plate. Rubber isolator mounts minimize vibration transmission, and the rear mount allows small side thrust adjustments. A spare belt is included, and total weight is 575 grams.
Key Features
Brand
Adverrun
Model
AVR XS V4
Motor
EGODRIFT 4025EC Eclipse Series 570KV
Battery
10S LiPo
Propeller Range
20″ to 24″ diameter
Gear Ratio
4:1
Motor Poles
10
Timing
15°
RPM
4,300 RPM
Total Weight
575 g (1.27 lbs)
Drive Type
Contra-rotating belt drive
Mounting
Front carbon fiber plate with bearing, rear rubber isolator mounts
Included Items
Drive unit with motor, spare belt
What's included
Adverrun AVR XS V4 contra drive with EGODRIFT 4025EC motor
Spare belt
Frequently asked questions
What battery is recommended for the Adverrun AVR XS V4?
The drive is designed for 10S LiPo packs.
What propeller sizes can be used?
Propeller diameters from 20″ to 24″ have been tested and are compatible.
