BJ Craft Anthem SB (Sweepback Wing) ARF Airframe

Name: BJ Craft Anthem SB (Sweepback Wing) ARF Airframe
Brand: BJ Craft
SKU: BJ_Craft_Anthem_SB
Price: 4100.0 AUD
Availability: OutOfStock

$4,100.00 AUD

Contact us to order

Airframes are supplied to order and travel by freight or change hands at a contest. Send us your model, scheme and timing and we'll sort delivery with you.

Prices in AUD, GST included for Australian orders.

Custom schemesCustom schemes or colour swaps are available.

Drive matchingTell us your drive system preferences and let us suggest a solution.

Supported in AustraliaBacked by pilots who fly the schedule

Putting the whole setup together?
Tell us the scheme, drive and radio gear you want and we'll quote it as one package.

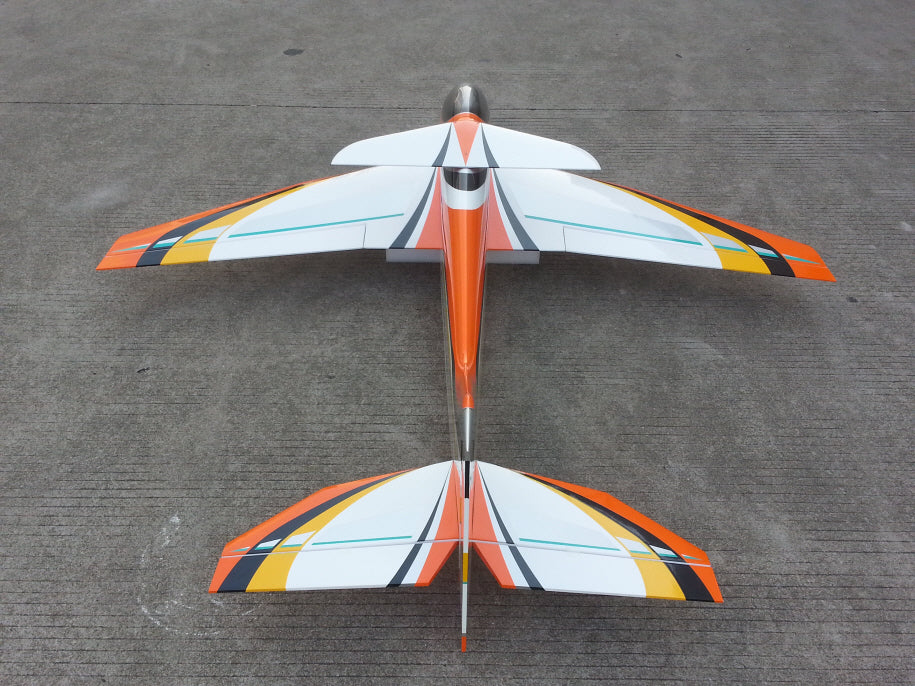

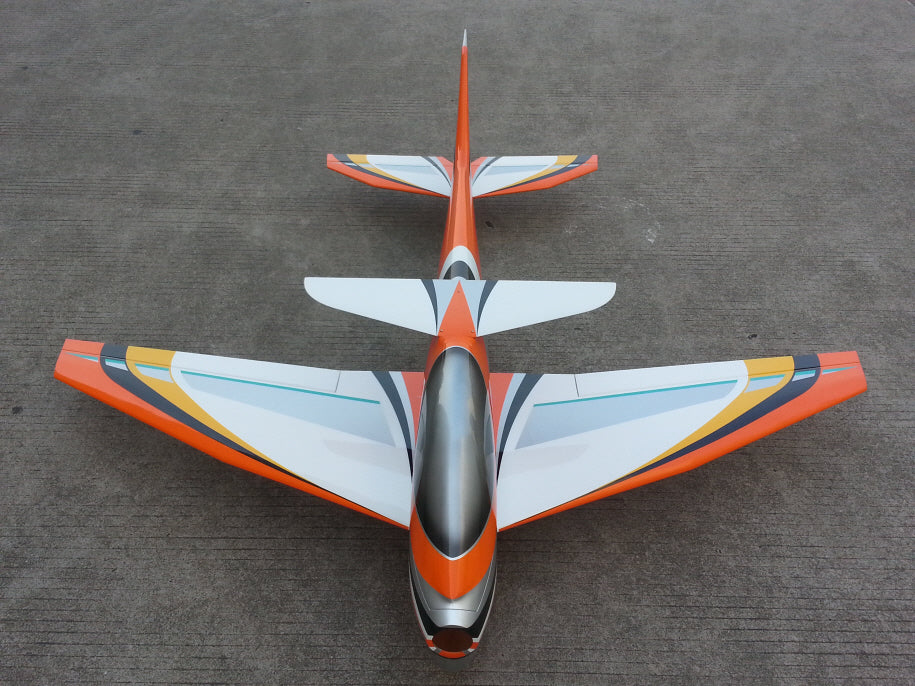

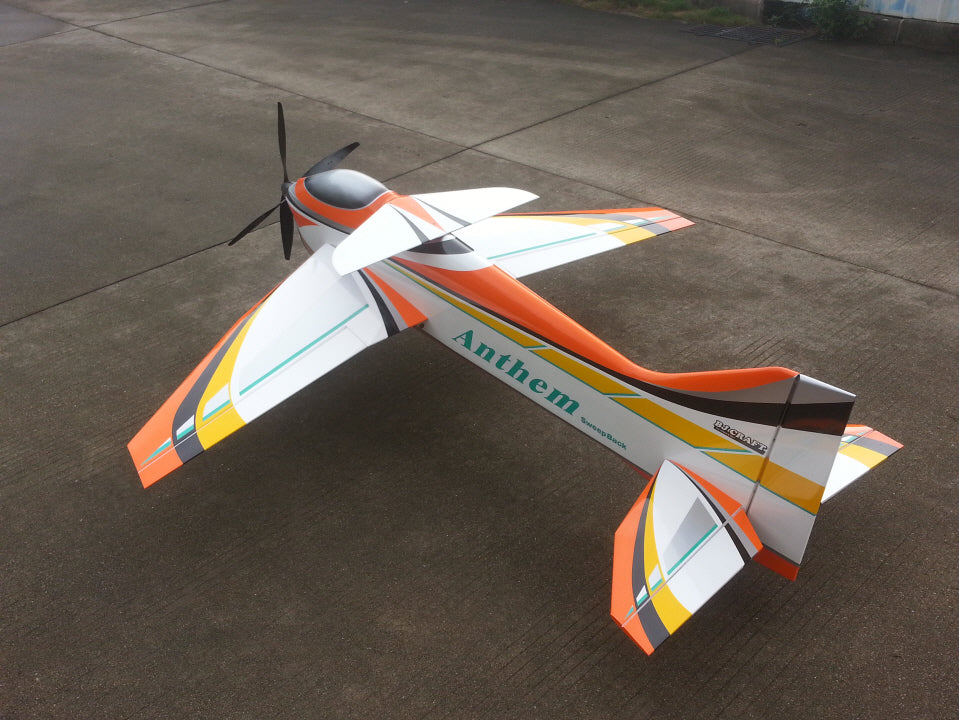

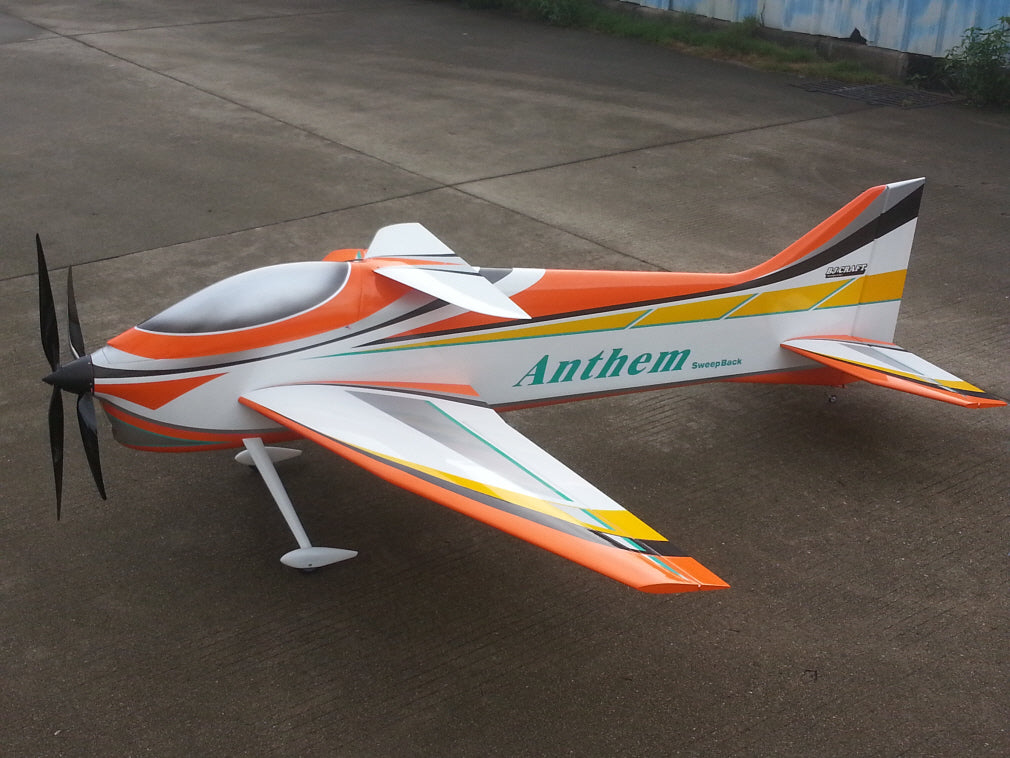

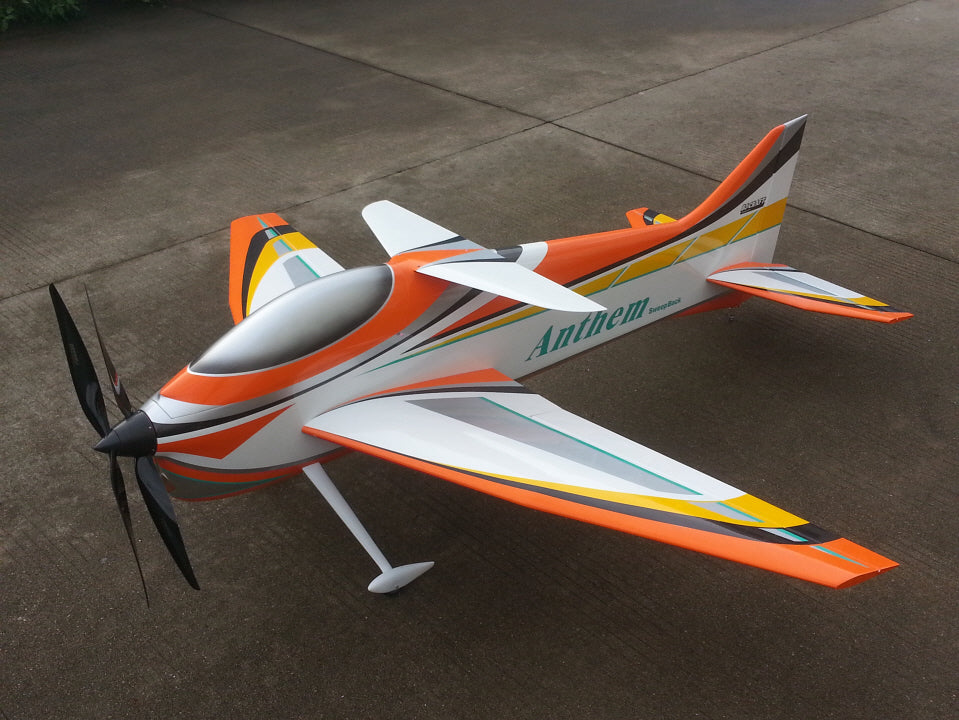

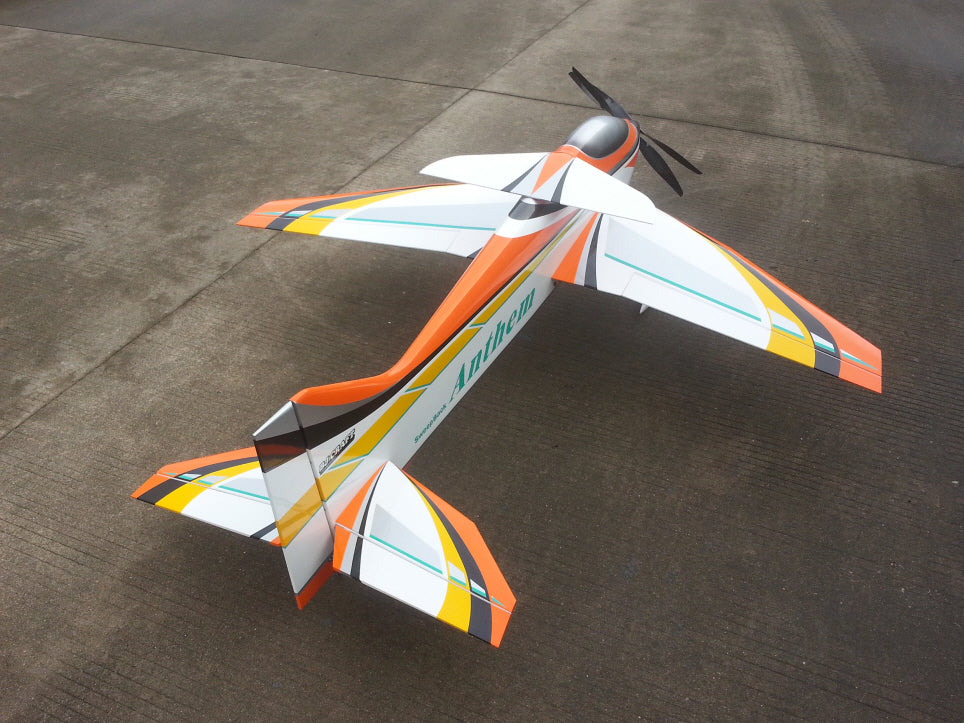

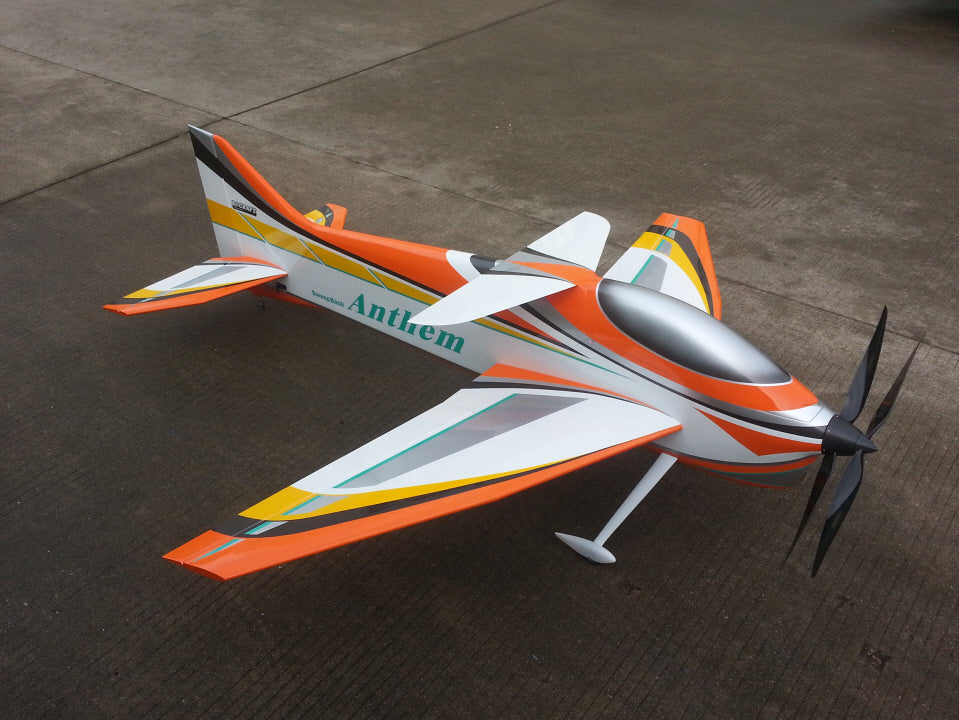

The BJ Craft Anthem SB is a 2-metre F3A pattern monoplane designed by BJ Park and built by BJ Craft, supplied almost ready to fly. SB stands for Sweepback Wing. Introduced in 2022, it is one of BJ Craft's most ordered designs. The 70-size version is the Anthem 70, and the Japanese-market version is sold as the Navigator.

The fuselage is set up with no side thrust, and one fuselage takes either a contra-rotating or a conventional nose. Supplied almost ready to fly, so the work left is fitting the radio and power system.

Specifications

Wingspan: 1,900mm
Length: 2,000mm
Wing Area: 65 dm²
Stabiliser Area: 18.5 dm²
Spinner Diameter: 82mm
Airframe Weight: 2,100 g (ARF)
Nose: Contra-rotating or conventional, same fuselage, no side thrust
CG: 280 to 320mm from the wing root leading edge. BJ Craft's prototype flew at 300mm.

Setting the CG

The CG range is wide, and BJ Park's advice is to run it as far aft as you can. Fly a 45-degree upline at 60 to 70 percent throttle and do a slow half roll without rudder. The right CG holds the 45-degree line with no heading drop.
