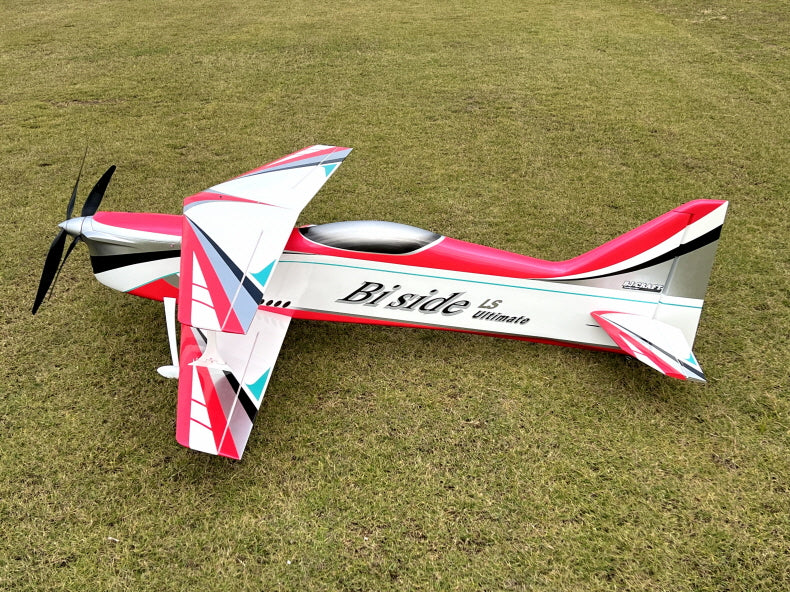

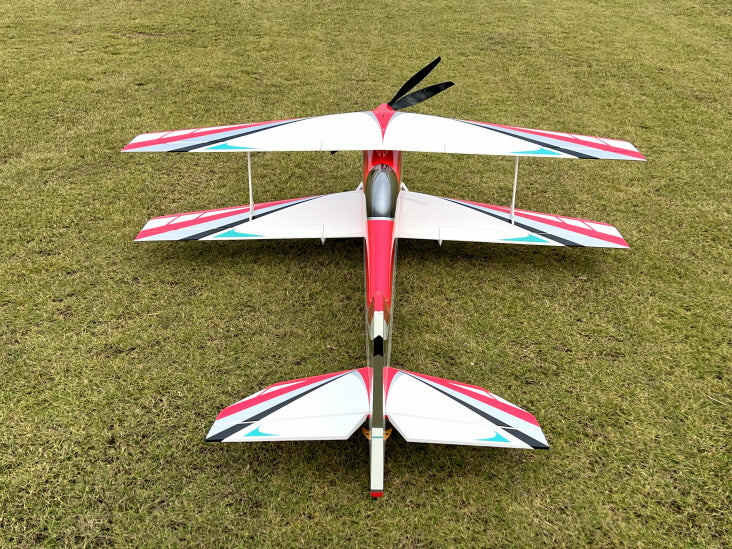

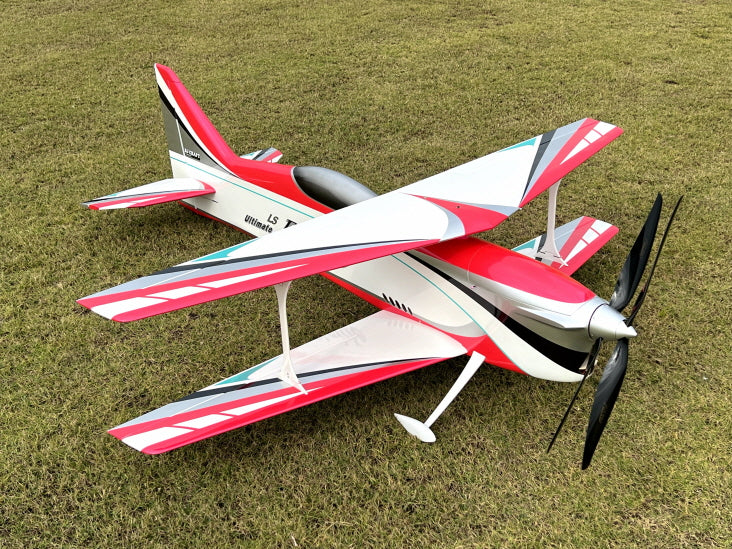

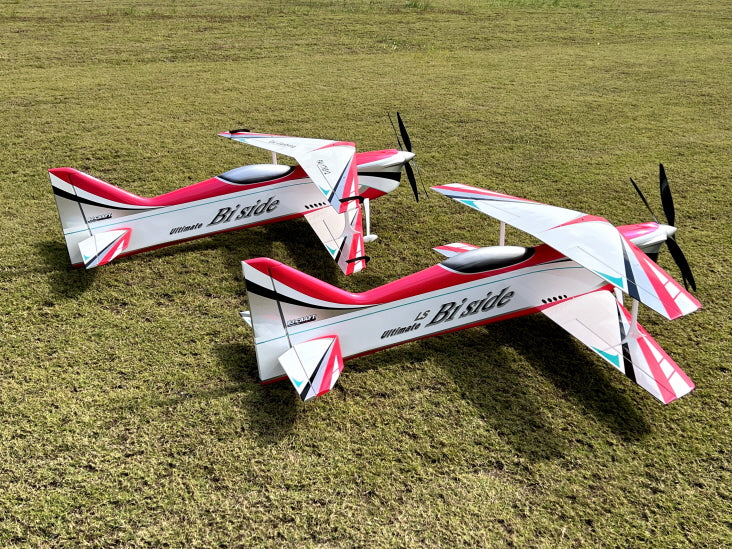

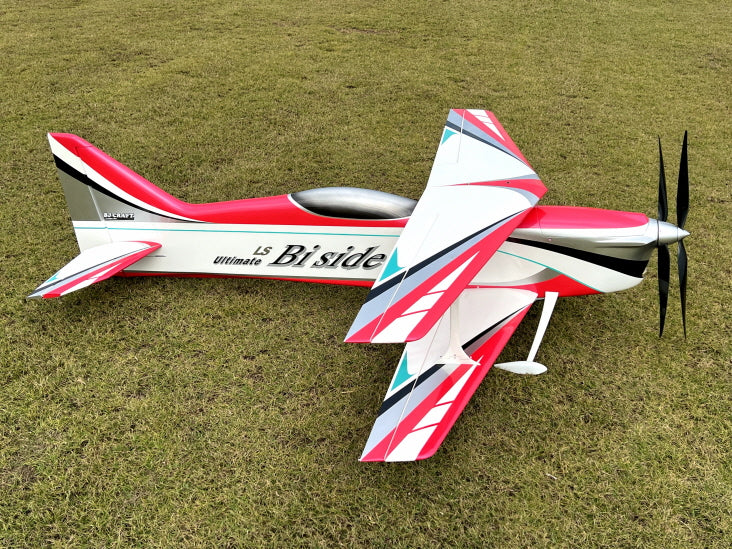

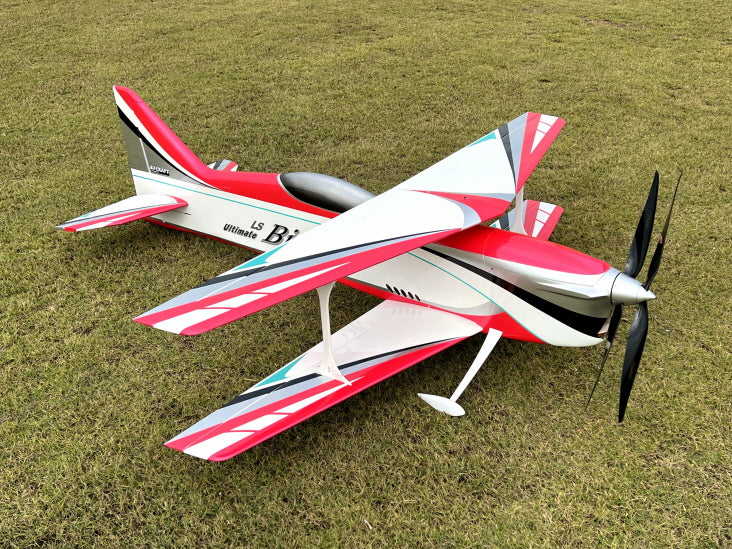

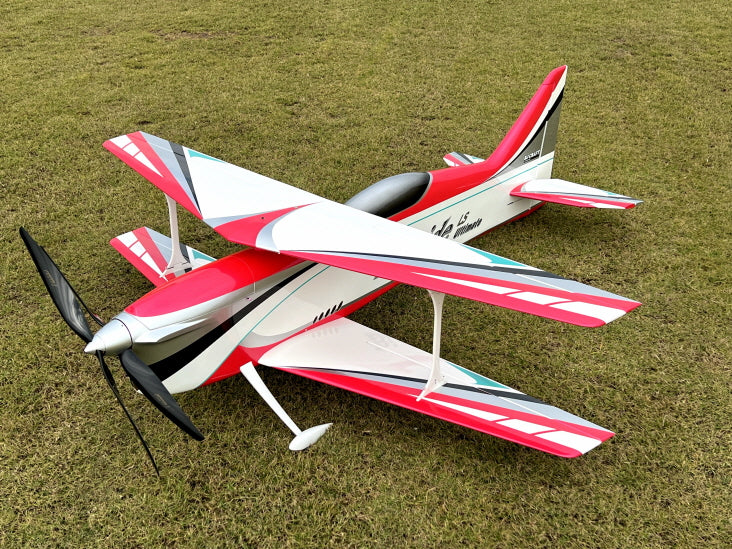

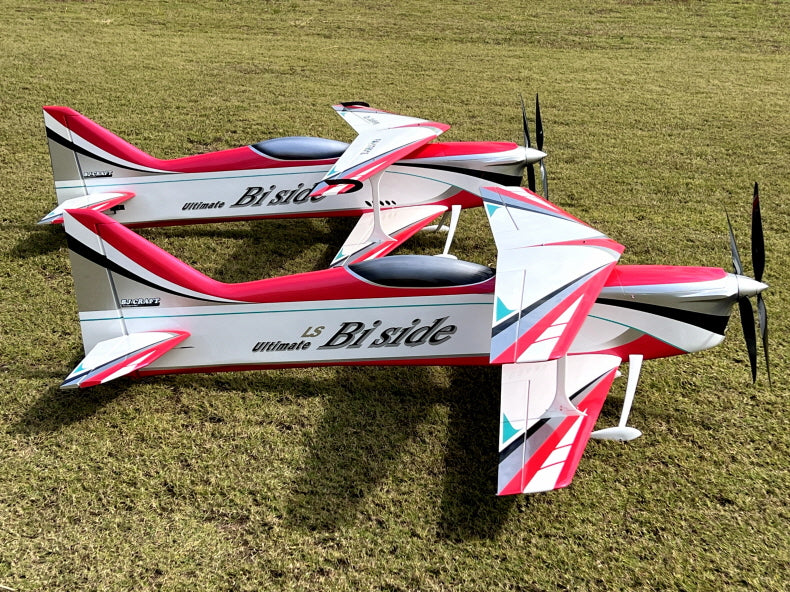

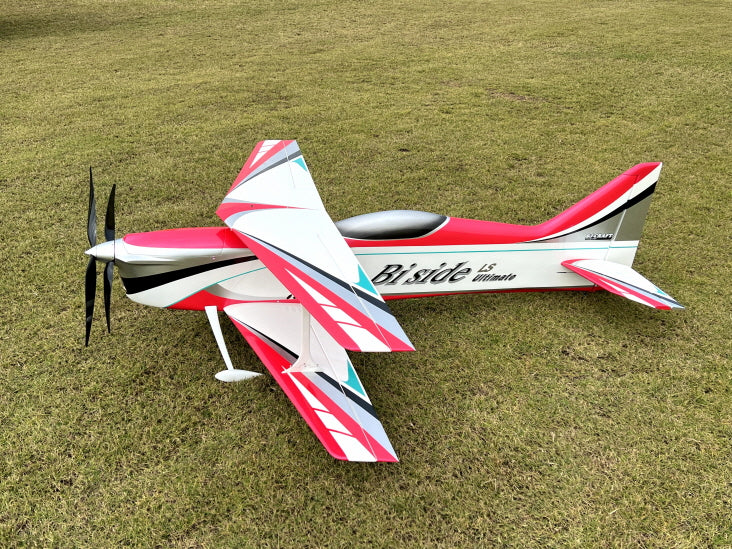

The BJ Craft Biside LS is a 2-metre F3A pattern biplane designed by BJ Park and built by BJ Craft, supplied almost ready to fly. LS stands for Less Sweepback: the wings carry less sweep than the standard Biside.
At 2,100 g for the airframe it leaves a comfortable margin under the 5.5 kg limit for a contra drive and 10S packs. Supplied almost ready to fly, so the work left is fitting the radio and power system.
Specifications
- Wingspan: 1,700mm
- Length: 2,015mm
- Wing Area: 87.7 dm²
- Stabiliser Area: 15.4 dm²
- Spinner Diameter: 82mm
- Airframe Weight: 2,100 g (ARF)

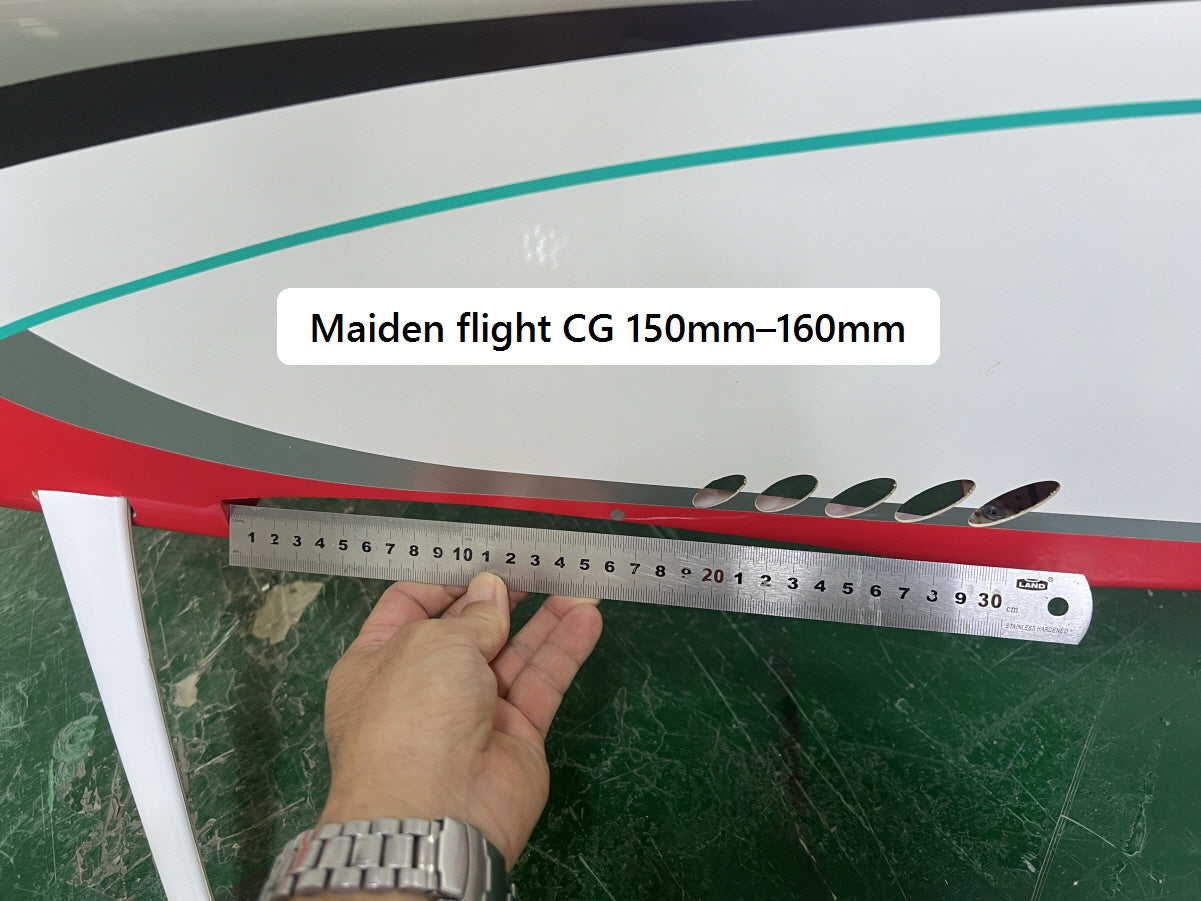

- CG: 150 to 160mm from the bulkhead at the bottom wing root
RC System Requirements
- 8 channels, 7 servos & 1 ESC
- Aileron servos ×4, 3 kg or more
- Elevator servos ×2, 3 kg or more
- Rudder servo ×1, 4 kg or more
Suggested Setup
- Conventional nose: Precision Aero Products PCK F3A Drive
- Contra nose: Adverrun AVR XS V4 Contra Drive
- Servos: MKS HV69 ×6 and MKS HV747 ×1
- Battery: 2 × Precision Power F3A 5S 30C 5250mAh for 10S
Not sure which nose or drive suits you? Send us your setup and we will suggest one.
Airframe only. Radio, servos, drive system, ESC, propellers and battery sold separately.
