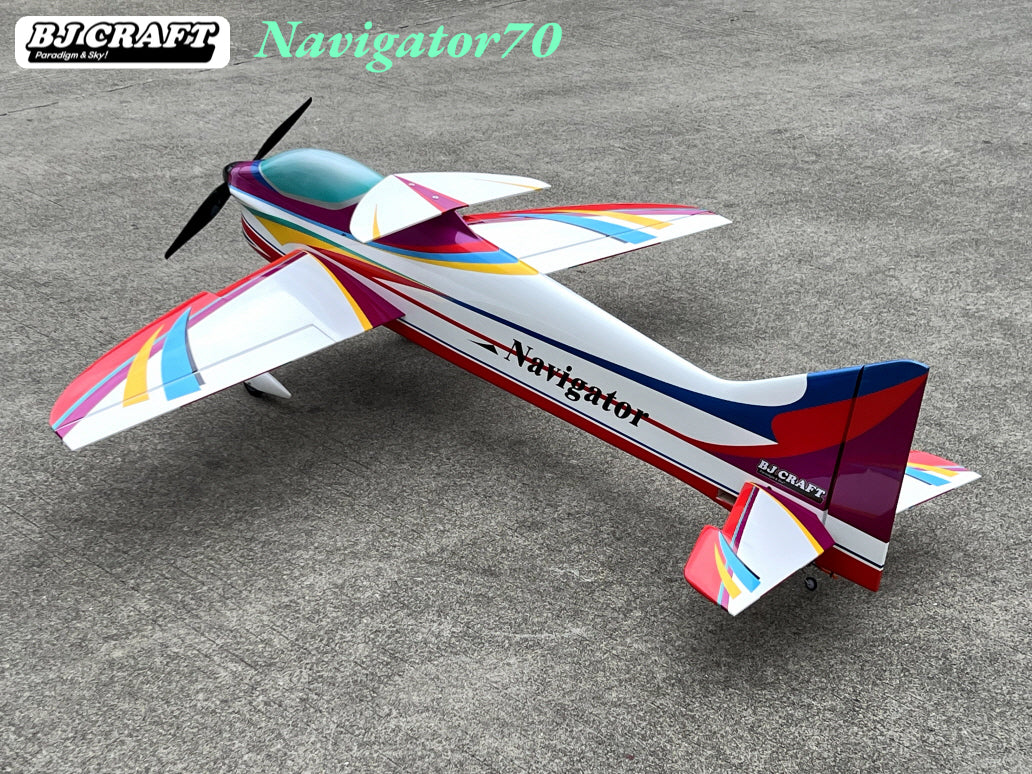

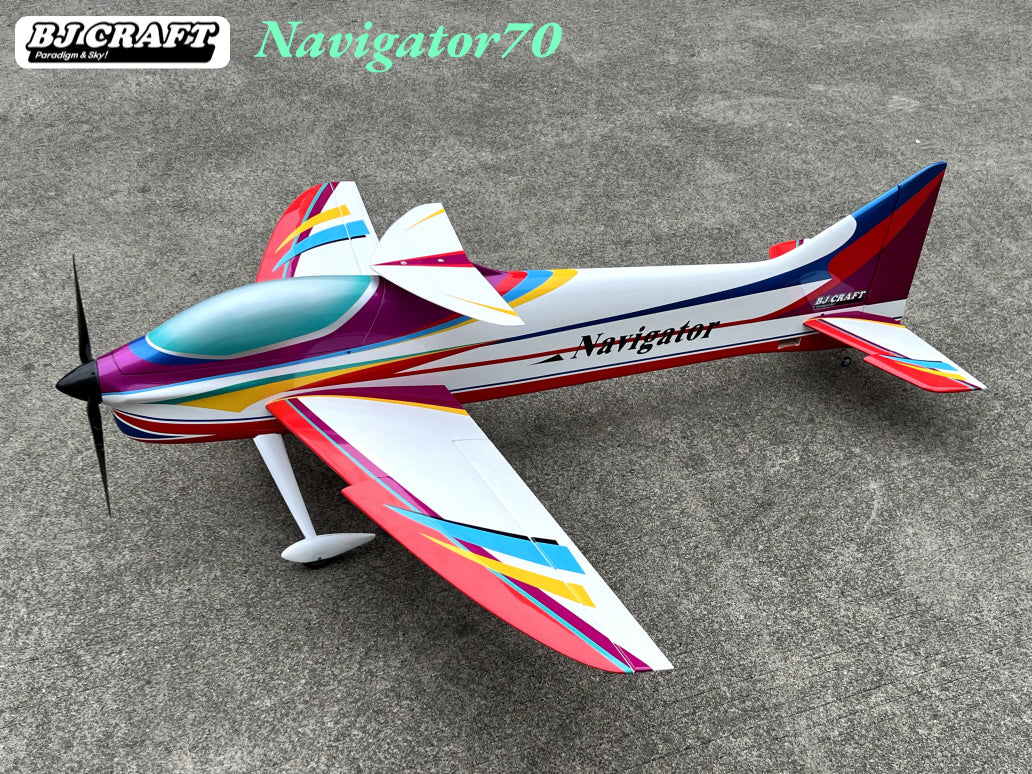

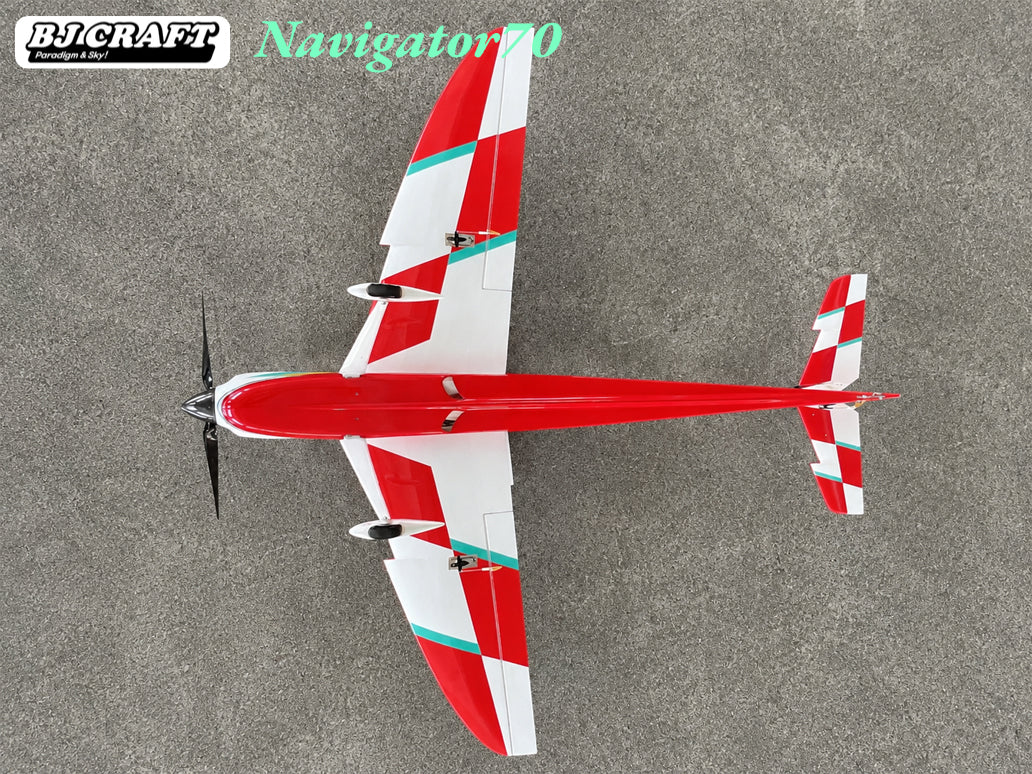

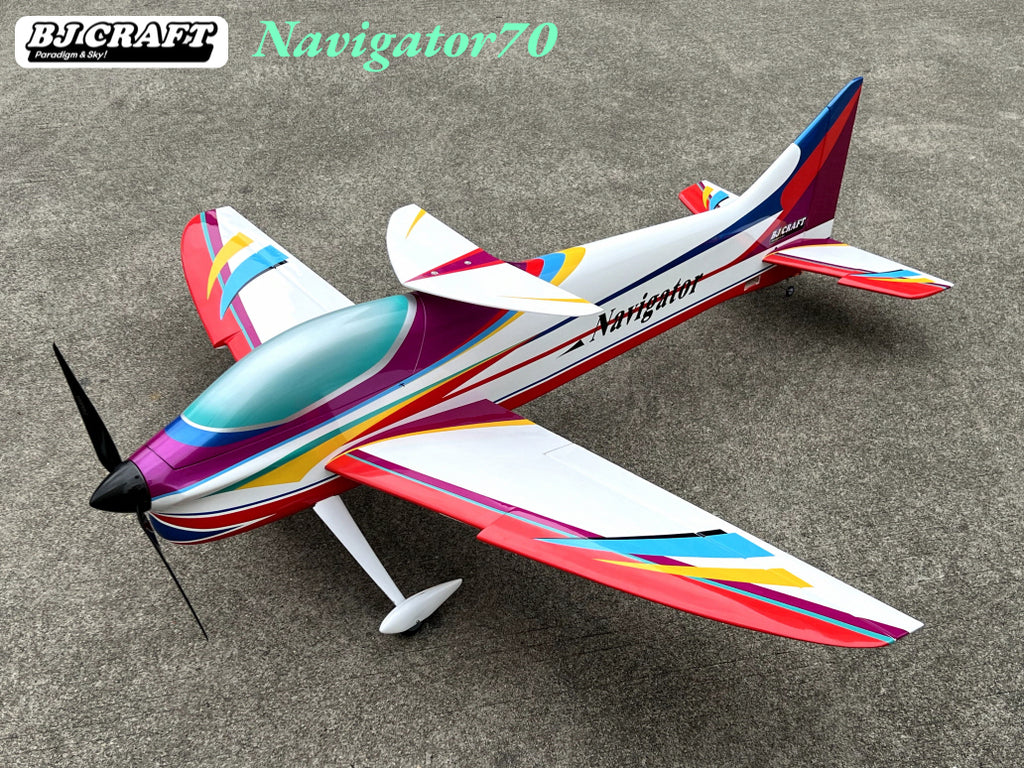

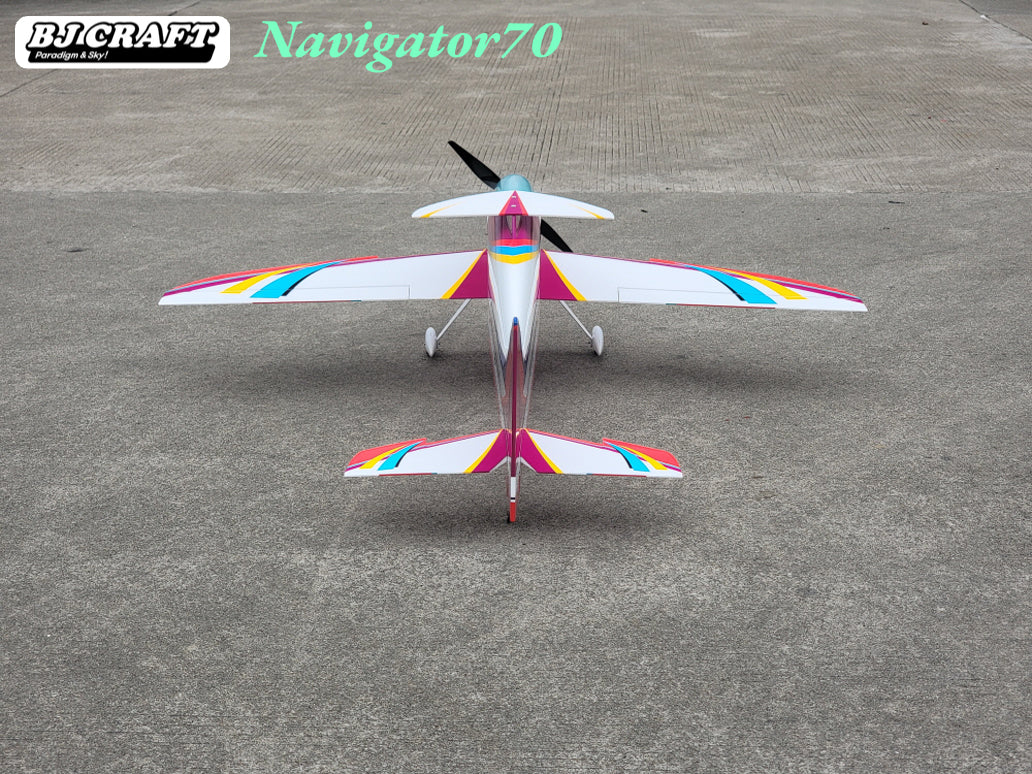

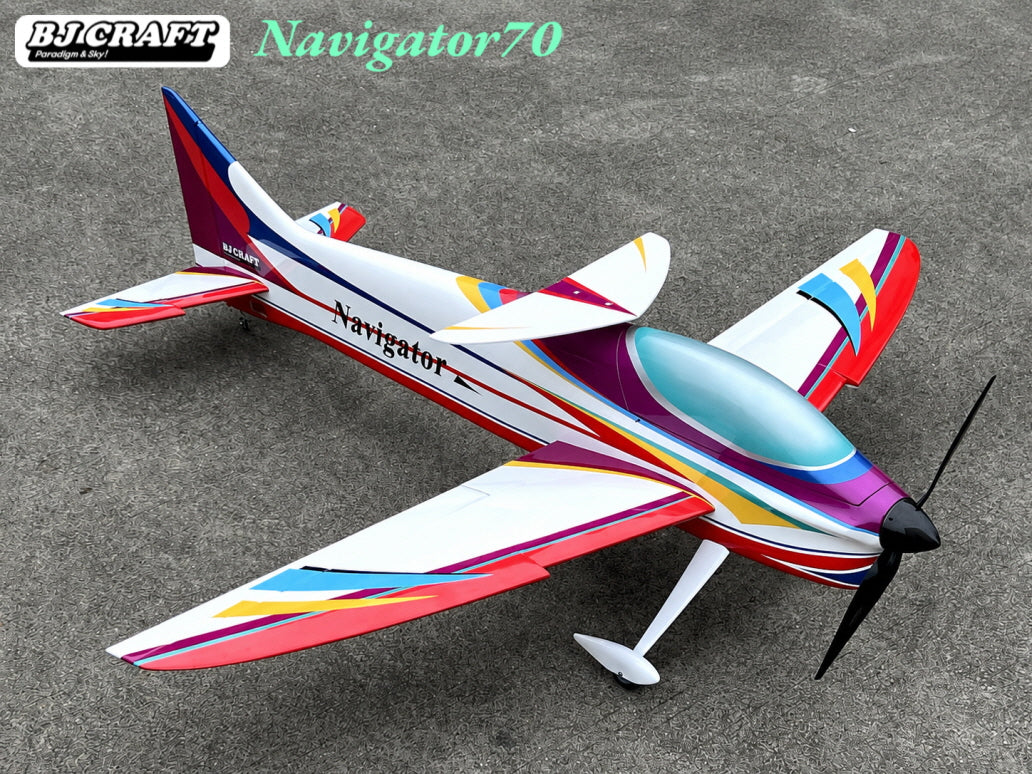

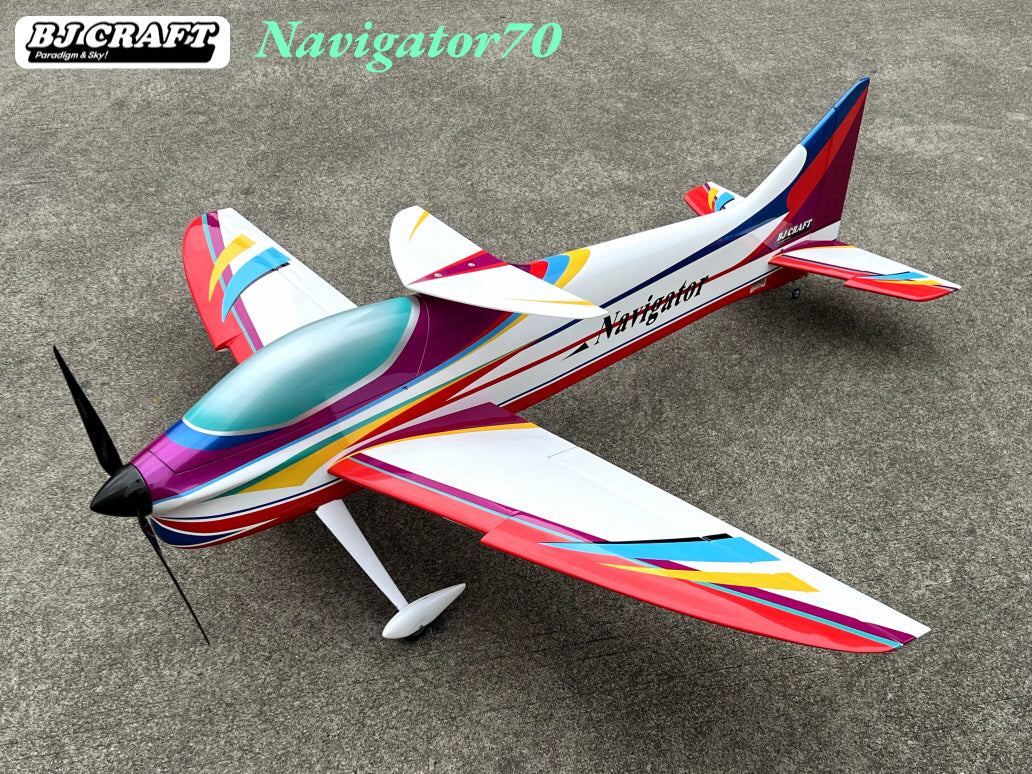

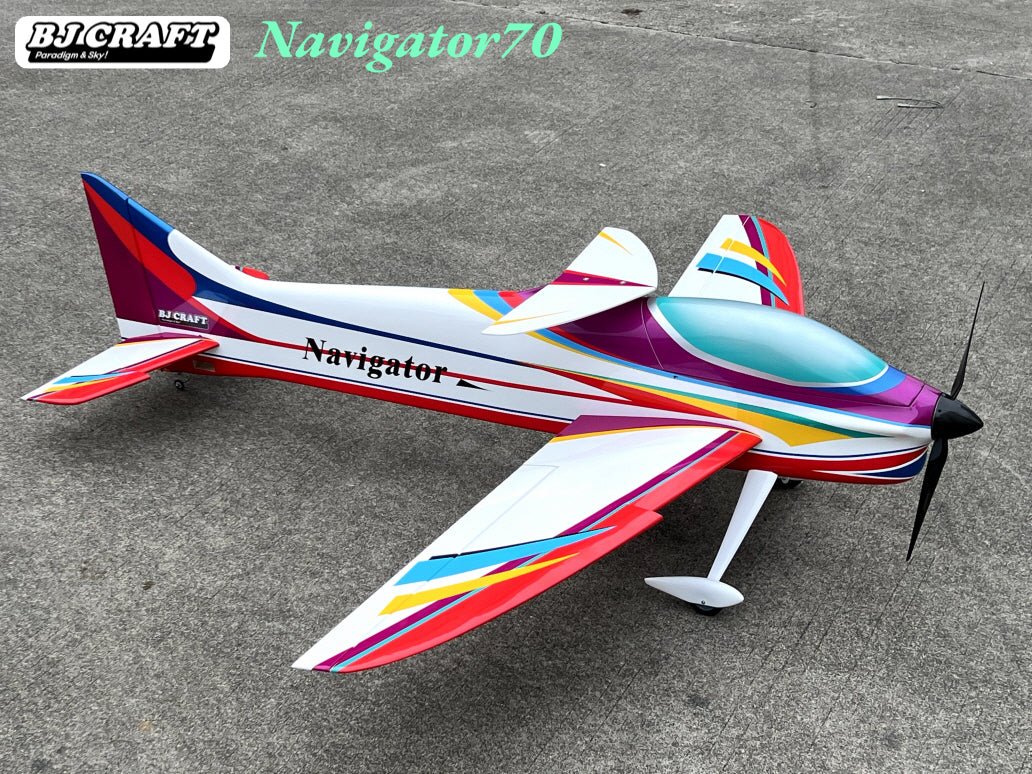

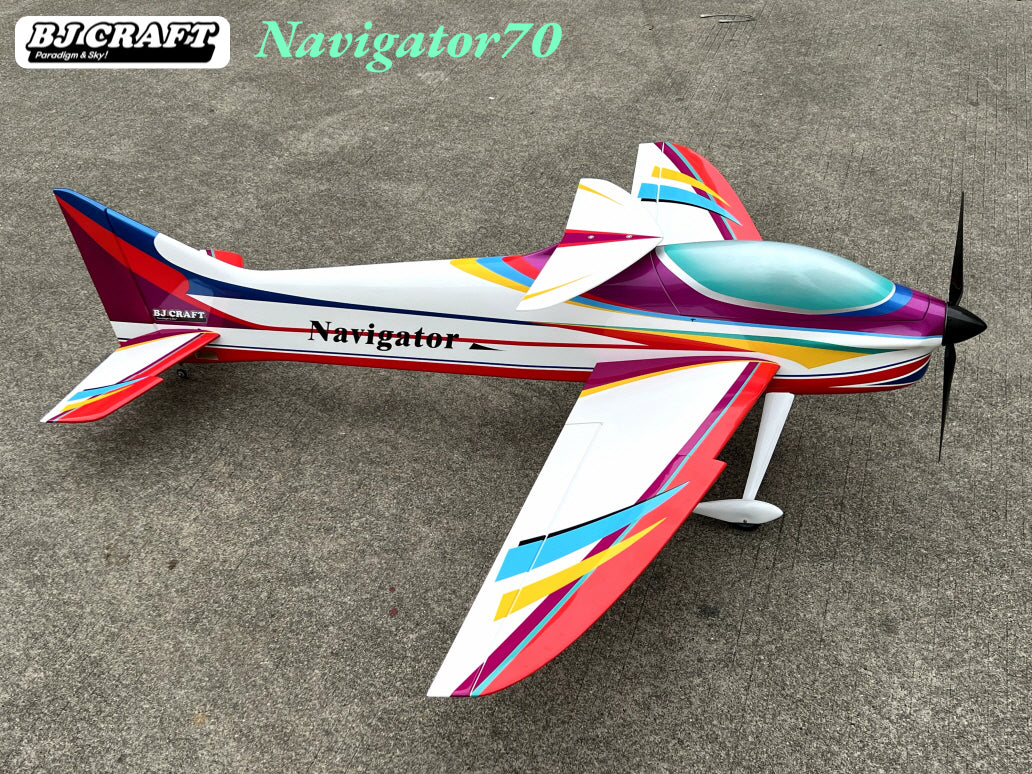

The BJ Craft Navigator 70 ARF is a 70-size F3A pattern airframe designed by BJ Park for Yoichiro Akiba and built by BJ Craft. The 2-metre version is sold as the Navigator.
At 1,520mm span it travels easily and costs less to equip than a 2-metre airframe, and sets up the same way. The full-flying stabiliser runs on a single elevator servo, so the complete radio fit is four servos. Supplied almost ready to fly, so the work left is fitting the radio and power system.
Specifications
- Wingspan: 1,520mm (59.8")
- Length: 1,600mm
- Wing Area: 35.5 dm²
- Stabiliser Area: 8.75 dm²

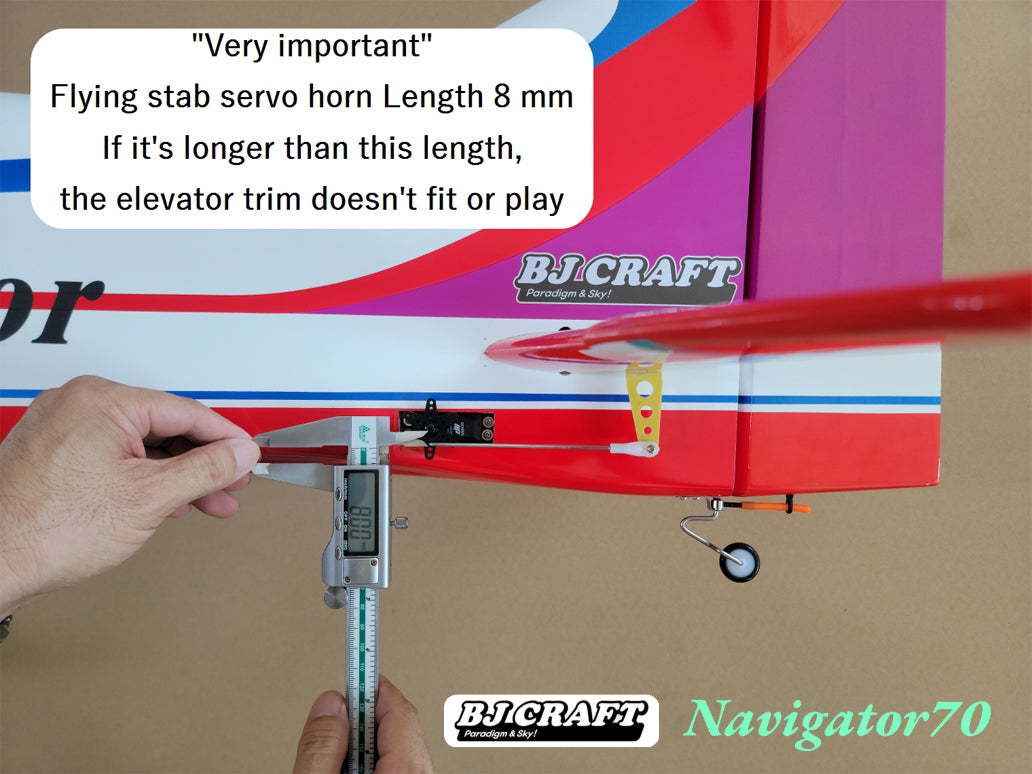

- Stabiliser: full-flying
- Spinner Diameter: 70mm
- CG: 20mm behind the carbon wing tube, at the aileron extension hole
RC System Requirements
- 5 channels, 4 servos & 1 ESC

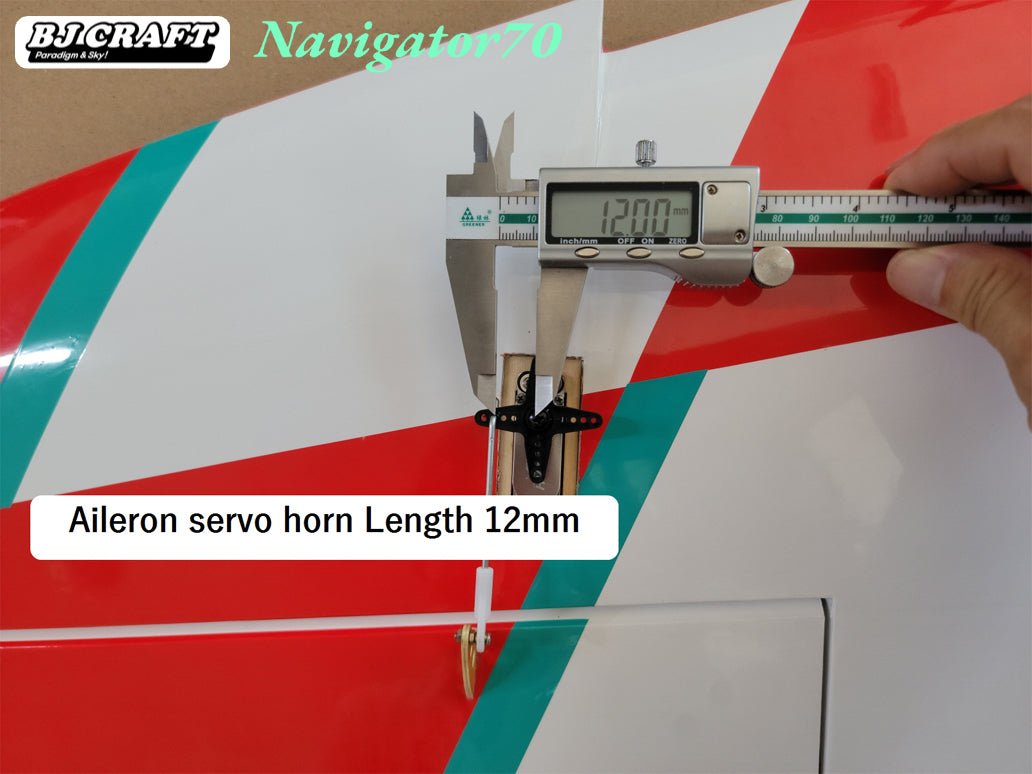

- Aileron ×2, Elevator ×1 (full-flying stabiliser), Rudder ×1
Suggested Setup

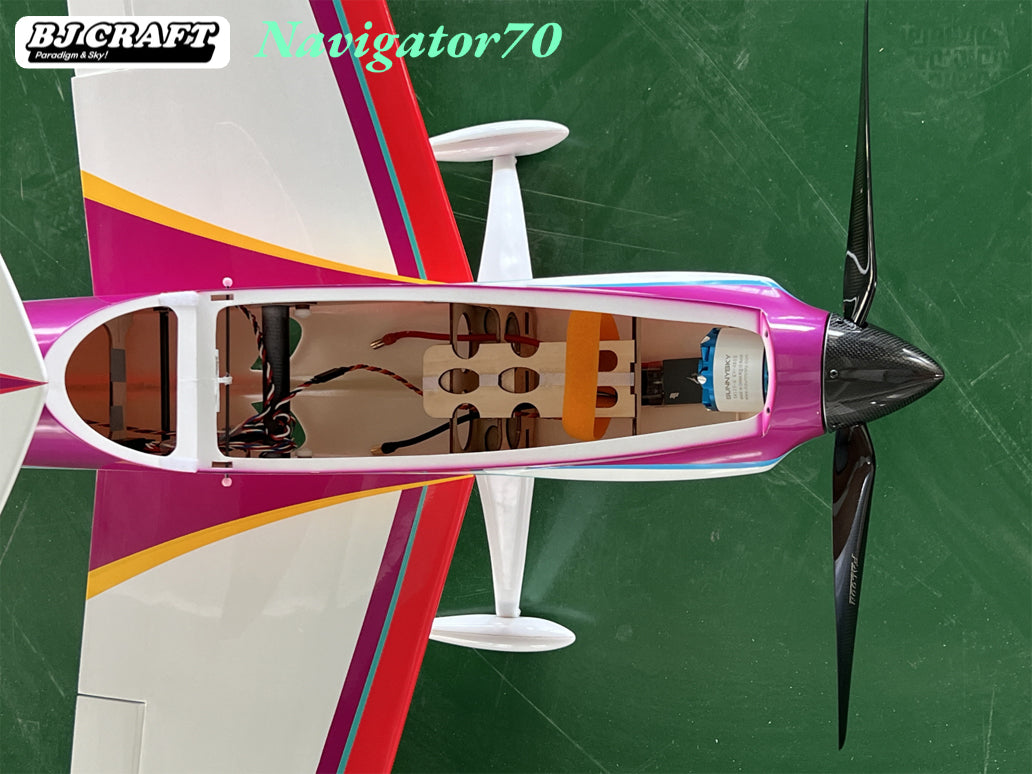

- Motor: EGODRIFT Beta 4025HT 580KV or EGODRIFT Beta 4025HT 625KV
- Servos: MKS HV69 ×4
- Propeller: Falcon 16×8
- Spinner: Falcon 70mm Carbon Spinner 2 Blade
- Links: Precision Aero Products titanium links, made to length for the ailerons, elevators and rudder
- Battery: Precision Power F3A 5S 30C 5250mAh
Not sure what to run in it? Send us your setup and we will suggest a drive.
Airframe only. Radio, servos, motor, ESC, and battery sold separately.
