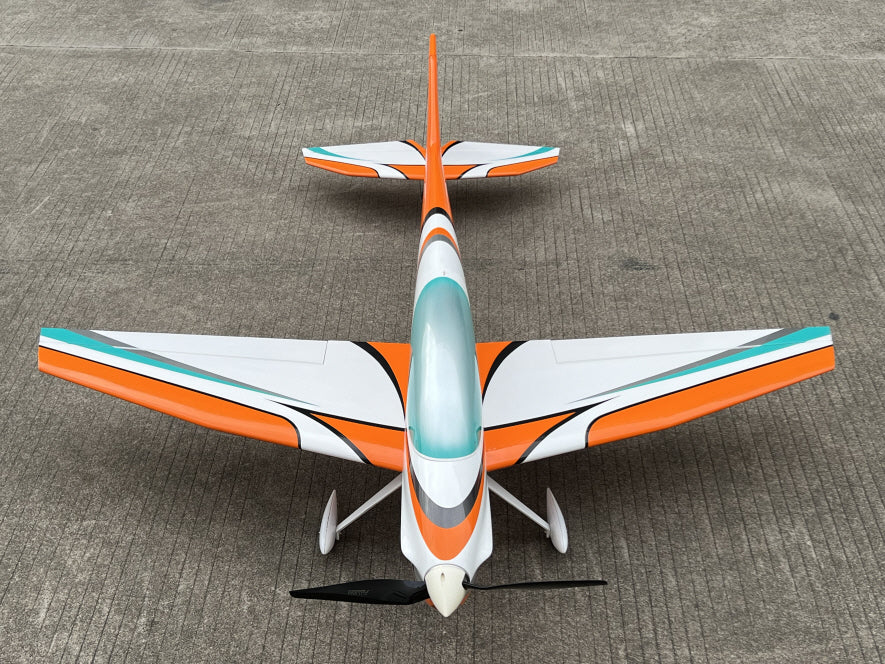

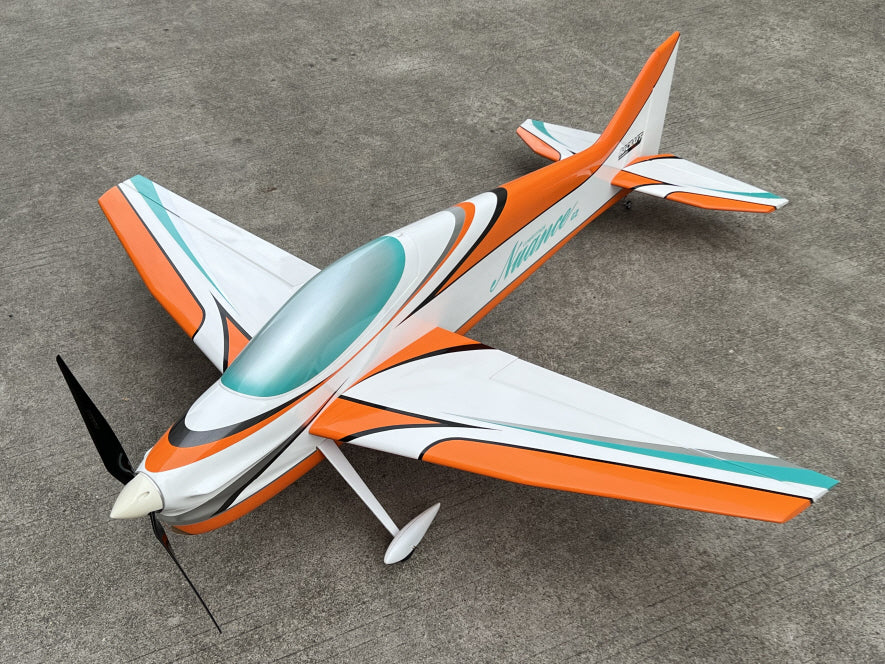

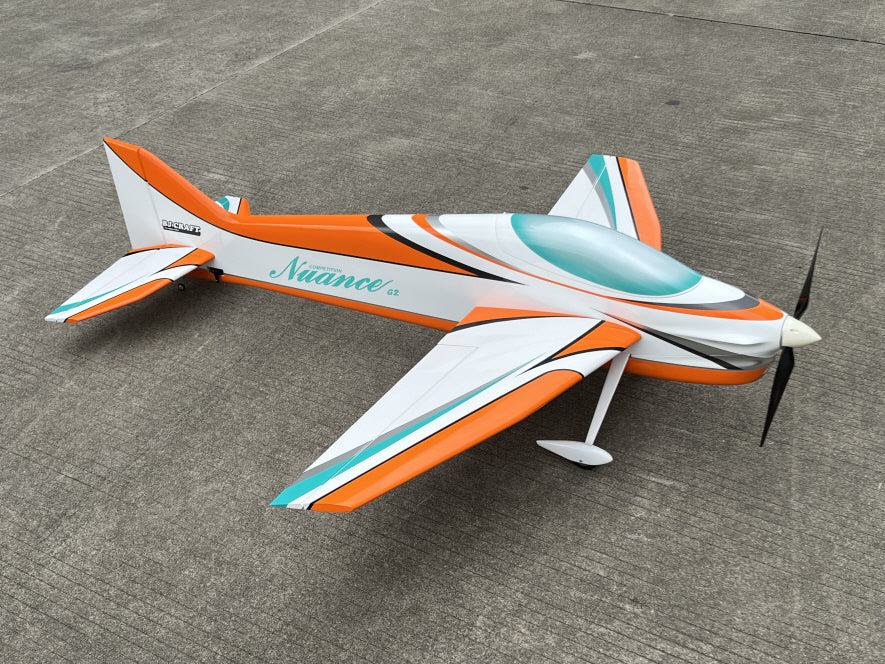

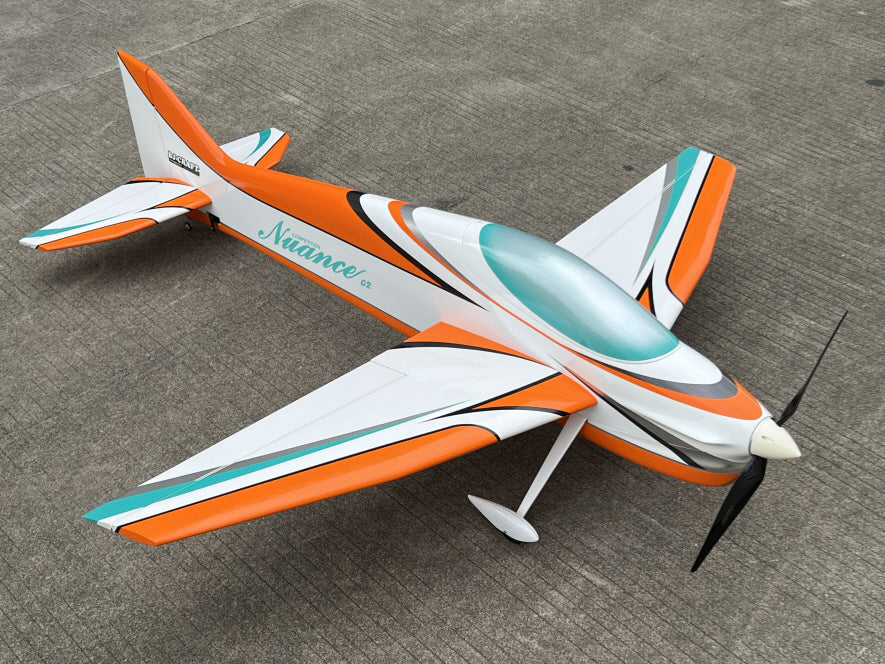

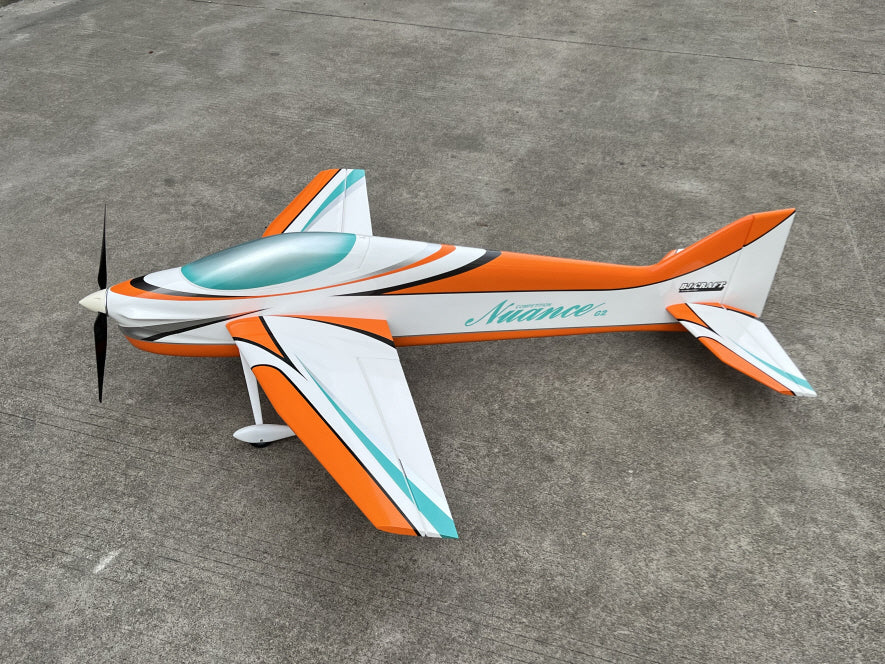

The BJ Craft Nuance 70 ARF is a 70-size F3A pattern airframe designed by BJ Park and built by BJ Craft.
At 1,460mm span it is the compact option in the Nuance line: easier to transport and cheaper to equip than a 2-metre airframe, and set up the same way. Supplied almost ready to fly, so the work left is fitting the radio and power system.
Specifications
- Wingspan: 1,460mm (57.5")
- Length: 1,600mm
- Wing Area: 40 dm²
- Stabiliser Area: 11.2 dm²
- Spinner Diameter: 62mm
- CG: 190mm from wing root leading edge (aileron extension hole)
RC System Requirements
- 5 channels, 5 servos & 1 ESC
- Mini servos: Aileron ×2, Rudder ×1
- Micro servos: Elevator ×2
Suggested Setup
- Motor: EGODRIFT Beta 4025HT 580KV or EGODRIFT Beta 4025HT 625KV
- Servos: MKS HV69 ×5
- Propeller: Falcon 16×8
- Links: Precision Aero Products titanium links, made to length for the ailerons, elevators and rudder
- Battery: Precision Power F3A 5S 30C 5250mAh
Not sure what to run in it? Send us your setup and we will suggest a drive.
Airframe only. Radio, servos, motor, ESC, and battery sold separately.
