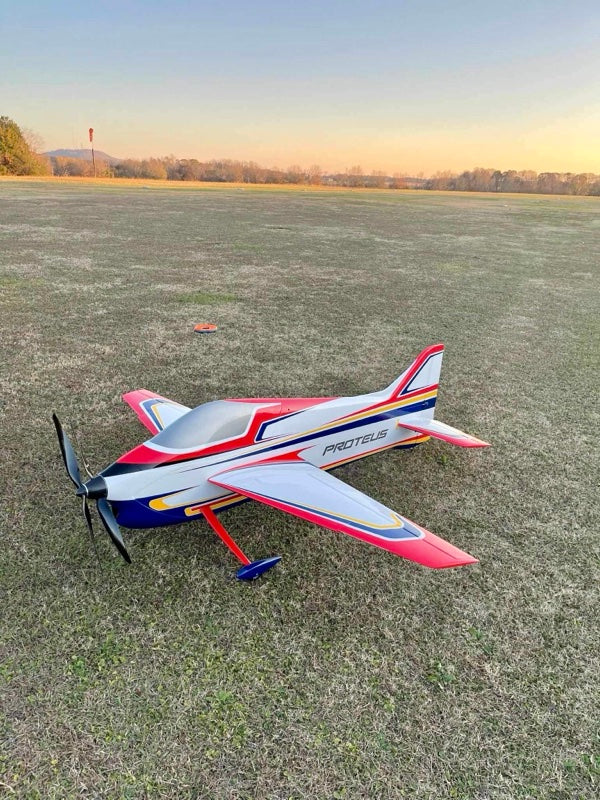

CA Model Proteus 3 Mono ARF
CA Model Proteus 3 Mono ARF
The Proteus 3 Mono ARF is a precision aerobatic model designed by multiple champion Andrew Jesky. It features a composite fuselage of fiberglass, carbon fiber, and balsa, with built-up sheeted balsa wings and stab covered in film. Suitable for contra or conventional drive systems, it offers outstanding flight characteristics and light wing loading, capable of performing all FAI Unknown maneuvers.
This ARF comes with carbon fiber landing gear, painted wheel pants, a tail wheel assembly, and installed stab adjusters. The model is supplied without a canaliser, which is available as an optional extra.
Key Features
| Wingspan | 75.2 in (1910 mm) |
| Length | 78.5 in (1995 mm) |
| Wing Area | 75 dm² |
| Net Weight | 86.4 oz (2450 g) |
| Gross Weight | 169-176 oz (4800-5000 g) |
| Fuselage Construction | Fiberglass, carbon fiber, balsa laminated, professionally painted |
| Wing Construction | Built-up sheeted contest grade balsa covered with film |
| Stab Construction | Built-up balsa covered with film |
| Wing Design | Dave Snow designed |
| Wing Tube | Plug-in carbon fiber, 25 mm |
| Horizontal Stabilizer | Plug-in carbon fiber stabs |
| Elevators | Dual, mini servo compatible |
| Rudder | Pull-pull cable |
| Power Options | Mono prop or contra rotating prop |
| Contra Rotating Drive | Adverrun XS with EGODRIFT |
| Mono Prop Options | PCK (Precision Contra Killer), Precision F3A Drive (High or Low KV), Plettenberg Advance 30/10, Hacker Q80 |
| ESC Options | D3 ESC, Mezon 85 or 95 or above |
| Spinner | 82 mm (included) |
| Included Hardware | Lightweight wheels with axles, carbon fiber landing gear, painted wheel pants, tail wheel assembly, installed stab adjusters, (6) anodised control horns, battery tray, servo trays, carbon fiber wing and stab tube |
| Recommended Servos (not included) | Ailerons: (2) High torque - MKS HV747; Elevator: (2) Mini servos - MKS HV69; Rudder: (1) High torque - MKS HV747 |

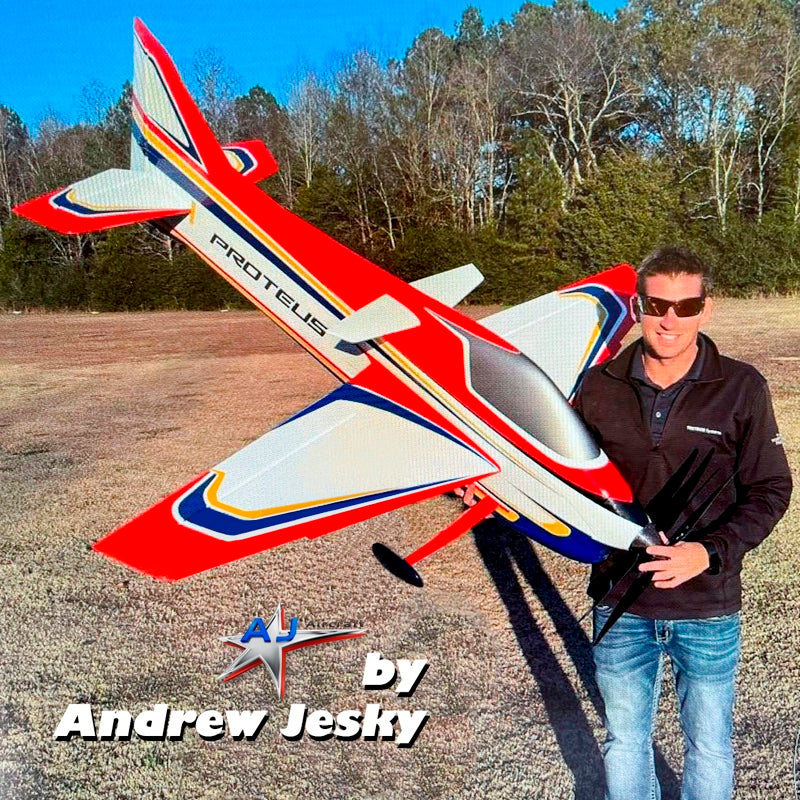

| Color Schemes | Andrew Jesky scheme (pictured); ARFC custom color scheme available |
| Configuration Options | ARF (Almost Ready to Fly) or ARC (builders kit) |
Highlights
- Designed by multiple champion Andrew Jesky
- Composite fuselage (fiberglass, carbon fiber, balsa)
- Carbon fiber landing gear
- Light wing loading for precision aerobatics
- Capable of FAI Unknown maneuvers
What's included
- Proteus 3 Mono ARF airframe
- Carbon fiber landing gear
- Painted wheel pants
- Tail wheel assembly
- Stab adjusters (installed)
- 6 anodised control horns
- Battery tray
- Servo trays
- Carbon fiber wing and stab tube
- 82 mm spinner
