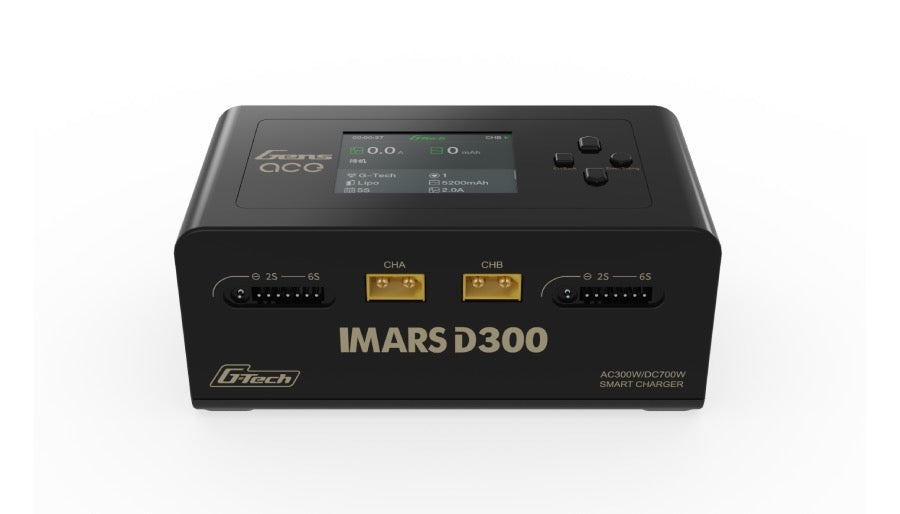

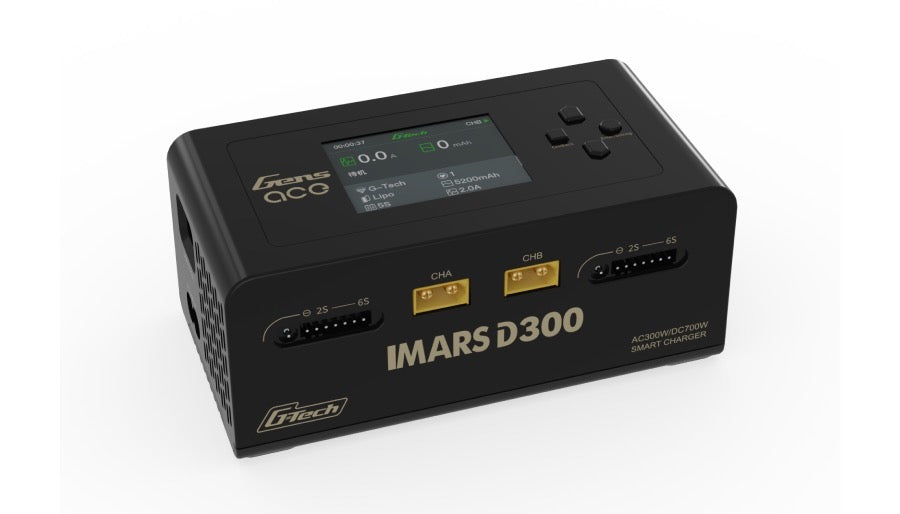

Gens Ace iMARS D300 Dual Channel AC/DC Battery Charger Black
Gens Ace iMARS D300 Dual Channel AC/DC Battery Charger Black
The Gens Ace iMARS D300 is a versatile AC/DC dual-channel charger and discharger designed for hobbyists. It features a 2.4-inch IPS LCD screen and supports a wide range of battery chemistries including LiPo, Li-ion, LiHV, LiFe, and Ni-MH. The unit can be powered from AC mains (100-240V) or an external DC power source, and comes with an AU/NZ mains cable.
With smart power allocation up to 300W on AC or 700W on DC, the iMARS D300 delivers fast and precise charging. The included balance function ensures cell voltage accuracy within ±10mV, while dual channels allow independent operation for increased efficiency.
Key Features
| Model | iMARS D300 |
| Channels | 2 |
| Display Type | 2.4 inch IPS Screen LCD |
| Input Voltage | AC100-240V, DC7-30V |
| Output Voltage Range | DC 1~30V |
| Max Input Current | DC 34A |
| Charging Current | 0.1-16A per channel |
| Balance Current | 1.2A per cell max per channel |
| Voltage Tolerance | Standard ±10mV |
| Discharge Current | 0.1-3A per channel |
| Maximum Charging Power | AC 300W (Smart Allocation), DC 2 x 350W |
| Maximum Discharge Power | 15W per channel (Main Port 6W, Equilibrium Port 9W) |
| Battery Types | LiPo/Li-ion/LiHV/LiFe 1~6S; Ni-MH 1~16S |
| Balance Serial Number | 2~6S |
| Working Temperature | 0~65°C |
| DC Input Connector | XT60PW-M |
| Output Connector | XT60PW-M |
| Product Dimensions | 5.7 x 3.0 x 2.4 inches |
| Net Weight | Approximately 1.17 lbs |
Highlights
Dual independent charging channels for simultaneous use. Smart power allocation up to 300W on AC or 700W on DC. Supports a wide range of battery chemistries. Equipped with a bright 2.4-inch IPS LCD screen for clear status monitoring.
How to use
Connect the charger to AC mains or a suitable DC power source. Select the battery type and parameters using the intuitive interface. Connect the battery to the output port and start the charging or discharging process. Monitor progress on the IPS screen.
What's included
- 1 x Gens Ace iMARS D300 Charger
- 1 x AU/NZ mains cable
