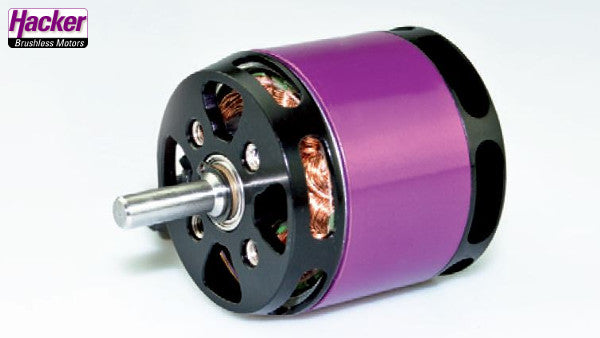

Hacker A50-12S V4 480KV Brushless Motor
Hacker A50-12S V4 480KV Brushless Motor
The Hacker A50-12S V4 480KV brushless motor delivers increased efficiency and higher power throughput thanks to a newly designed rear end plate and improved fan. With a maximum power of 1250W and a continuous load rating improvement, this motor is ideal for demanding RC applications. Its 14-pole design and 480KV rating provide smooth and responsive performance.

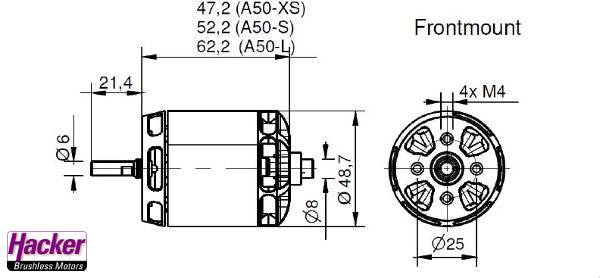

Weighing just 345g and measuring 48.7mm in diameter and 47.2mm in length, the A50-12S V4 is compact yet powerful. It features a 6mm output shaft and an 8mm inner shaft diameter, requiring a minimum 70A brushless ESC with 20°-25° timing.
Key Features
| Brand | Hacker |
| Model | A50-12S V4 |
| KV Rating | 480 RPM/V |
| Max Power | 1250W (15 sec.) |
| Idle Current @ 8.4V | 1.8A |
| Resistance (Ri) | 0.016 Ohm |
| Weight | 12.2 oz (345g) |
| Diameter | 1.92 in (48.7 mm) |
| Length | 1.86 in (47.2 mm) |
| Poles | 14 |
| Recommended ESC | Minimum 70A Brushless |
| Timing | 20° - 25° |
| Output Shaft Diameter | 6 mm |
| Inner Shaft Diameter | 8 mm |
Highlights
- Increased efficiency with redesigned rear end plate and improved fan
- Higher power throughput and improved continuous load rating
- 14-pole design for smooth operation
- Compact and lightweight at 345g
