Jeti MT-125 Temperature Sensor
Jeti MT-125 Temperature Sensor
The JETI MT-125 EX Sensor measures temperature for motors, controllers, batteries, and other model accessories. Data is displayed on a JETIBOX terminal or transmitted wirelessly via the JETI DUPLEX 2.4GHz radio system for real-time monitoring.
The module records minimum and maximum temperatures from two probes and can trigger audio alerts for limit violations. It operates on a 3.5-8.4V supply with an average current draw of 7mA.
Key Features
| Brand | Jeti Model |
| Model | MT-125 EX |
| Product Type | Temperature Sensor |
| Weight | 0.35 oz (10 g) |
| Dimensions | 0.75 x 0.55 x 0.16 in (19 x 14 x 4 mm) |
| Operating Temperature Range | 14°F to 185°F (-10°C to 85°C) |
| Supply Voltage | 3.5 - 8.4 V |
| Average Current Draw | 7 mA |
| Number of Temperature Probes | 2 |
| Measured Temperature Range | -67°F to 257°F (-55°C to 125°C) |
| Measurement Accuracy | 0.5% |
| Compatibility | JETI DUPLEX 2.4GHz radio system, JETIBOX terminal |
How to use
Connect the MT-125 EX module to a JETIBOX terminal, receiver, or Expander of the DUPLEX system. Attach the temperature probes to the devices you wish to monitor. Configure alert thresholds via the JETIBOX interface.
What's included

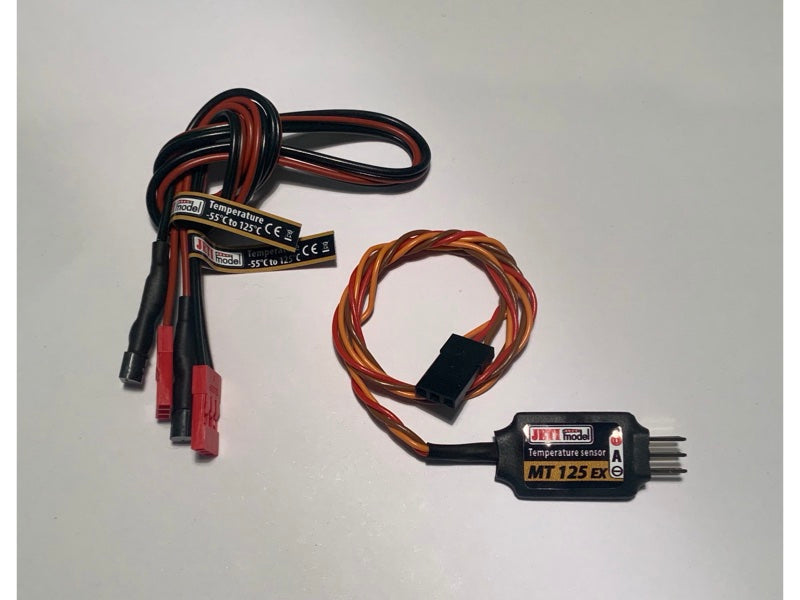

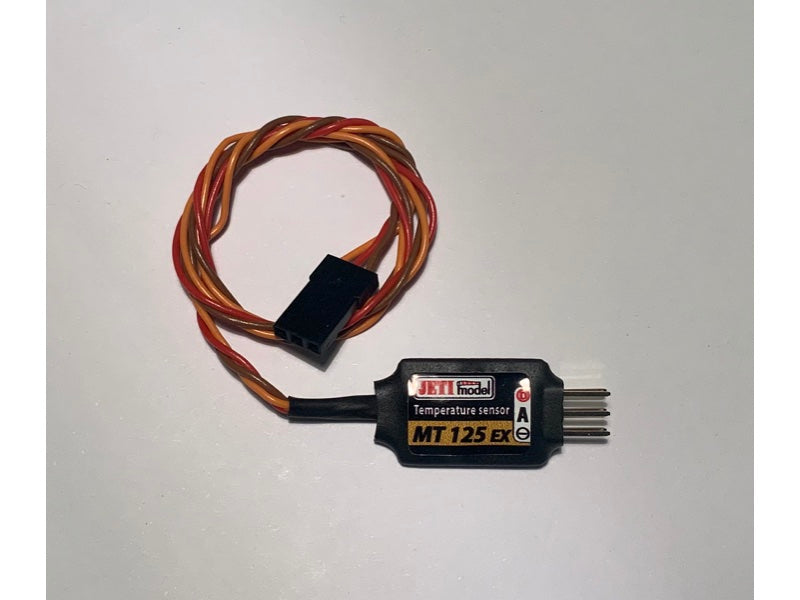

- JETI MT-125 EX Temperature Sensor module

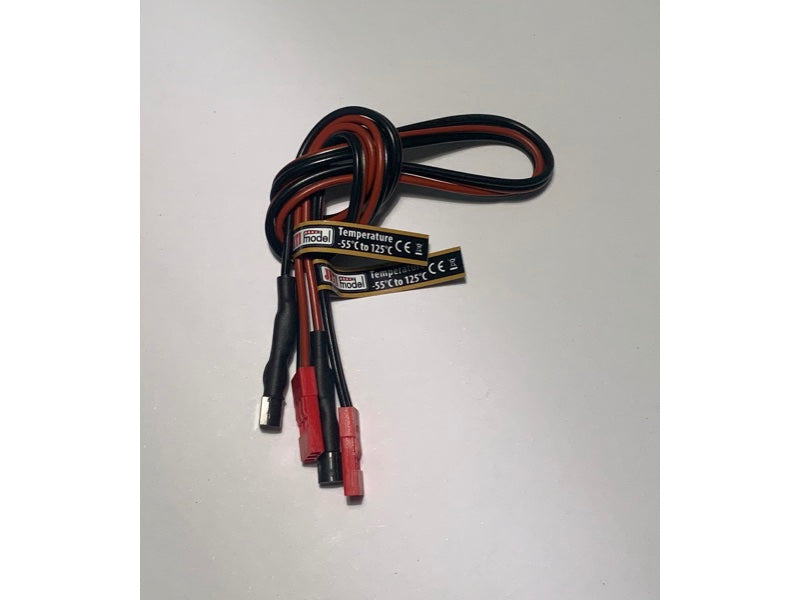

- 2 temperature probes
