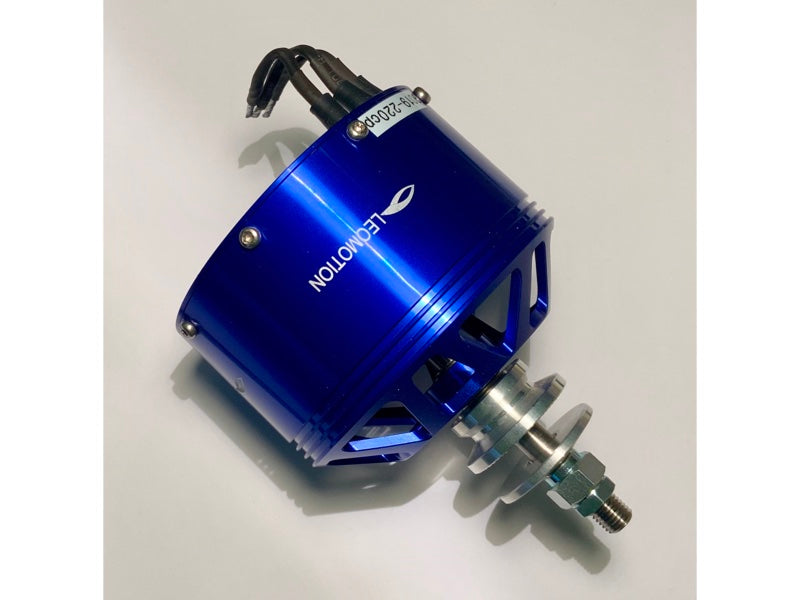

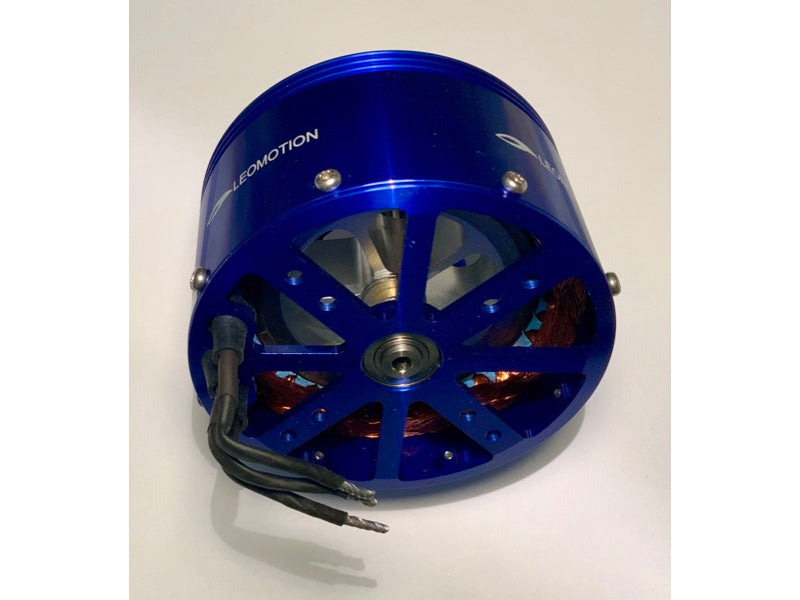

Leomotion L90 F3A Direct Drive Inrunner 218KV
$600.00
Sale price
$600.00
Regular price
This Leomotion L9019-220 competition inrunner features a hand-wound stator and a carbon fiber reinforced rotor for maximum 10,000 RPM. The open motor casing provides optimal cooling, while the 8mm hollow titanium shaft reduces weight without sacrificing strength. High quality ball bearings ensure smooth and reliable operation.
Ideal for F3A competition, this low KV direct drive motor delivers exceptional performance and durability.
Key Features
| Brand | Leomotion |
| Model | L9019-220 |
| Type | Direct Drive Inrunner |
| KV Rating | 218 |
| Case Length | 2.48 in (63 mm) |
| Diameter | 3.54 in (90 mm) |
| Weight | 1.43 lbs (650 g) |
| Stator/Rotor Length | 0.75 in (19 mm) |
| Shaft Diameter | 0.31 in (8 mm) |
| Shaft Length | 0.79 in (20 mm) |
| Mounting Front and Rear | M4 |
| Maximum Voltage | 45V |
| Internal Resistance | 27mΩ |
| Idle Current | 0.9A |
| Power Limit (15s) | 2000W (4000W) |
| Pole Count | 12 |
| Maximum RPM | 10,000 |
Highlights
- Hand-wound stator for precision performance
- Open casing for superior cooling
- Dynamically balanced rotor
- Carbon fiber reinforced rotor
- 8mm hollow titanium shaft
- High quality ball bearings
