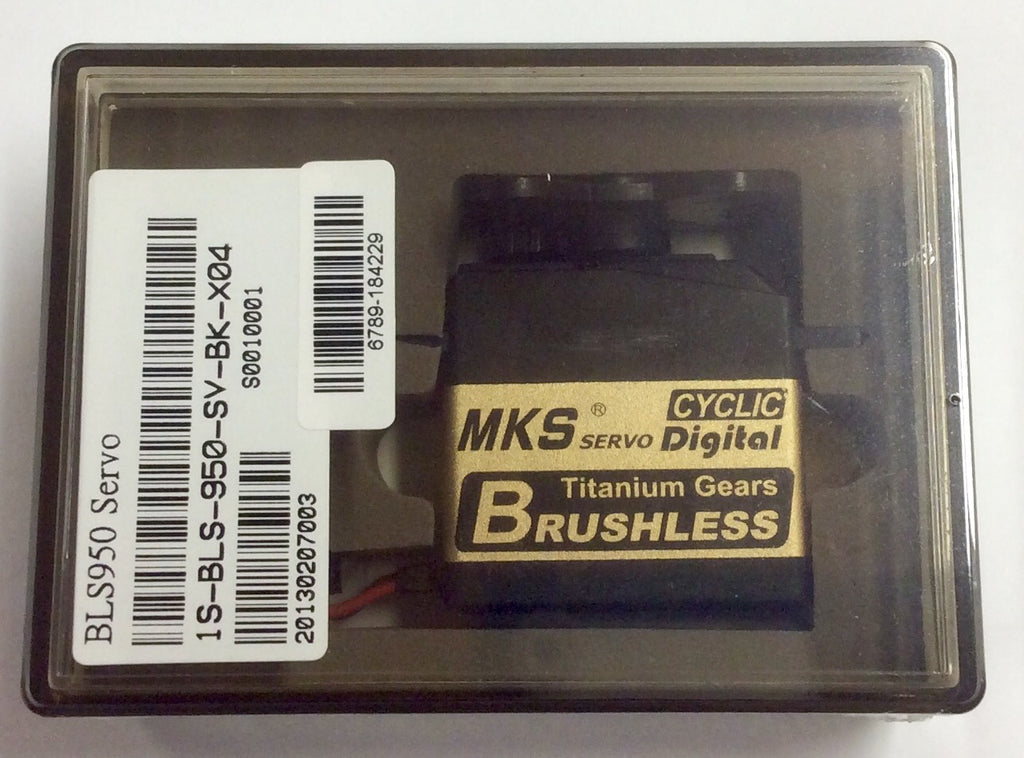

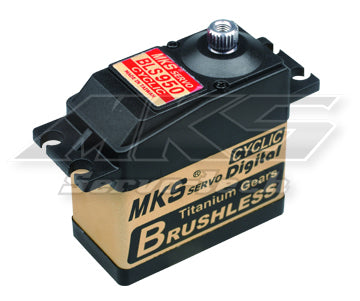

MKS BLS950 Brushless Servo 9.2kg-cm 0.14s
MKS BLS950 Brushless Servo 9.2kg-cm 0.14s
The MKS BLS950 is a high-performance brushless servo designed for F3A pattern aircraft, ideal for aileron and rudder control. It delivers 9.2 kg-cm of torque at 4.8V and 11.5 kg-cm at 6.0V, with fast 0.14s and 0.12s transit speeds respectively. Weighing only 55.8 grams, it features a chrome-titanium alloy gear train and dual ball bearings for durability and precision.
Operating on 4.8 to 6.0V DC, the servo uses a 1520μs / 333Hz working frequency with a minimal 0.0008ms dead band for accurate response. The brushless motor ensures efficient, long-lasting performance in both electric and glow-powered models.
Key Features
| Brand | MKS Servos |
| Model | BLS950 |
| Torque (4.8V) | 9.2 kg-cm |
| Torque (6.0V) | 11.5 kg-cm |
| Speed (4.8V) | 0.14 s |
| Speed (6.0V) | 0.12 s |
| Weight | 55.8 g |
| Dimensions | 40 x 20 x 40 mm |
| Operating Voltage | 4.8 ~ 6.0 V DC |
| Working Frequency | 1520μs / 333 Hz |
| Dead Band | 0.0008 ms (Default) |
| Bearing Type | 2BB |
| Motor Type | Brushless Motor |
| Gear Type | Chrome-Titanium Alloy Gear |
| Application | F3A Pattern Aircraft (Aileron/Rudder) |
| Compatibility | Electric and Glow Powered Models |
Highlights
- Brushless motor for efficiency and long life
- Chrome-titanium alloy gears for durability
- Dual ball bearings for smooth operation
- Ideal for F3A pattern aircraft aileron and rudder
