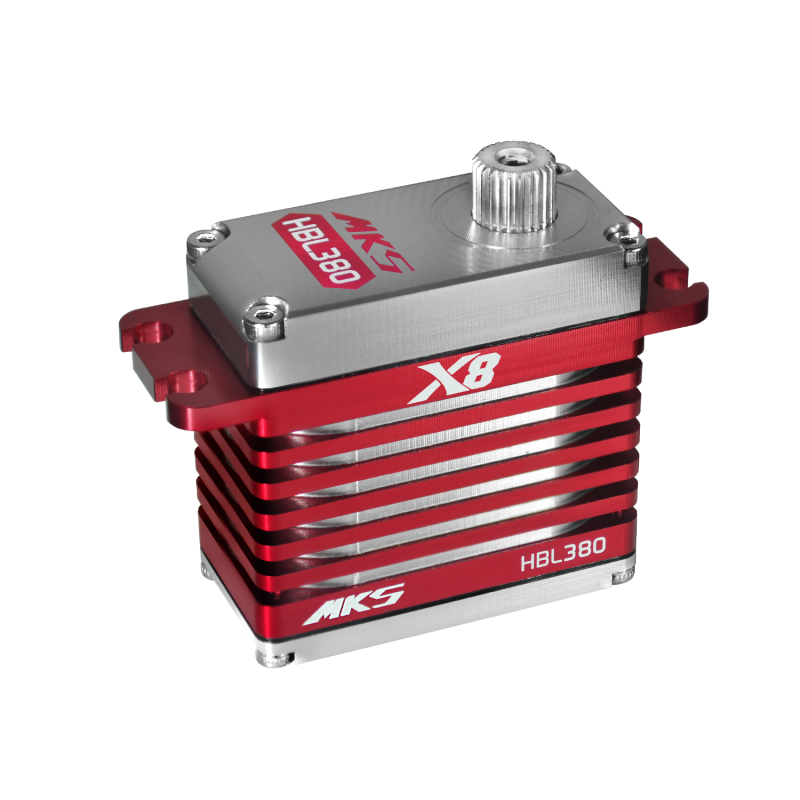

MKS HBL380 Ultra Torque Brushless Servo
MKS HBL380 Ultra Torque Brushless Servo
The MKS HBL380 is an ultra-torque brushless servo designed for large-scale airplanes, jets, 1/8 and 1/5 scale buggies, and 700-800 class helicopter CCPM applications. Its CNC machined metal case provides exceptional cooling, while the Japanese brushless motor delivers incredible efficiency and low power consumption.
Featuring HD 4096 resolution, a 0.0008ms dead band, and extremely strong chrome-titanium alloy gears, this servo offers smooth, fast, and reliable performance. It is specially designed for high voltage 2S LiPo operation, providing superior holding torque and durability for heavy use.
Key Features
| Brand | MKS Servos |
| Model | HBL380 |
| Torque | 31.0 kg-cm (6.0V) / 39.0 kg-cm (7.4V) / 41.0 kg-cm (8.2V) |
| Speed | 0.114 s (6.0V) / 0.092 s (7.4V) / 0.082 s (8.2V) |
| Stall Current (at locked load) | 8.1 A (6.0V) / 10.0 A (7.4V) / 11.0 A (8.2V) |
| Working Voltage | 3.5 - 8.4 V DC (2S LiPo unregulated) |
| Weight | 73.0 g (2.57 oz) |

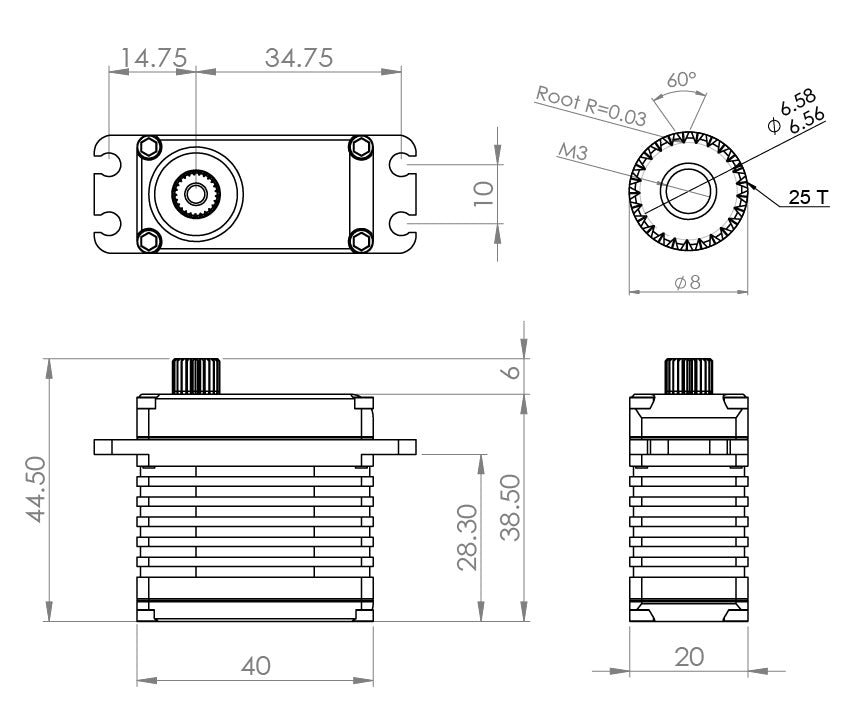

| Dimensions | 40 x 20 x 38.5 mm (1.57 x 0.79 x 1.52 in) |
| Working Frequency | 1520 μs / 333 Hz |
| Dead Band | 0.0008 ms (Default) |
| Bearing | 12 x 8 mm Double Bearings |
| Motor | Japanese High Quality Brushless Motor |
| Gear | Metal Alloy Gear (Chrome-Titanium) |
| Wire Length | 29 cm (11.4 in) |
| Resolution | HD 4096 |
| Case Material | CNC Machined Metal |
Highlights
- Ultra torque brushless motor
- CNC machined metal case for cooling
- HD 4096 resolution
- Chrome-titanium alloy gears
- High voltage 2S LiPo compatible
