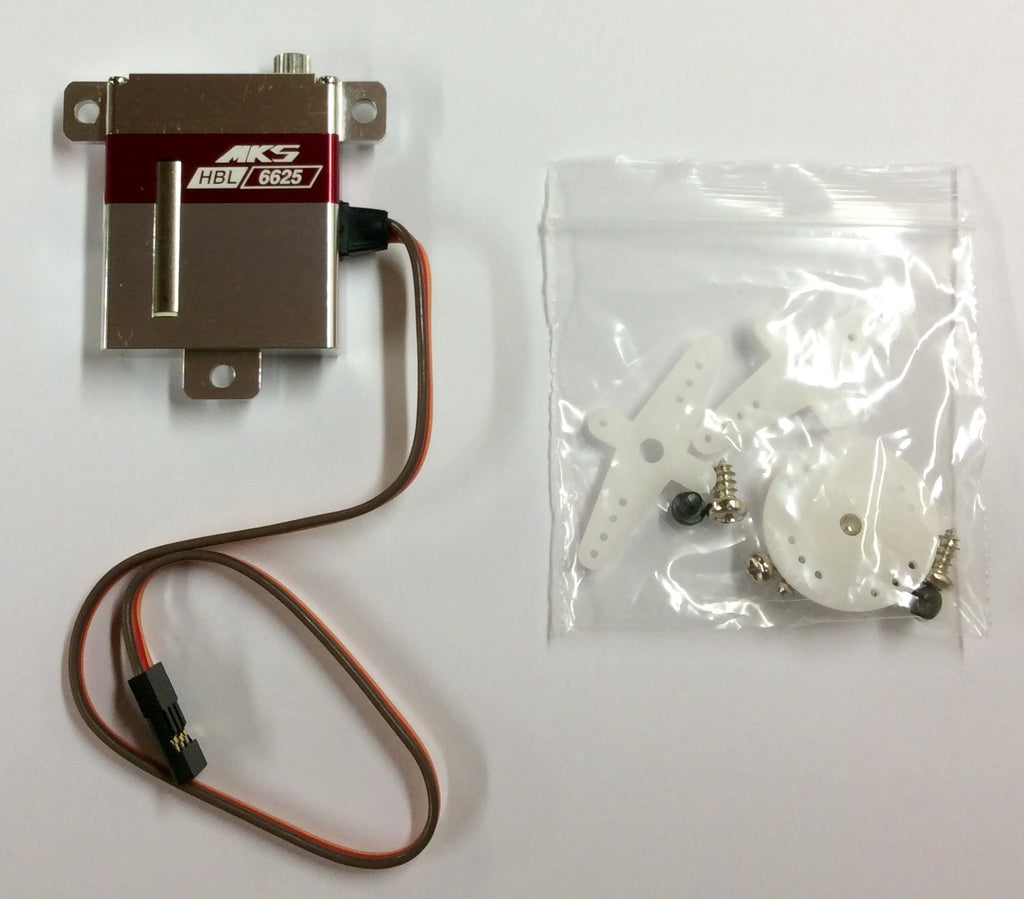

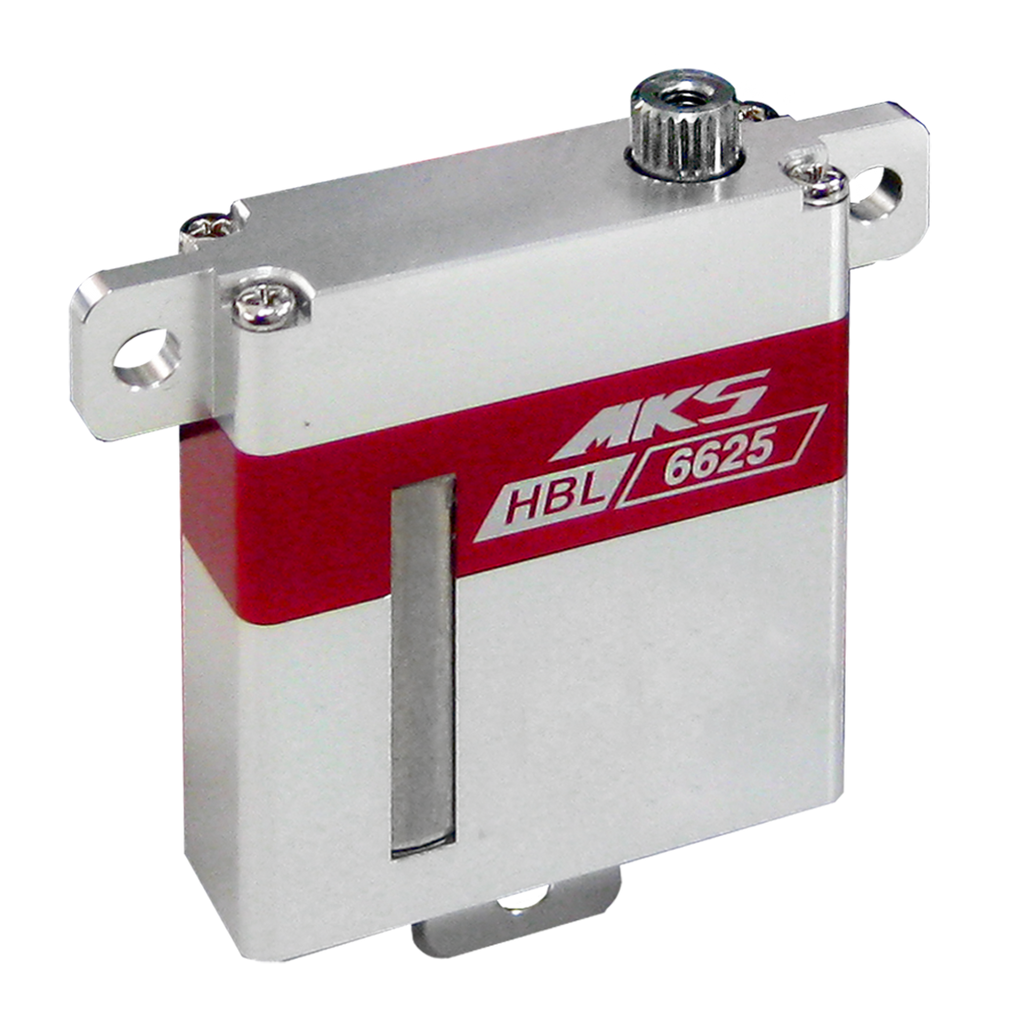

This MKS HBL6625 digital servo delivers high torque for airplane applications, specifically F3A ailerons (EP) and elevators (EP/GP). It features a brushless motor, chrome-titanium alloy gears, and dual ball bearings for precision and durability.
Operating on a wide voltage range of 3.5 to 8.4V DC, it offers torque up to 10.4 kg-cm and speed as fast as 0.11 seconds at 8.2V. The compact dimensions of 30 x 10 x 35.5 mm and light weight of 27.85 grams make it ideal for demanding RC aircraft.
Key Features
| Brand | MKS Servos |
| Model | HBL6625 |
| Type | Digital Servo |
| Application | Airplane (F3A Ailerons EP, Elevators EP/GP) |
| Torque | 8.2 kg-cm (6.0V) / 9.6 kg-cm (7.4V) / 10.4 kg-cm (8.2V) |
| Speed | 0.16 s (6.0V) / 0.127 s (7.4V) / 0.11 s (8.2V) |
| Weight | 27.85 g (0.98 oz) |
| Dimensions | 30 x 10 x 35.5 mm (1.18 x 0.39 x 1.40 in) |
| Working Voltage | 3.5~8.4 V DC (2S LiPo unregulated) |
| Working Frequency | 1520 μs / 333 Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | Dual Ball Bearings |
| Motor | Brushless Motor |
| Gear Material | Chrome-Titanium Alloy |
Highlights
- High torque digital servo for F3A airplanes
- Brushless motor for smooth and efficient operation
- Chrome-titanium alloy gears for strength and durability
- Dual ball bearings for reduced friction
- Wide voltage range: 3.5 to 8.4V DC
