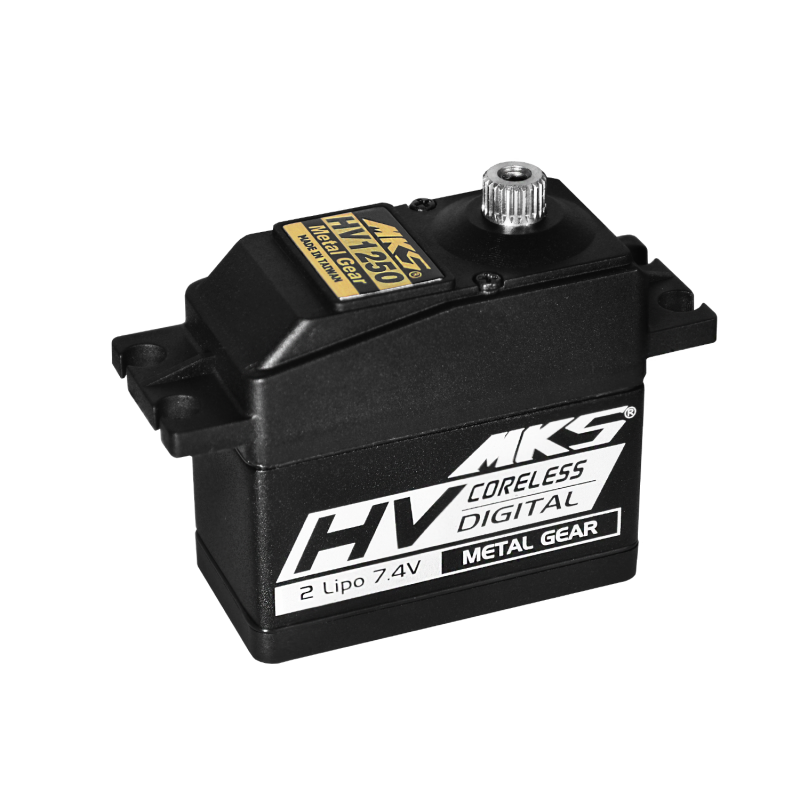

MKS HV1250 High Performance Coreless Servo
MKS HV1250 High Performance Coreless Servo
This MKS HV1250 servo features a Japanese high quality coreless motor for competition-level performance, delivering high torque and incredible efficiency with low power consumption. Its metal alloy gears and middle aluminium alloy case ensure wear resistance and high heat dissipation, while the waterproof bearing provides dust and water protection. Ideal for 1/10 scale buggies and 600-700 heli CCPM applications, it offers precise control with a dead band of 0.0008ms.
Key Features
| Brand | MKS Servos |
| Model | HV1250 |
| Product Type | Servo |
| Torque | 7.8 kg-cm (6.0V), 9.6 kg-cm (6.8V), 10.4 kg-cm (7.4V), 11 kg-cm (8.2V) |
| Speed | 0.075 s (6.0V), 0.066 s (6.8V), 0.061 s (7.4V), 0.054 s (8.2V) |
| Weight | 2.03 oz (57.67 g) |

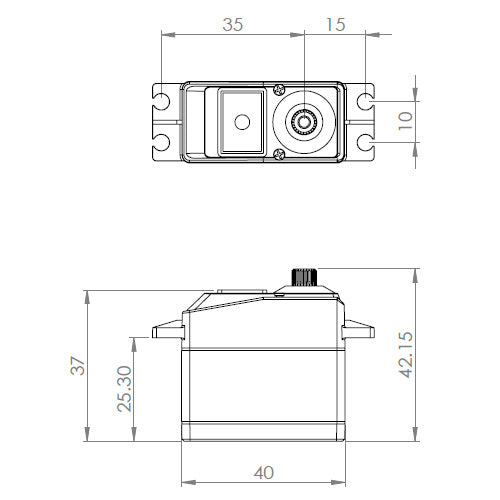

| Dimensions | 1.57 x 0.79 x 1.46 in (40 x 20 x 37 mm) |
| Operating Voltage | 6.0 ~ 8.4 V DC |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.0008ms (Default) |
| Bearing Type | 2BB |
| Motor Type | Japanese High Quality Coreless Motor |
| Gear Type | Metal alloy gear |
| Case Material | Aluminium alloy |
| Waterproof | Yes (waterproof bearing) |
Highlights
- Japanese coreless motor for competition-level performance
- Metal alloy gears for durability
- Aluminium alloy case for heat dissipation
- Waterproof bearing for dust and water resistance
- Three copper bushings for accuracy
