Developed by MKS servo and European stock champion Max Mächler, the HV50P servo delivers high accuracy, a tight dead band, and increased torque for smooth cornering and precise control. Its reduced weight of 18.1 g (0.64 oz) enables faster acceleration and less centrifugal force. The servo features a strong all-metal gear structure, an independent programmable function, and a Futaba spline output shaft for direct pin-to-pin installation without modification.
Key Features
| Brand | MKS Servos |
| Model | HV50P |
| Torque (3.7V) | 3.75 kg-cm / 52.08 oz-in |
| Torque (6.0V) | 6.1 kg-cm / 84.71 oz-in |
| Torque (7.4V) | 7.5 kg-cm / 104.16 oz-in |
| Torque (8.2V) | 8.3 kg-cm / 115.27 oz-in |
| Speed (3.7V) | 0.157 s |
| Speed (6.0V) | 0.097 s |
| Speed (7.4V) | 0.079 s |
| Speed (8.2V) | 0.071 s |
| Weight | 18.1 g (0.64 oz) |

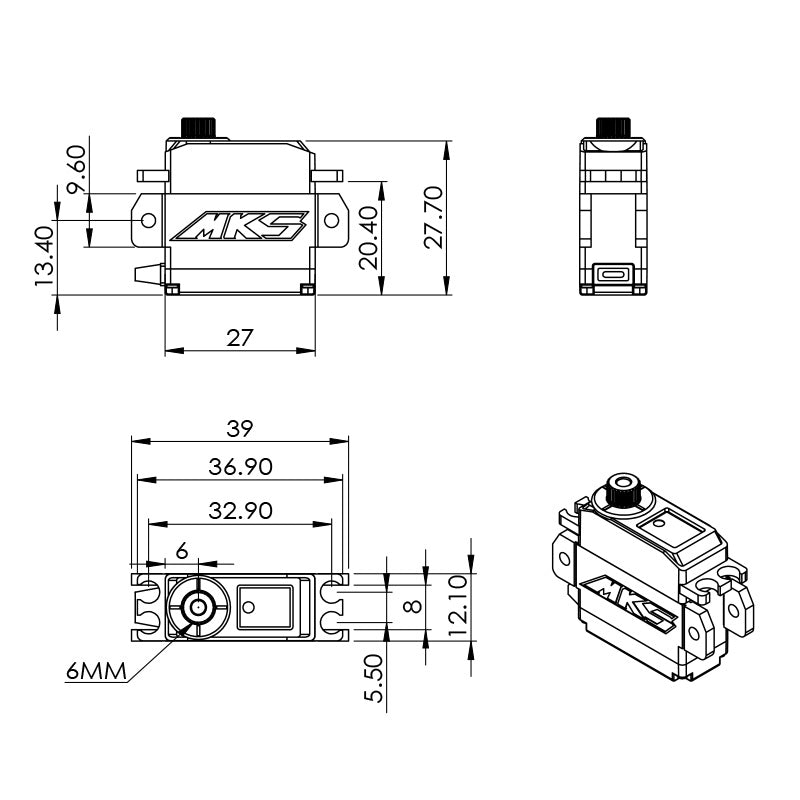

| Dimensions | 27 x 12.1 x 27.7 mm |
| Output Shaft Spline | Futaba |
| Gear Material | All Metal |
| Programmable | Yes |
Highlights
- Developed with European stock champion Max Mächler
- Higher accuracy and dead band for smooth control
- Reduced weight for faster acceleration
- Strong all-metal gear structure
- Futaba spline output shaft for direct installation
