MKS HV6100 Digital Servo for Gliders Airplanes Jets
MKS HV6100 Digital Servo for Gliders Airplanes Jets

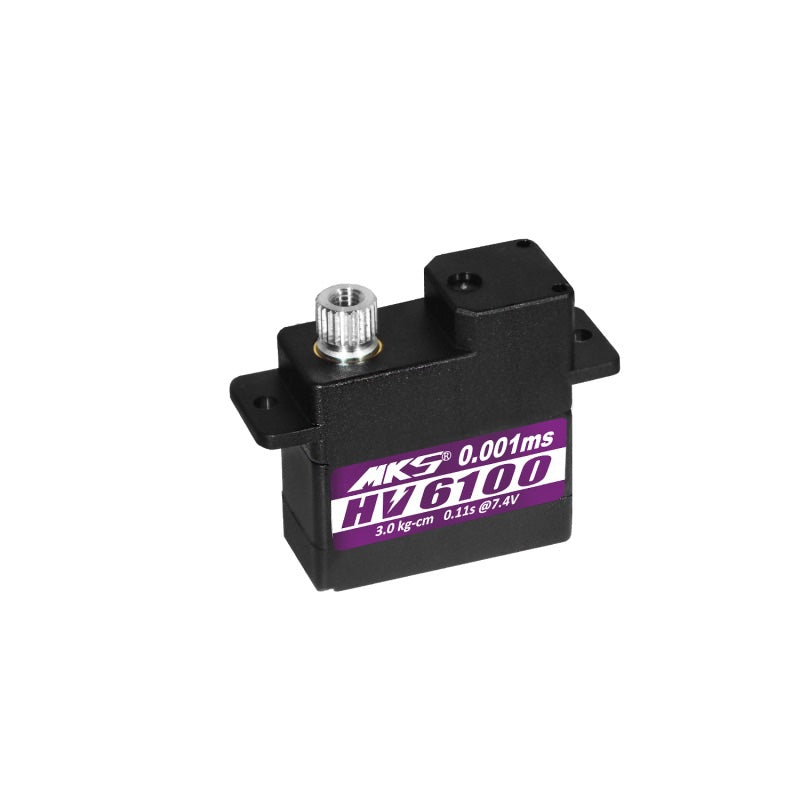

The MKS HV6100 is a lightweight digital servo designed for gliders, airplanes, jets, and electric models, including F3A elevator applications. Weighing only 9.84 grams, it features a coreless motor and metal alloy gears for reliable performance. With an upright footprint, it delivers torque up to 3.4 kg-cm and speeds as fast as 0.10 seconds at 8.2V.
This servo operates on a working voltage of 6 to 8.4V DC and includes one oil retaining bearing along with two jewel bearings for smooth movement. Its dead band is set at 0.001 ms, and it supports a working frequency of 1520μs / 333Hz, making it suitable for precision control in demanding RC applications.
Key Features
| Brand | MKS Servos |
| Model | HV6100 |
| Product Type | Digital Servo |
| Torque | 2.6 kg-cm (6.0V) / 3.0 kg-cm (7.4V) / 3.4 kg-cm (8.2V) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Weight | 9.84 g |

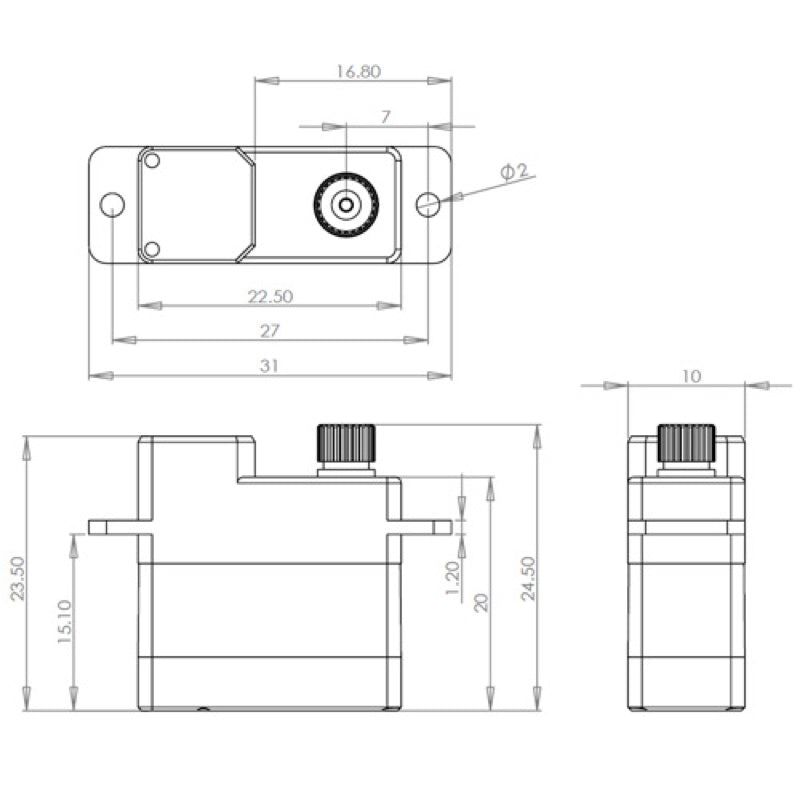

| Dimensions | 22.5 x 10 x 23.5 mm |
| Working Voltage | 6 ~ 8.4 V DC (2S LiPo un-regulated) |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 1 Oil Retaining Bearing, 2 Jewel Bearings |
| Motor | Coreless Motor |
| Gear Material | Metal Alloy |
| Current Draw | 1.0A max (6.0V), 1.2A max (7.4V), 1.3A max (8.2V) |
Highlights
- Lightweight at 9.84 grams
- Coreless motor for smooth operation
- Metal alloy gears for durability
- Upright footprint design
- High torque up to 3.4 kg-cm at 8.2V
