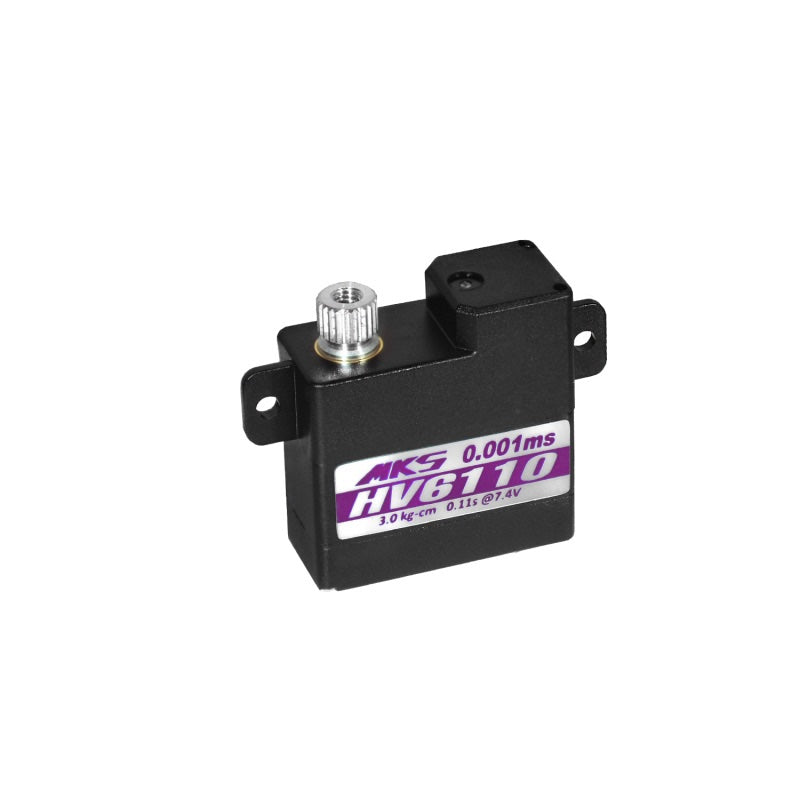

MKS HV6110 Digital Servo for Gliders Airplanes Jets
MKS HV6110 Digital Servo for Gliders Airplanes Jets
This MKS HV6110 digital servo is engineered for gliders, airplanes, jets, and electric models, including F3A elevator applications. It features a lightweight 9.84-gram design with a coreless motor and metal alloy gears for reliable performance.
The servo delivers 2.6 to 3.4 kg-cm of torque and speeds from 0.14 to 0.10 seconds, depending on voltage. It operates on 6 to 8.4V DC and includes one oil retaining bearing and two jewel bearings for smooth operation.
Key Features
| Brand | MKS Servos |
| Product Type | Digital Servo |
| Torque | 2.6 kg-cm (6.0V) / 3.0 kg-cm (7.4V) / 3.4 kg-cm (8.2V) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Weight | 9.84 grams |

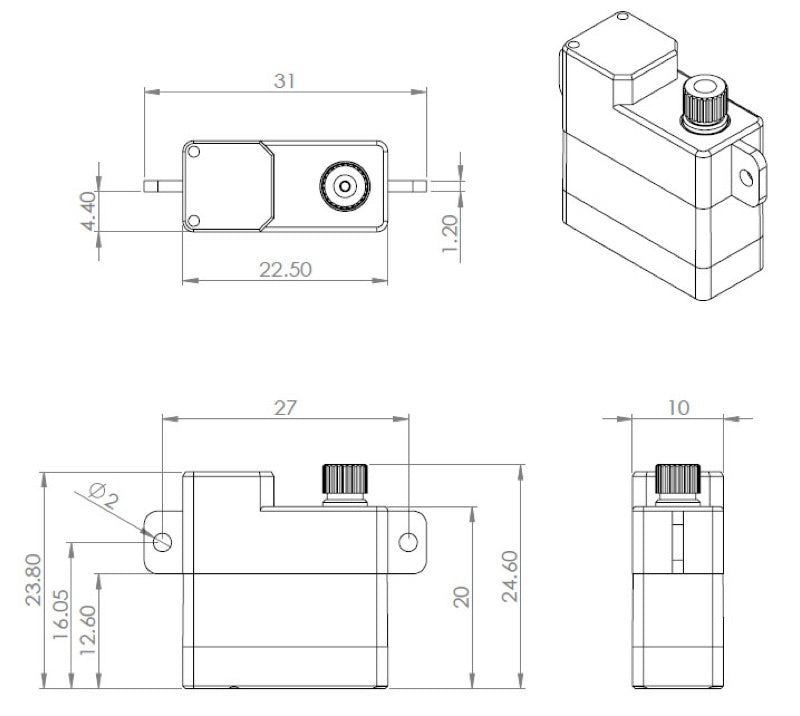

| Dimensions | 22.5 x 10 x 23.5 mm |
| Working Voltage | 6 ~ 8.4 V DC Volts (2S Lipo un-regulated) |
| Working Frequency | 1520μs / 333hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 1 Oil Retaining bearing, 2 Jewel Bearings |
| Motor | Coreless Motor |
| Gear | Metal alloy gear |
| Electric Current Draw | 1.0A max (6.0V), 1.2A max (7.4V), 1.3A max (8.2V) |
Highlights
- Lightweight 9.84g design
- Coreless motor for efficient power
- Metal alloy gears for strength
- Lay-down footprint for easy installation
- High torque up to 3.4 kg-cm at 8.2V
