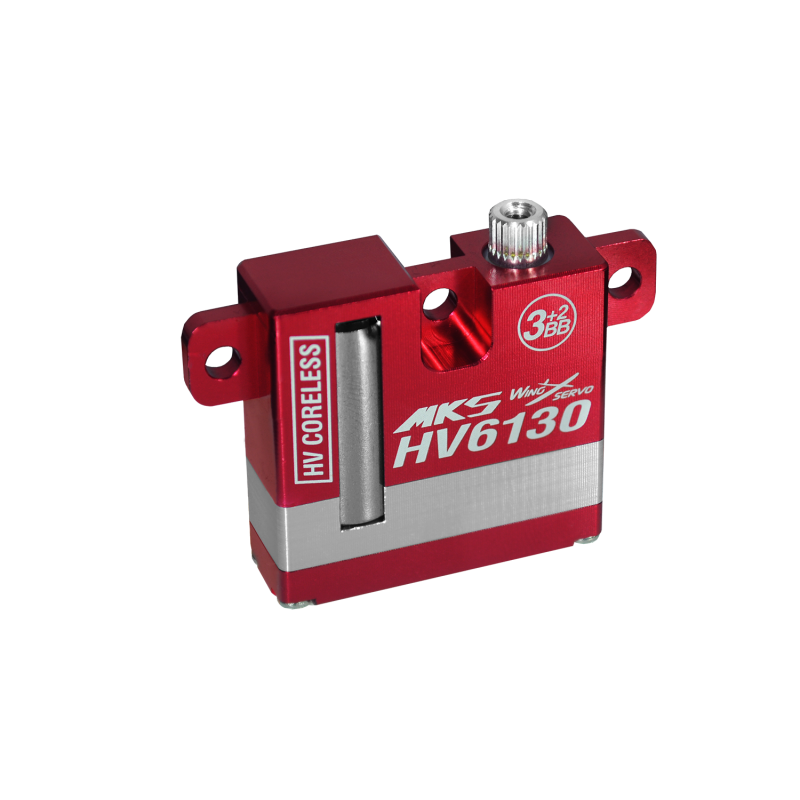

MKS HV6130 High Torque Digital Servo 23g Coreless Motor
MKS HV6130 High Torque Digital Servo 23g Coreless Motor
This MKS HV6130 digital servo delivers high torque for airplane, jet, and electric model applications, particularly suited for F3A elevator use. Its coreless motor and CNC machined aluminum case provide reliable performance in a lightweight 23-gram package.
The servo features a built-in safe system, metal alloy gears, and multiple bearing types for smooth operation. It operates on a wide voltage range from 3.8V to 8.4V, making it compatible with unregulated 2S LiPo batteries.
Key Features
| Brand | MKS |
| Model | HV6130 |
| Torque | 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Weight | 23.0 grams (0.81 oz) |

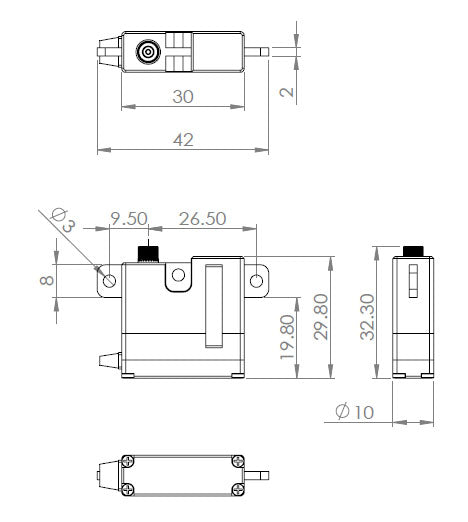

| Dimensions | 1.18 x 0.39 x 1.17 in (30 x 10 x 29.8 mm) |
| Working Voltage | 3.8 ~ 8.4 V DC (2S LiPo un-regulated) |
| Working Frequency | 1520μs / 333 Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2BB, 1 Oil Retaining Bearing, 2 Jewel Bearings |
| Motor Type | Coreless |
| Gear Material | Metal Alloy |
| Current Draw | 1.9A max (6.0V), 2.4A max (7.4V), 2.7A max (8.2V) |
| Case Material | CNC Machined Aluminum |
| Application | Airplane, Jets, Electric Models (F3A Elevators) |
Highlights
- High torque digital servo for precise control
- Coreless motor for fast response
- CNC machined aluminum case for durability
- Lightweight at 23 grams
- Built-in safe system
