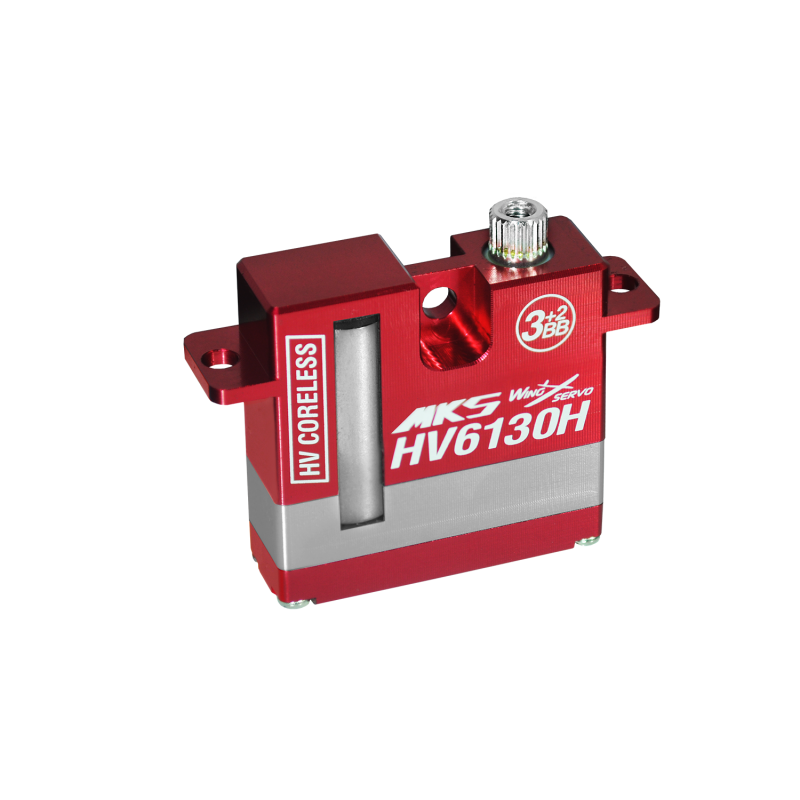

This MKS HV6130H digital servo delivers high torque for airplane, jet, and electric model applications, particularly suited for F3A elevator use. It features a coreless motor and CNC machined aluminum case, weighing only 23 grams for lightweight performance. The built-in safe system and metal alloy gears ensure reliable operation under demanding conditions.
Key Features
| Brand | MKS |
| Model | HV6130H |
| Type | Digital Servo |
| Torque | 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Weight | 23.0 grams |

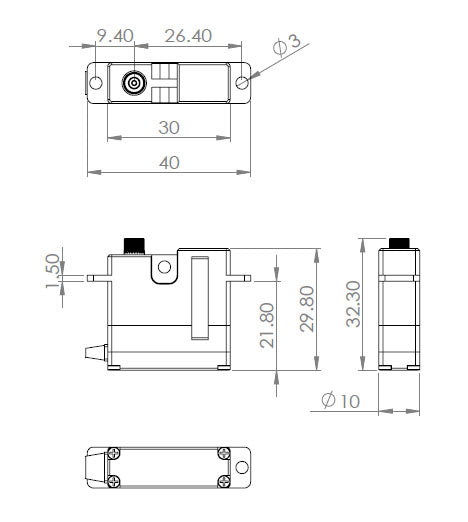

| Dimensions | 30 x 10 x 29.8 mm |
| Working Voltage | 3.8 ~ 8.4 V DC Volts (2S Lipo un-regulated) |
| Working Frequency | 1520μs / 333hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2BB, 1 Oil Retaining bearing, 2 Jewel Bearings |
| Motor | Coreless Motor |
| Gear | Metal alloy gear |
| Electric Current Draw | 1.9A max.(6.0V), 2.4A max.(7.4V), 2.7A max (8.2V) |
| Case Material | CNC machined aluminum |
| Application | Airplane, Jets & Electric Models (F3A for Elevators) |
Highlights
- High torque digital servo for RC airplanes and jets
- Coreless motor for smooth and efficient operation
- CNC machined aluminum case for durability and heat dissipation
- Lightweight at only 23 grams
- Metal alloy gears for strength
