MKS HV737 High Torque Digital Servo for Airplane Jets
MKS HV737 High Torque Digital Servo for Airplane Jets
The MKS HV737 is a high torque digital servo engineered for airplane, jet, and electric models, ideal for F3A ailerons and elevators. It features a 12x20mm coreless motor for high efficiency and durability, a 9mm ultra-high-resolution VR, and a new metal gear set with minimal backlash. The CNC machined aluminum case ensures robust performance, while the chrome-titanium alloy gears provide exceptional strength.
Operating on 6.0 to 8.4V DC (2S LiPo un-regulated), this servo delivers 10.2 kg-cm of torque at 8.2V with a speed of 0.09 seconds. It includes dual ball bearings, a dead band of 0.001 ms, and a 29.5 cm wire length, making it a reliable choice for demanding RC applications.
Key Features
| Brand | MKS Servos |
| Product Type | Standard Digital Servo |
| Torque | 8.3 kg-cm (6.0V) / 9.1 kg-cm (7.4V) / 10.2 kg-cm (8.2V) |
| Speed | 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V) |
| Weight | 38.55 g (1.36 oz) |

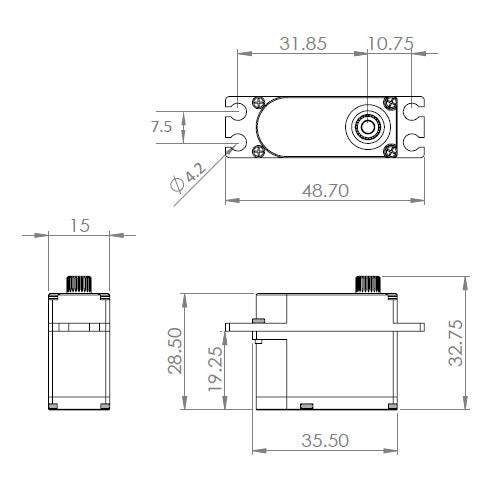

| Dimensions | 35.5 x 15 x 28.5 mm (1.40 x 0.59 x 1.12 in) |
| Working Voltage | 6.0 ~ 8.4 V DC (2S LiPo un-regulated) |
| Working Frequency | 1520μs / 333 Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2BB |
| Motor | Coreless Motor |
| Gear | Chrome-Titanium Alloy |
| Electric Current Draw | 3.1A max (8.2V), 2.8A max (7.4V), 2.3A max (6.0V) |
| Wire Length | 29.5 cm (11.6 in) |
Highlights
- High torque digital servo for airplanes, jets, and electric models
- Coreless motor for efficiency and durability
- CNC machined aluminum case
- Chrome-titanium alloy gears
- Ultra-high-resolution 9mm VR
