PowerBox PBR-14D 14 Channel 2.4GHz Receiver
PowerBox PBR-14D 14 Channel 2.4GHz Receiver

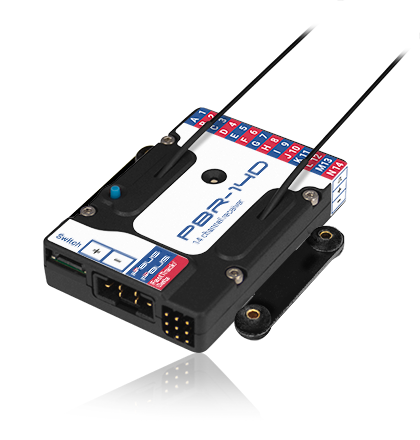

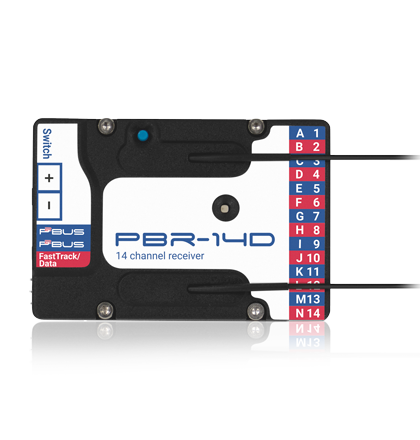

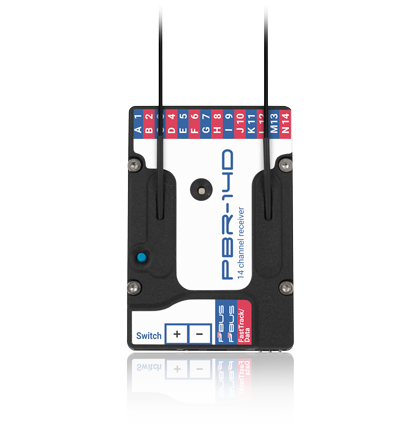

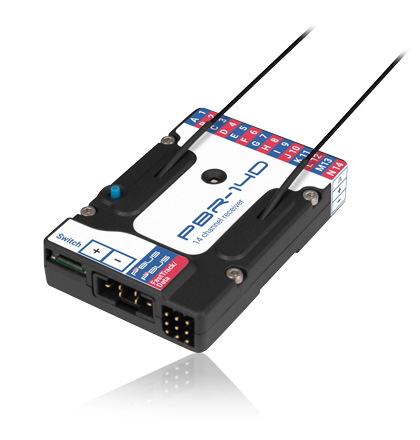

The PowerBox PBR-14D is a 14-channel 2.4GHz receiver featuring two independent redundant receive sections for enhanced reliability. It includes an integral electronic 20A switch operable via a push-button or optional Micro-switch, with power supplied through an MPX high-current socket.
Equipped with dual P²BUS interfaces for servo and telemetry data, an auxiliary Data/FastTrack output, and support for an optional iGyro SAT for integrated gyro functionality, this receiver offers extreme interference rejection and ultra-long range. It also provides real-time telemetry for battery voltage, current, and capacity.
Key Features
| Brand | PowerBox |
| Model | PBR-14D |
| Channels | 14 |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on State) | 105mA |
| Supported RC Systems | ATOM/CORE |
| Programmable Servo Outputs | FastTrack, SRXL, S.BUS |
| Servo Signal Resolution | 4096 Steps |
| Signal Frame Rate | 12ms, 15ms, 18ms, 21ms |
| Integral Gyro System | Optional with iGyro SAT |
| Supported Telemetry Systems | P²-BUS |
| Dimensions | 2.44 x 1.65 x 0.51 in |
| Weight | 1.02 oz |
| Temperature Range | -22°F to +185°F |
| Frequency | 2.4GHz |
| Antenna Length | 11.8 in |
| Connector Type | MPX High Power (20A) |
Highlights
- 14-channel 2.4GHz receiver with dual redundant circuits
- Integral electronic 20A switch
- Extreme interference rejection and ultra-long range
- Real-time telemetry for battery voltage, current, and capacity
- Optional iGyro SAT support
What's included
- PowerBox PBR-14D 14 Channel Receiver
- Two 30cm antennas
- MPX high-current connector
