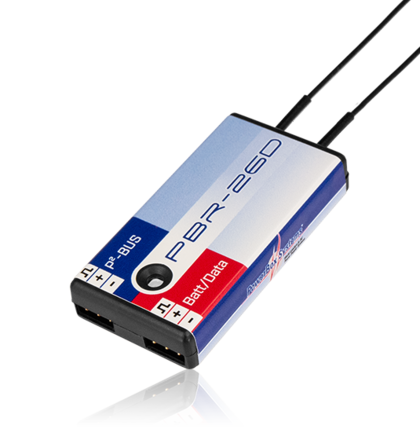

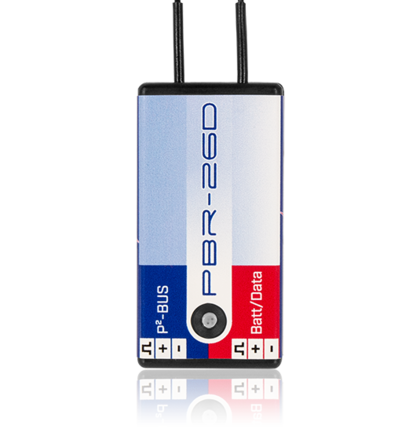

PowerBox PBR-26D 26 Channel 2.4GHz Receiver
PowerBox PBR-26D 26 Channel 2.4GHz Receiver
This satellite receiver features two independent redundant receiver circuits for extreme interference rejection and ultra-long range. It integrates a P²BUS interface for servo and telemetry data, with an auxiliary output configurable as SRXL or S-BUS. Designed for connection to PowerBox power supply systems or flybarless systems, it delivers high-performance real-time telemetry including reception quality and airborne battery voltage. The unit supports 26 channels via PowerBox or FBL systems with 4096-step servo signal resolution. Optional iGyro SAT gyro system integration is available.
Key Features
| Brand | PowerBox |
| Model | PBR-26D |
| Type | Satellite Receiver |
| Operating Voltage | 4.0 - 9.0V |
| Supported RC Systems | CORE |
| Channels | 26 |
| Servo Sockets | 26 (Via PowerBox or FBL Systems) |
| Servo Signal Resolution | 4096 Steps |
| Supported Telemetry Systems | P²BUS |
| Integral Gyro System | Optional with iGyro SAT |
| Dimensions | 1.89 x 0.98 x 0.39 in |
| Weight | 0.35 oz |
| Temperature Range | -22°F to +185°F |
Highlights
- 26 channel 2.4GHz satellite receiver
- Two independent redundant receiver circuits
- Extreme interference rejection and ultra-long range
- P²BUS telemetry and servo bus
- Auxiliary output configurable as S.BUS or SRXL
