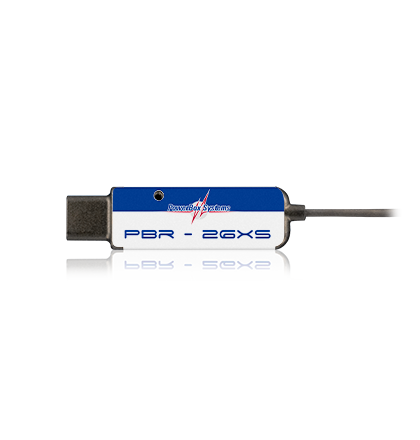

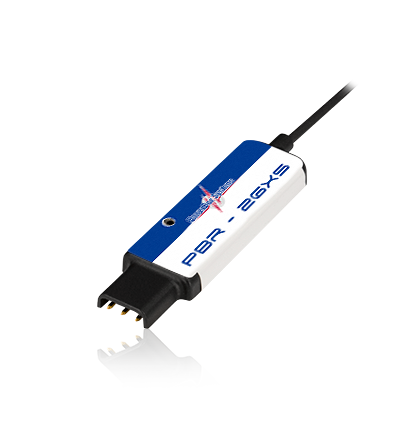

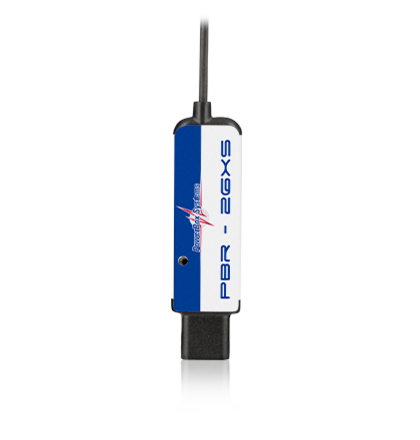

PowerBox PBR-26XS 26 Channel 2.4GHz Receiver
PowerBox PBR-26XS 26 Channel 2.4GHz Receiver
The PowerBox PBR-26XS is an ultra-compact satellite receiver with a single receive section, designed for extreme interference resistance and range. It features a P²BUS interface for servo data and telemetry, and can be connected to any PowerBox power supply.
Output modes are selectable between FastTrack-Out, S.BUS, SRXL, or PPM, allowing it to serve as an expansion receiver for existing systems. Real-time telemetry provides continuous reception quality and battery voltage data.
Key Features
| Brand | PowerBox |
| Model | PBR-26XS |
| Channels | 26 |
| Frequency | 2.4 GHz |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on) | 58mA |
| Supported RC Systems | ATOM/CORE |
| Programmable Servo Outputs | PWM, FastTrack, S.BUS, SRXL, PPM12 |
| Servo Signal Resolution | 4096 Steps |
| Supported Telemetry Systems | P²-BUS |
| Dimensions | 1.81 x 0.51 x 0.16 in |
| Weight | 0.11 oz |
| Temperature Range | -22°F to +185°F |
