PowerBox PBR-5S 5 Channel 2.4GHz Micro Receiver
$105.00
Sale price
$105.00
Regular price

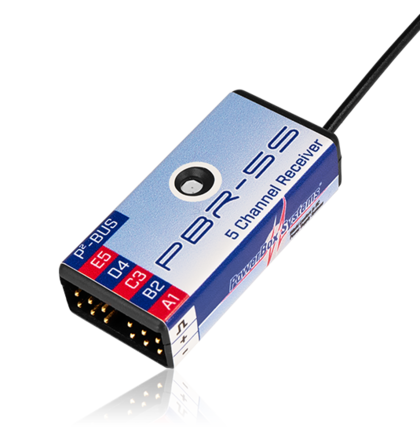

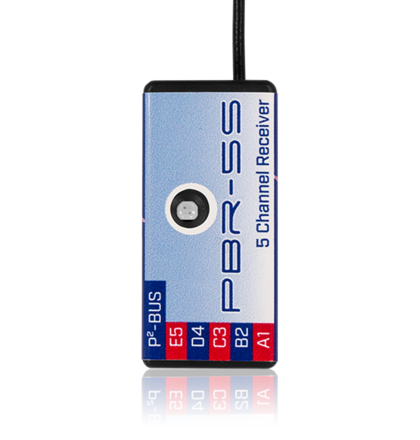

The PowerBox PBR-5S is a compact 5-channel 2.4GHz micro receiver featuring a single receiver circuit and an integral P²BUS interface for servo control and real-time telemetry. Its ultra-small size makes it ideal for small models, while extreme interference rejection and ultra-long range ensure reliable performance. Reception quality and airborne battery voltage are available via telemetry as standard, and all parameters can be set from the transmitter.
Key Features
| Brand | PowerBox |
| Model | PBR-5S |
| Type | 2.4GHz Micro Receiver |
| Channels | 5 |
| Servo Sockets | 5 |
| Operating Voltage | 4.0 - 9.0V |
| Supported RC Systems | CORE |
| Servo Signal Resolution | 4096 Steps |
| Supported Telemetry Systems | P²BUS |
| Dimensions | 1.73 x 0.79 x 0.47 in (44 x 20 x 12mm) |
| Weight | 0.25 oz (7g) |
| Temperature Range | -22°F to +185°F (-30°C to +85°C) |
Highlights
- 5-channel 2.4GHz micro receiver
- Extreme interference rejection
- Ultra-long range
- Integral P²BUS telemetry/servo bus
- High-performance real-time telemetry
- Reception quality and battery voltage telemetry
- Parameters settable from transmitter
