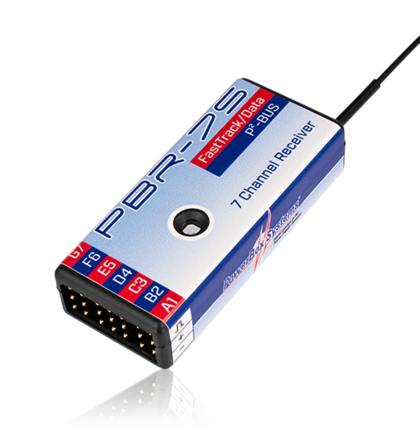

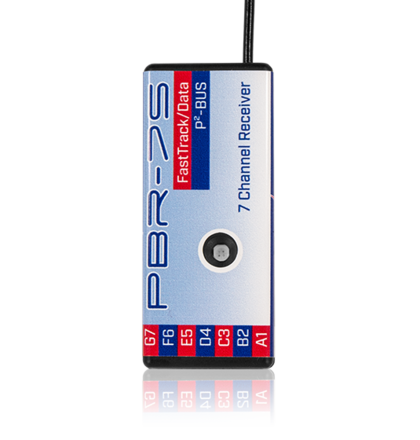

PowerBox PBR-7S 7 Channel 2.4GHz Receiver
PowerBox PBR-7S 7 Channel 2.4GHz Receiver
The PowerBox PBR-7S is a seven-channel 2.4GHz receiver featuring two independent redundant receiver circuits for enhanced reliability. It integrates a P²BUS interface for servo and telemetry data, and an auxiliary output configurable as SRXL bus or channel 8.
With extreme interference rejection, ultra-long range, and high-performance real-time telemetry, this receiver delivers reception quality and airborne battery voltage as standard. Parameters can be set directly from the transmitter, and an optional iGyro SAT gyro system is supported.
Key Features
| Brand | PowerBox |
| Model | PBR-7S |
| Type | 2.4GHz Receiver |
| Channels | 26 (Only 7 sockets) |
| Servo Sockets | 7(8) |
| Operating Voltage | 4.0 - 9.0V |
| Servo Signal Resolution | 4096 Steps |
| Supported RC Systems | CORE |
| Supported Telemetry Systems | P²BUS |
| Integral Gyro System | Optional with iGyro SAT |
| Dimensions | 2.05 x 0.87 x 0.47 in (52 x 22 x 12mm) |
| Weight | 0.42 oz (12g) |
| Temperature Range | -22°F to +185°F (-30°C to +85°C) |
