PowerBox PBS-16 Ultra Precise Pressure Sensor
PowerBox PBS-16 Ultra Precise Pressure Sensor

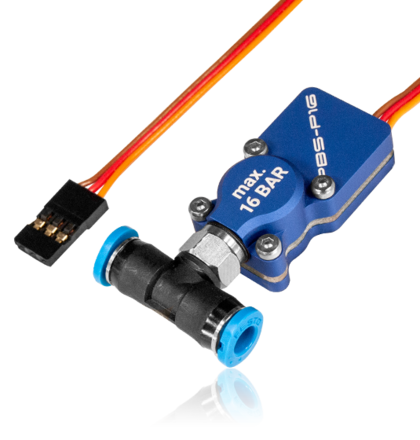

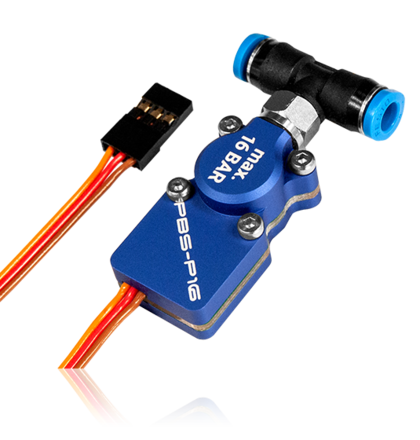

The PowerBox PBS-P16 is an ultra-precise pressure sensor designed for measuring up to 16 Bar (230 psi). Its robust aluminium case houses a digital Mems pressure sensor, and the Festo T-connector installs directly into a 4 mm pressure line.
This sensor is Plug'n'Play with the PowerBox CORE telemetry system and can be configured for Jeti, Futaba, M-Link, and HoTT systems via the PowerBox Terminal program. Compact and lightweight, it offers reliable pressure monitoring for demanding applications.
Key Features
| Brand | PowerBox |
| Model | PBS-P16 |
| Product Type | Pressure Sensor |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on) | max. 20mA |
| Supported RC Systems | PowerBox, Jeti, Multiplex, Graupner, Futaba |
| Dimensions | 1.65 x 0.67 x 0.47 in |
| Weight | 0.49 oz |
| Temperature Range | -22°F to +185°F |
| Maximum Pressure | 16 Bar (230 psi) |
| Material | Aluminium |
| Connector | Festo T-connector (4 mm) |
How to use
Install the Festo T-connector into the 4 mm pressure line to the pressure tank. Connect the sensor to your telemetry system via the appropriate bus. For non-CORE systems, configure using the PowerBox Terminal program.
What's included
- PowerBox PBS-P16 Pressure Sensor
- Festo T-connector
